Place of Origin:
China
Brand Name:
YBX
Certification:
CQC CE CB TUV ROHSE
Model Number:
YX81G1-30A-S
Contact Us

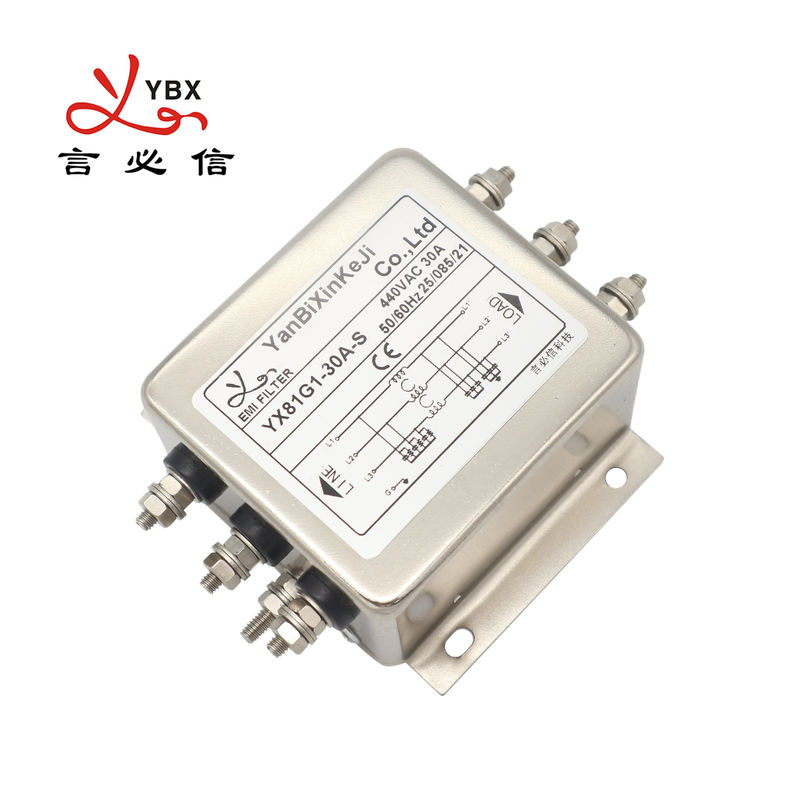

YX81G1 Three Phase Filter 115V/250V 30A M4 Screw Terminal EMI/RFI Filter For Motor Drives
Technical Specification:
| Item | YX81G1 Three Phase Filter |
| Model | YX81G1-30A-S |
| Transfer Function | High Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 6A-100A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC or 2000VAC |
| Maximum Leakage Current | 250VAC/60HZ 1.4mA Max. 440VAC/60HZ 2.5mA Max |
| Lead Time | 3~15 weekday for Low Pass EMI Filter |
Features:
-- Protection against interference of voltage
-- Industry-standard EMC solution for three-phase PDS filtering
-- Customized products according to customer's requirements.
Typical Applications:
-- For photovoltaic systems and industrial applications
-- Three-phase motor drives
-- Energy conversion devices (inverters, converters)
-- Industrial automation equipment
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX81G1-6A | G1 | 6 | Fast-on terminal |
| YX81G1-10A | G1 | 10 | |
| YX81G1-15A | G1 | 15 | M4/M6/M8 Screw |
| YX81G1-20A | G1 | 20 | |
| YX81G1-30A | G1 | 30 | Terminal block |
*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block
Tabulates:
| Model No. | Rated Current @40°C |
Terminal Options* |
Leakage current 440V/50Hz | Electrical Schematic |
Rated Voltage(V) | Operating Frequency(Hz) | ||||||||||||||||||||||||||||||
| YX82G1-1A | 1A | Q | S | T |
<1.0mA |
Fig.1 | 250/440V | 50/60Hz | ||||||||||||||||||||||||||||
| YX82G1-3A | 3A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX82G1-6A | 6A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX82G2-10A | 10A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX82G2-15A | 15A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX82G2-20A | 20A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX82G3-10A | 10A | - | S | T |
<2.0mA |
Fig.1 | ||||||||||||||||||||||||||||||
| YX82G3-20A | 20A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX82G3-30A | 30A | - | S | T |
<5.0mA |
Fig.1 | ||||||||||||||||||||||||||||||
| YX82G5-30A | 30A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX82G5-50A | 50A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX82G5-60A | 60A | - | S | T |
<7.0mA |
Fig.1 | ||||||||||||||||||||||||||||||
| YX82G4-100A | 100A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX82G4-150A | 150A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX82G6-200A | 200A | - | S | T | <10.0mA | Fig.1 | ||||||||||||||||||||||||||||||
YX81G1-30A-S Three Phase Filter Picture:
| Case | A | B | C | D | E | F | G | H | I | J | K | L | ||||||||||||||||||||||||||||
| G1 | 72 | 65 | 39 | 75 | 85 | 35 | 22 | 45 | M4 | M4/M6 | ||||||||||||||||||||||||||||||
| G2 | 98 | 80 | 40 | 95 | 105 | 50 | 20 | 4.5*6.5 | 50 | M4 | M4/M6 | |||||||||||||||||||||||||||||
| G3 | 120 | 100 | 50 | 115 | 130 | 50 | 28 | 4*6 | 60 | M4 | M4/M6 | |||||||||||||||||||||||||||||
| G5 | 150 | 105 | 60 | 120 | 135 | 55 | 35 | 4*6 | 90 | M6 | M8 | |||||||||||||||||||||||||||||
| G6 | 260 | 170 | 100 | 196 | 220 | 85 | 65 | 8*12 | 172 | M8 | M10 | |||||||||||||||||||||||||||||
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | ±0.15 | ||||||||||||||||||||||||||||||
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Shipment:
---Shipping terms: DHL, UPS, FedEx, TNT, EMS
---Port is Shenzhen or as requests.
Factory Pictures:
Exhibition Pictures:
FAQ
1. What is an EMI power filter?
A: EMI power filters are electromagnetic interference mitigating components used to reduce the disturbances in a power line. They are commonly made of inductors and capacitors and are collectively called passive EMI power filters.
2. Why do we need EMI filter?
A: Electromagnetic compatibility (EMC) is an important indicator to measure the quality of electronic products, and it has increasingly become the key in the design of electronic products. In the design process of the power system, the introduction of electromagnetic compatibility design can improve the overall anti-interference ability of the power system, extend the service life of the system, and ensure the safety of use. Therefore, the electromagnetic interference filter is a device that provides good electromagnetic compatibility.
3. Where should I place my EMI filter?
A: A power line or mains EMI filter is placed at the power entry point of the equipment that it is being installed into to prevent noise from exiting or entering the equipment. Essentially, an EMI filter is made up of two basic types of components–capacitors and inductors.
4. How does EMI filter works?
A: EMI, or Electro-Magnetic Interference, is defined as unwanted electrical signals and can be in the form of conducted or radiated emissions. The capacitors provide a low impedance path to divert the high frequency noise away from the input of the filter, either back into the power supply, or into the ground connection.
