YB11E2 Power Line Filter 3A Wire Connection Single Phase Filter For EMC Rectification Test

YB11E2 Power Line Filter 3A Wire Connection Single Phase Filter For EMC Rectification Test

Place of Origin:

China

Brand Name:

YBX

Certification:

CQC UL CB TUV ROHS

Model Number:

YB11E2-3A-W

Contact Us

Request A Quote
Product Details
Product Name:
Wire Connection EMI Filter
Rated Voltage:
110/250VAC
Rated Current:
3A-15A
Insertion Loss:
30-100dB
Temperature Range:
25/100/21
Application:
EMC Chamber
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
5-8 work day
Payment Terms
T/T, L/C
Supply Ability
60000 Pieces/month
Product Description

YB11E2 Power Line Filter 3A Wire Connection Single Phase Filter For EMC Rectification Test



YBX offers the widest selection of EMC/EMI filters in the world. Standardized and customer-specific solutions - with full engineering support - help to meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.



Technical Specification:



Item YB11E2 Power Line Filter
Model YB11E2-3A-W
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 3~15A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max



Features:



-- Rated currents from 1 to 10A



-- General purpose filtering performance



-- Optional medical versions((R5) type)



-- Customized products according to customer's requirements.



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Datacom equipment



-- Office automation equipment



Filter Selection Table:



Part No. Case Rated Currents (A) Output Connections
YB11E2-3A E2 3 Fast-on terminal
YB11E2-6A E2 6
YB11E2-10A E2 10 M4/M6/M8 Screw
YB11E2-15A E2 15
YB11E2-20A E2 20 Wire



YB11E2 Power Line Filter 3A Wire Connection Single Phase Filter For EMC Rectification Test 0*Q: Fast-on 6.35x0.8mm YB11E2 Power Line Filter 3A Wire Connection Single Phase Filter For EMC Rectification Test 1S: Screw lug YB11E2 Power Line Filter 3A Wire Connection Single Phase Filter For EMC Rectification Test 2W: UL1015 18awg



Tabulates:



Model No. Rated Current
@40°C
Terminal Options* Bleeder resistor(optional) Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)

YB12D1-3A 3A Q - W - <0.8mA Fig.1 115/250V 50/60Hz
YB12D1-6A 6A Q - W - Fig.1
YB12D2-6A 6A Q S W - Fig.1
YB12D2-8A 8A Q S W - Fig.1
YB12D2-10A 10A Q S W - Fig.1
YB12D2-15A 15A Q S - - Fig.1
YB12D2-20A 20A Q S - - Fig.1
YB12D3-10A 10A Q S W - Fig.1
YB12D3-15A 15A Q S - - Fig.1
YB12D3-20A 20A Q S - - Fig.1
YB12D4-30A 30A - S - - Fig.1
YB12D5-30A 30A - S - - Fig.1



Electrical Schematic & Mechanical Dimension(Unit: mm)



YB11E2 Power Line Filter 3A Wire Connection Single Phase Filter For EMC Rectification Test 3

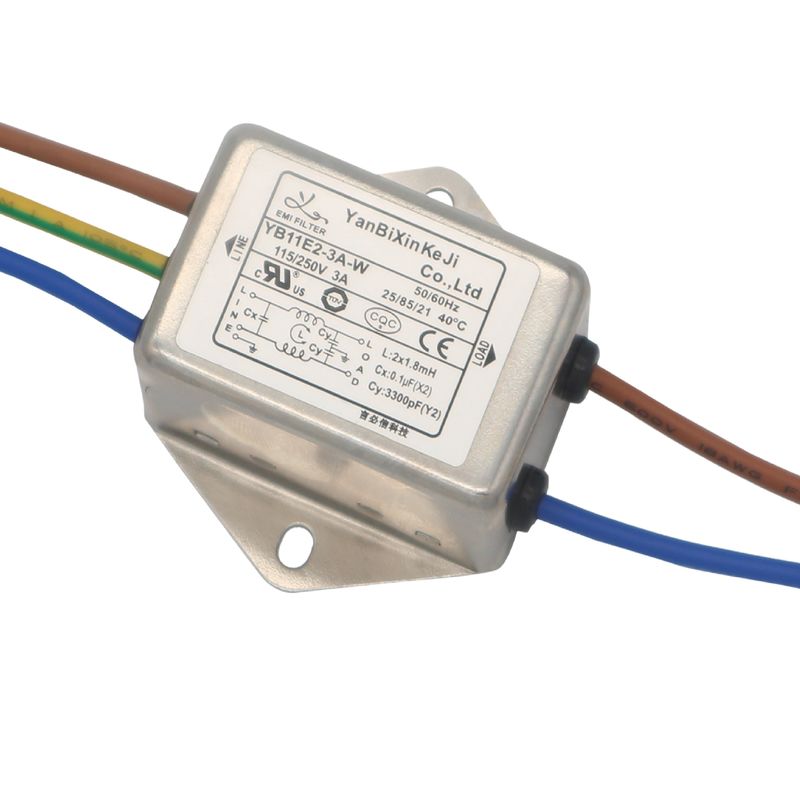

YB11E2-3A-W EMI Filter Picture:



YB11E2 Power Line Filter 3A Wire Connection Single Phase Filter For EMC Rectification Test 4


Insertion loss table(In 50ohm system according IEC/CISPR No.17)



YB11E2 Power Line Filter 3A Wire Connection Single Phase Filter For EMC Rectification Test 5
