Place of Origin:
china
Brand Name:
YBX
Certification:
CE ROHS ISO9001
Model Number:
YB24D2-6A-W
Contact Us
| Product name | DC EMI Filter |
| Line to Line | 2200VDC |
| Line to Ground | 2450VDC |
| Transfer Function | Low Pass |
| Mounting Type | Surface Mount |
| Tolerance | -20%, +80% |
| Frequency - Operating | 50/60Hz |
| Voltage - Rated | 115V/250V |
| Insertion Loss | 30~90db |
| D/C | 400Hz |

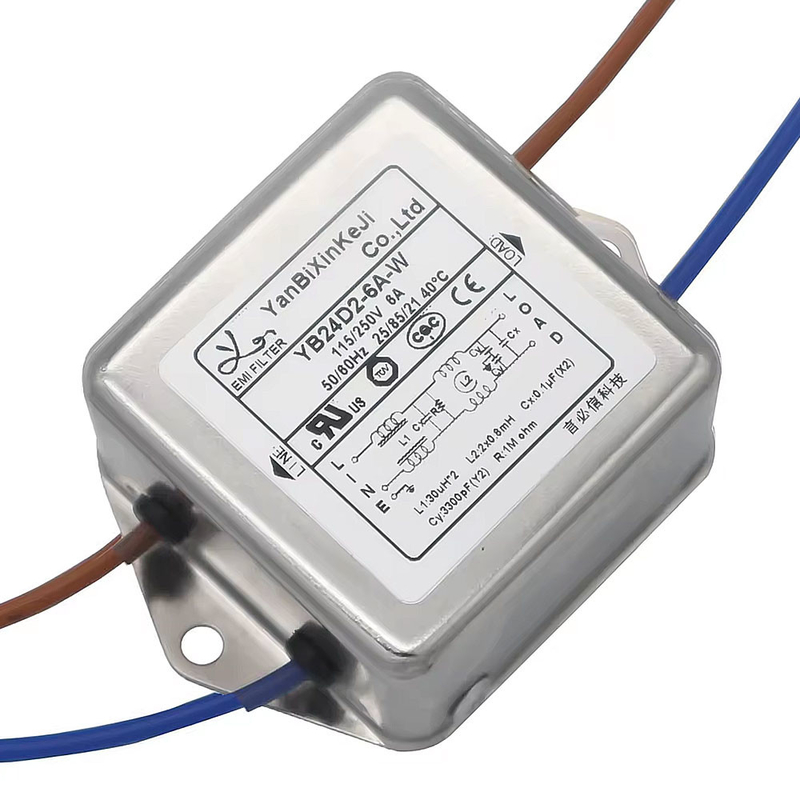

The product information of the DC EMI filter is as follows:
Place of Origin is Guangdong, China; Brand Name is YBX; Model Number is YB24D2-6A-W; Rated Current is 1A-30A; Rated Voltage is 12V; Environmental Temperature is 40°C; Operating Frequency is 50/60Hz; Line to Line is 2200VDC; Line to Ground is 2450VDC; Certificate includes CE, ROHS, ISO9001; MOQ is 1PCS; Type is EMI Filter; Transfer Function is Low Pass; Impedance is 50Ω; Filter Type is Single Phase; Mounting Type is Surface Mount; Tolerance is -20% to +80%; Description is Two-Stage EMI Filter; Output Type is Wire; Rated Voltage is 115V/250V; Current Rating (Max) is 30A; Voltage Rating - AC is 115V/250V; Insertion Loss is 30~90dB; DC Resistance (DCR) (Max) is 50Ω; Nominal Center Frequency is 10kHz~30MHz; Termination Style is Wire; 3dB Bandwidth is 25MHz; Input Impedance is 50Ω; Voltage Rating - DC is 115V/250V; Resistance - Channel (Ohms) is 50Ω; Stopband Attenuation is 20~100dB; Current is 1A-30A; Voltage - Rated DC is 115V/250V.
Our Company:
Customization: With a dedicated professional R&D team, our goal is to ensure that customers avoid incurring any additional expenses, while receiving tailored solutions that meet their specific needs.
Listed Company: As a recognized national high-tech enterprise, we offer brand assurance, reliable quality, and hold relevant product certifications to guarantee the reliability of our products.
Rectification Testing: We have established partnerships with top scientific research laboratories to provide complimentary EMC rectification technical support, samples, and free conduction tests, ensuring the optimal performance of our products.
Large-Scale Production: Through the use of automation technology for large-scale production, we are able to offer competitive pricing, excellent service, and fast delivery. Additionally, we provide a comprehensive after-sales service package, including free replacements within three months, free maintenance within six years, and lifelong maintenance for our products.
Our Advantages:
Quality Assurance: Certified with ISO9001:2015 quality management system, as well as cUL, TUV, CQC, CE, and ROHS certifications to ensure product quality and compliance.
Customized Solutions: Backed by a professional R&D team dedicated to providing tailored solutions without any additional costs to customers.
Industry Recognition: Recognized as a national high-tech enterprise, offering brand assurance, reliable quality, and holding relevant product certifications.
Technical Expertise: Collaborating with top scientific research laboratories to offer free EMC rectification technical support, samples, and conduction tests for optimal product performance.
Efficient Production: Leveraging automation technology for large-scale production to provide competitive pricing, excellent service, and fast delivery. Additionally, we offer free replacements within three months, free maintenance within six years, and lifelong maintenance to ensure customer satisfaction.
Send your inquiry directly to us
