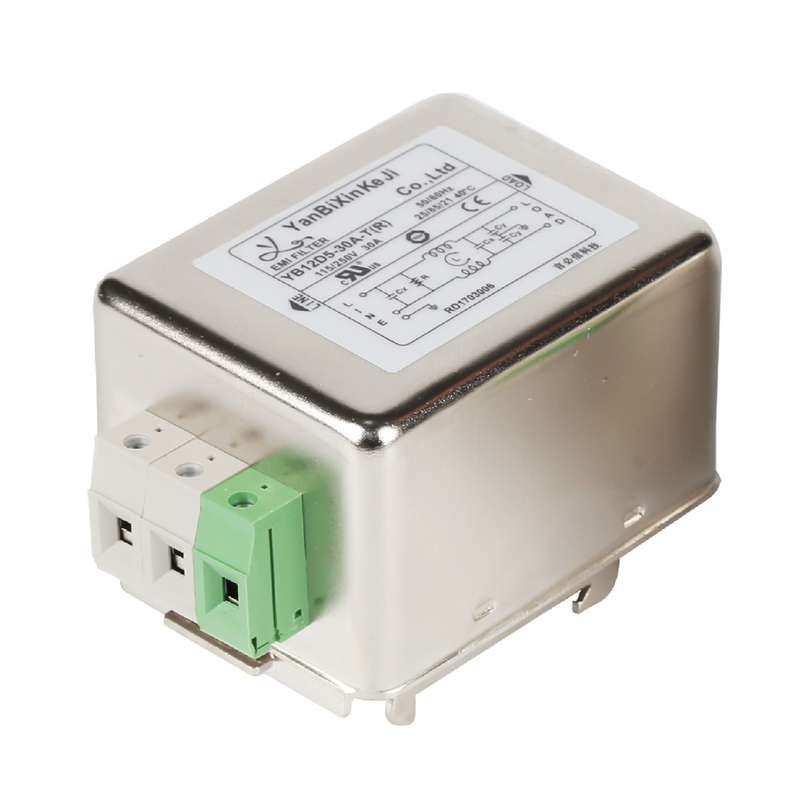

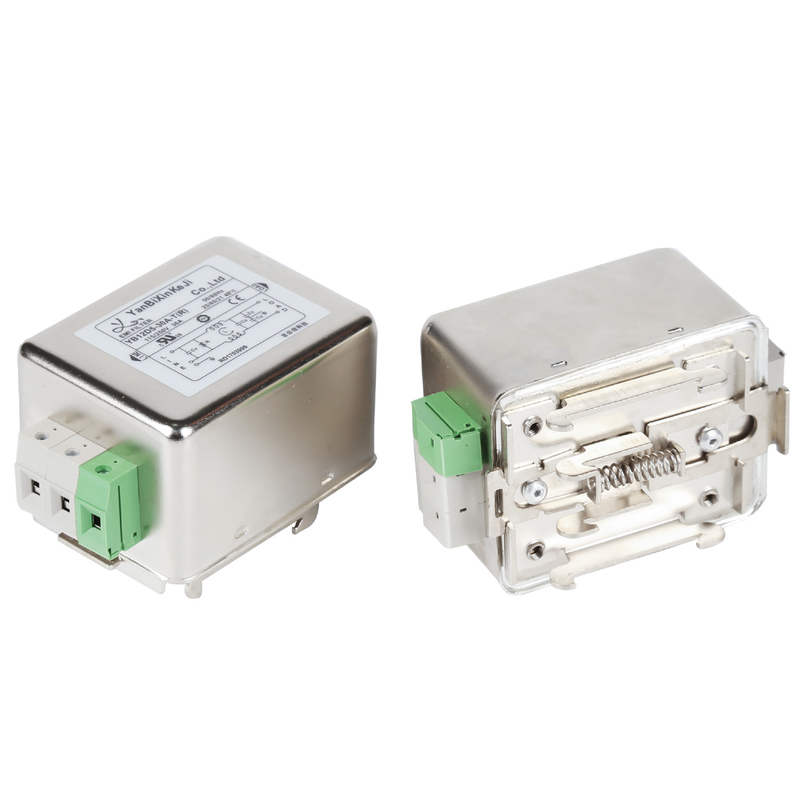

DIN Rail AC Power Noise Filter For Office Automation Datacom Equipment

Place of Origin China
Brand Name YBX
Certification cUL, TUV, CQC, CE, ROHS
Model Number YB35D4-10A-S
Minimum Order Quantity 50pcs
Price Negotiable
Packaging Details 56.5*28.5*22.5cm
Delivery Time 20-25 days
Payment Terms T/T, L/C
Supply Ability 10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Product Details
Item DIN Rail Filter Rated Current 1A-50A
Rated Voltage 125V/220VAC Environmental Temperature 40°C
Operating Frequency 50/60HZ Line To Line 1450DVC
Certificate ISO9001 CE TUV CQC CUL ROHS Port Shenzhen
High Light

ac power line filter

,

ac power supply filter

Leave a Message
Product Description



DIN Rail Ac Power Noise Filter for Office Automation and Datacom Equipment



Technical Specification:



Item DIN Rail Power line Filter
Model DIN Rail Power line Filter YB-D
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~50A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 50pcs
Price USD3.65~28.8/Meter
Lead Time 5~15 weekday



Features:



-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device



-- Various terminal options allow you to select



-- There are a variety of parts and combinations to meet different customer's EMC tests.



-- Customized products according to customer's requirements.



Typical Applications:



-- Small and medium-sized machines and industrial equipment



-- Single-phase variable speed motor drives,inverters and converters

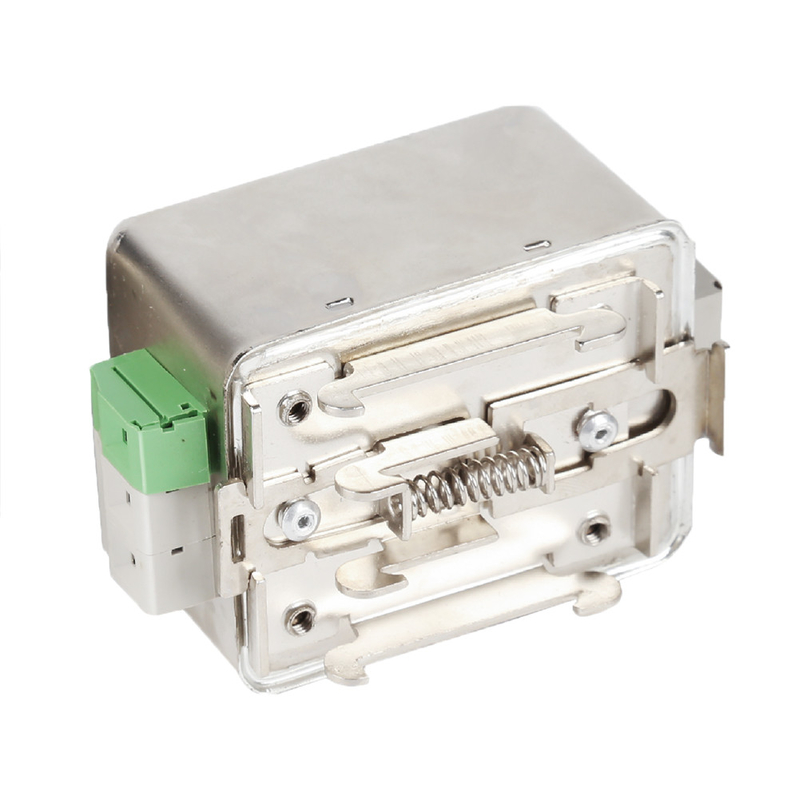

-- DIN-rail mounting filter versions are used to the panel building and electrical cabinets



-- Office automation and datacom equipment



Rule of Nomination:



YB    11    D3   -   10A    -     Q            (  R  )

            ¦        ¦               ¦              ¦                   ¦ ¦

     circuit  case     current connection optional



Tabulates:



Model No. Rated Current
@40°C

Terminal Options*

Leakage current 250V/50Hz Electrical Schematic

Rated Voltage(V)


YB11D3-1A 1A Q S T















































<0.8mA

Fig.1















































115/250V

YB11D3-2A 2A Q S T Fig.1
YB11D3-3A 3A Q S T Fig.1
YB11D3-4A 4A Q S T Fig.1
YB11D3-6A 6A Q S T Fig.1
YB11D3-8A 8A Q S T Fig.1
YB11D3-10A 10A Q S T Fig.1
YB11D3-15A 15A Q S T Fig.1
YB11D3-20A 20A Q S T Fig.1
YB11D4-1A 1A Q S T Fig.1
YB11D4-2A 2A Q S T Fig.1
YB11D4-3A 3A Q S T Fig.1
YB11D4-4A 4A Q S T Fig.1
YB11D4-6A 6A Q S T Fig.1
YB11D4-8A 8A Q S T Fig.1
YB11D4-10A 10A Q S T Fig.1
YB11D4-15A 15A Q S T Fig.1
YB11D4-20A 20A Q S T Fig.1
YB11D5-1A 1A Q S T Fig.1
YB11D5-2A 2A Q S T Fig.1
YB11D5-3A 3A Q S T Fig.1
YB11D5-4A 4A Q S T Fig.1
YB11D5-6A 6A Q S T Fig.1
YB11D5-8A 8A - S T Fig.1
YB11D5-10A 10A - S T Fig.1
YB11D5-15A 15A - S T Fig.1
YB11D5-20A 20A - S T Fig.1
YB11D5-25A 25A - S T Fig.1
YB11D5-30A 30A - S T Fig.1
YB12D3-1A 1A Q S T Fig.2
YB12D3-2A 2A Q S T Fig.2
YB12D3-3A 3A Q S T Fig.2
YB12D3-4A 4A Q S T Fig.2
YB12D3-6A 6A Q S T Fig.2
YB12D3-8A 8A Q S T Fig.2
YB12D3-10A 10A Q S T Fig.2
YB12D3-15A 15A Q S T Fig.2
YB12D3-20A 20A Q S T Fig.2
YB12D4-1A 1A Q S T Fig.2
YB12D4-2A 2A Q S T Fig.2
YB12D4-3A 3A Q S T Fig.2
YB12D4-4A 4A Q S T Fig.2
YB12D4-6A 6A Q S T Fig.2
YB12D4-8A 8A Q S T Fig.2
YB12D4-10A 10A Q S T Fig.2
YB12D4-15A 15A Q S T Fig.2
YB12D4-20A 20A Q S T Fig.2
YB12D5-1A 1A Q S T Fig.2
YB12D5-2A 2A Q S T Fig.2
YB12D5-3A 3A Q S T Fig.2
YB12D5-4A 4A Q S T Fig.2
YB12D5-6A 6A Q S T Fig.2
YB12D5-8A 8A - S T Fig.2
YB12D5-10A 10A - S T Fig.2
YB12D5-15A 15A - S T Fig.2
YB12D5-20A 20A - S T Fig.2
YB12D5-25A 25A - S T Fig.2
YB12D5-30A 30A - S T Fig.2





DIN Rail AC Power Noise Filter For Office Automation Datacom Equipment 0*Q: Fast-on 6.35x0.8mm            DIN Rail AC Power Noise Filter For Office Automation Datacom Equipment 1  S: Screw lug           DIN Rail AC Power Noise Filter For Office Automation Datacom Equipment 2 T: Terminal block



Electrical schematic:

DIN Rail AC Power Noise Filter For Office Automation Datacom Equipment 3

                                                                      Fig.1












                                                                Fig.2





Mechanical Dimension(Unit: mm)



DIN Rail AC Power Noise Filter For Office Automation Datacom Equipment 5



Case A B C D E F G H I J K L
D3 63 51 29 75 85 25 10 5     6.3*0.8
D4 63 51 38 75 85 27 15.5 4.5     6.3*0.8
D5 73 56 44.5 87 98 30 16 4.5 4.2*6.2   6.3*0.8
Tolerances ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.15 ±0.15   ±0.15 ±2



Insertion loss table(In 50ohm system according IEC/CISPR No.17)

           Common mode                            -------- differential mode



                          8A                                                                              10A

DIN Rail AC Power Noise Filter For Office Automation Datacom Equipment 6                     DIN Rail AC Power Noise Filter For Office Automation Datacom Equipment 7



                         20A                                                                                30A

DIN Rail AC Power Noise Filter For Office Automation Datacom Equipment 8                     DIN Rail AC Power Noise Filter For Office Automation Datacom Equipment 9
