Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter

Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter

ac power line noise filter

ac power supply filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB12F2-50A-T(R)

Contact Us

Request A Quote
Product Details
Item:
YB12F Series Emi Filter
Rated Current:
1A-50A
Case:
Metal Case
Brand:
YBX
Certificate:
ISO9001 CUL TUV CQC CE ROHS
Port:
SHENZHEN
Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Product Description

Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter



YB12F2-50A-T(R) Power Line Filter:



YB12F2-50A-T(R) is a single phase emi filter designed to reduce or eliminate possible electromagnetic interference in the power system.

Power line filters usually consist of a combination of capacitors, inductors and resistors arranged in a specific configuration. The exact configuration will depend on the specific application and the type of interference that needs to be filtered out.



Feature Of YB12F Series Emi Filter:

1. Frequency range: EMI filters are designed to operate within specific frequency ranges, typically ranging from 150KHz to 30MHz. The frequency range will depend on the specific application and the types of interference that need to be filtered out.

2. Insertion loss: EMI filters cause some signal power loss, known as insertion loss. Insertion loss usually ranges from 30dB to 90dB. The level of insertion loss will again depend on the specific filter design and application.

3. Voltage rating: EMI filters are designed to operate in a specific voltage range, and our filter range from 115V to 250V. The voltage rating will depend on the specific application and the maximum voltage that the filter will be exposed to.


Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Building automation



-- Office automation and datacom equipment



Rule of Nomination:



YB--------12----------F2---------50A------------T-----------( R )

                ¦               ¦               ¦                  ¦                ¦ ¦

            circuit     case      current    connection   optional



Technical Specification:



Item Power line Filter
Model EMI Filter YB12F2-50A-T
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 30~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~50A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 1.0mA Max
MOQ 50pcs
Price USD3~21.8/Meter
Lead Time 5~15 weekday

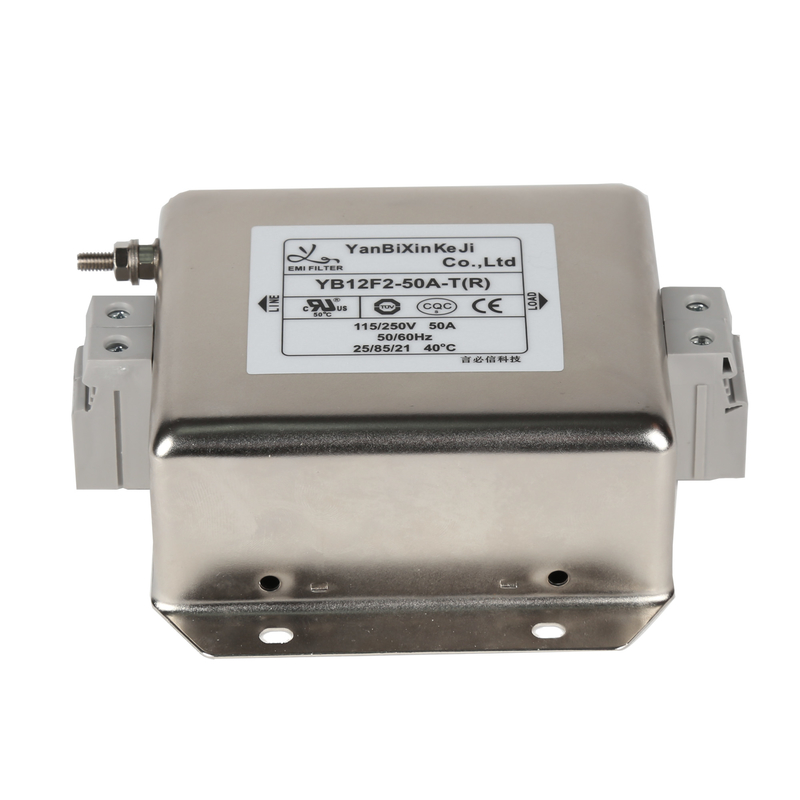

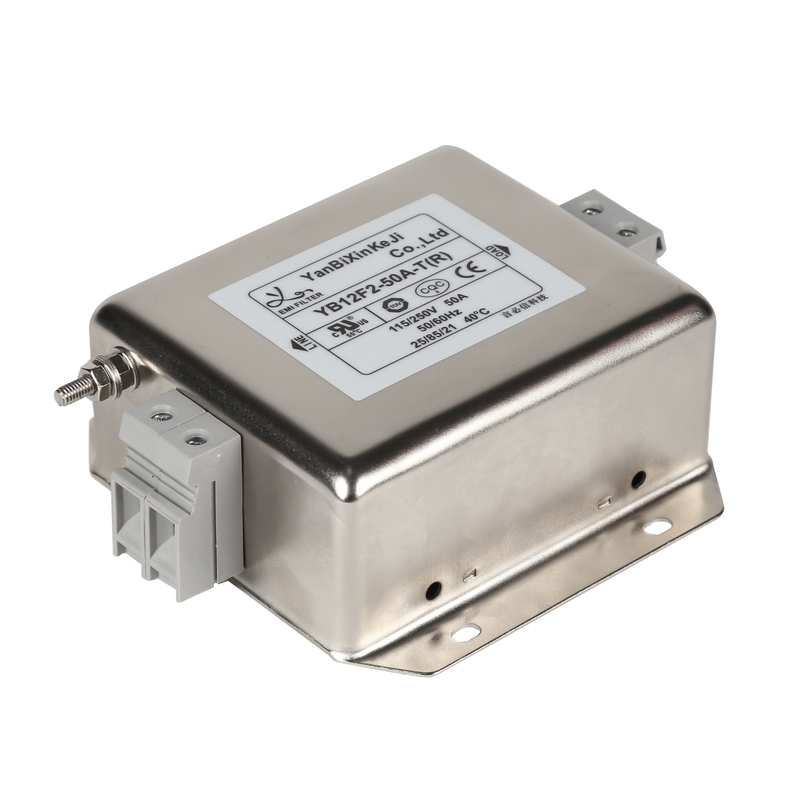

Product picture:



Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter 0Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter 1

Tabulates:

Model No. Rated Current
@40°C
Terminal Options* Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB42D3-1A 1A Q S W

<1.0mA

Fig.1

115/250V

50/60Hz

YB42D3-2A 2A Q S W Fig.1
YB42D4-3A 3A Q S W Fig.1
YB42D4-4A 4A Q S W Fig.1
YB42D4-6A 6A Q S W Fig.1
YB42D5-8A 8A Q S W Fig.1
YB42D5-10A 10A Q S W Fig.1
YB42D5-15A 15A Q S W Fig.1
YB42D6-10A 10A Q S W Fig.1
YB42D6-15A 15A Q S - Fig.1
YB42F2-20A 20A Q S T Fig.1
YB42F2-25A 25A - S T Fig.1
YB42F3-30A 30A - S T Fig.1



Medical Type Tabulates:

Model No. Rated Current
@40°C
Terminal Options Medical equipment
5
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB42D3-1A-x(5) 1A Q S W 5

<5μA

Fig.2

115/250V

50/60Hz

YB42D3-2A-x(5) 2A Q S W 5 Fig.2
YB42D4-3A-x(5) 3A Q S W 5 Fig.2
YB42D4-4A-x(5) 4A Q S W 5 Fig.2
YB42D4-6A-x(5) 6A Q S W 5 Fig.2
YB42D5-8A-x(5) 8A Q S W 5 Fig.2
YB42D5-10A-x(5) 10A Q S W 5 Fig.2
YB42D5-15A-x(5) 15A Q S W 5 Fig.2
YB42D6-10A-x(5) 10A Q S W 5 Fig.2
YB42D6-15A-x(5) 15A Q S - 5 Fig.2
YB42F2-20A-x(5) 20A Q S - 5 Fig.2

Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter 2*Q: Fast-on 6.35x0.8mm            Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter 3  S: Screw lug           Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter 4 W: UL1015 18awg



Electrical schematic:



Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter 5

                           Fig.1



Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter 6

                          Fig.2





Mechanical Dimension(Unit: mm)



Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter 7




Case D3 D4 D5 D6 F2 F3 Tolerances
A 63 63 73 94 98 150 ±1
B 51 51 56 55 80 105 ±1
C 29 38 45 45 41 60 ±1
D 75 75 87 104 95 120 ±0.15
E 85 85 98 118 50 80 ±1
F 25 27 30 30 50 60 ±0.5
G 10 15.5 16 15 24 35 ±0.5
H 5 4.5 4.5 4.5*6 4.2 4*6 ±0.15
I         4.2*6.2 4*6 ±0.15
J         M4/M6 M4/M6
K 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 ±0.15
L         50 60 ±2



Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

Three-stage Enhanced EMI Filter AC Power Line Noise Filter High Attenuation Low Pass Filter 8

FAQ:
Q: What are the main products of your company?

A: IEC inlet socket EMI filter, Single-phase filter, Three-phase RFI filter, Home appliance noise filter, Medical equipment filter, inver/converter EMC filter, etc.



Q: How is the quality of your product?
A: All our products have pass UL, TUV, CE, ROHS, ISO9001 approval. which ensures the quality of the product.



Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are supplied before-sale



Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.



Q: What facilities do you have?
A: We have our own laboratory and production base to establish large-scale production.



Q: What the delivery time for 1000pcs of EMI FILTER?
A: Normally 15-20 days, but we can coordinate for a better delivery time if it is urgent.
