IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

emi power line filter

power line filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB11B3-10A-Q

Contact Us

Request A Quote
Product Details
Name:
YB11B3-10A-Q
Voltage:
115V/250V
Current:
1A 3A 6A 8A 10A
Climatic Category:
-25°C~+85°C(25/85/21)
Line To Line:
1450VDC
Line To Ground:
2000VAC/2250VDC
Approval:
ISO9001:2008 CUL TUV CQC CE ROHS
Protection Level:
IP40 According To IEC 60529
Flammability Corresponding To:
UL 94V-0
Material:
Hardware
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm/CTN
Delivery Time
15-25 days
Payment Terms
L/C, T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

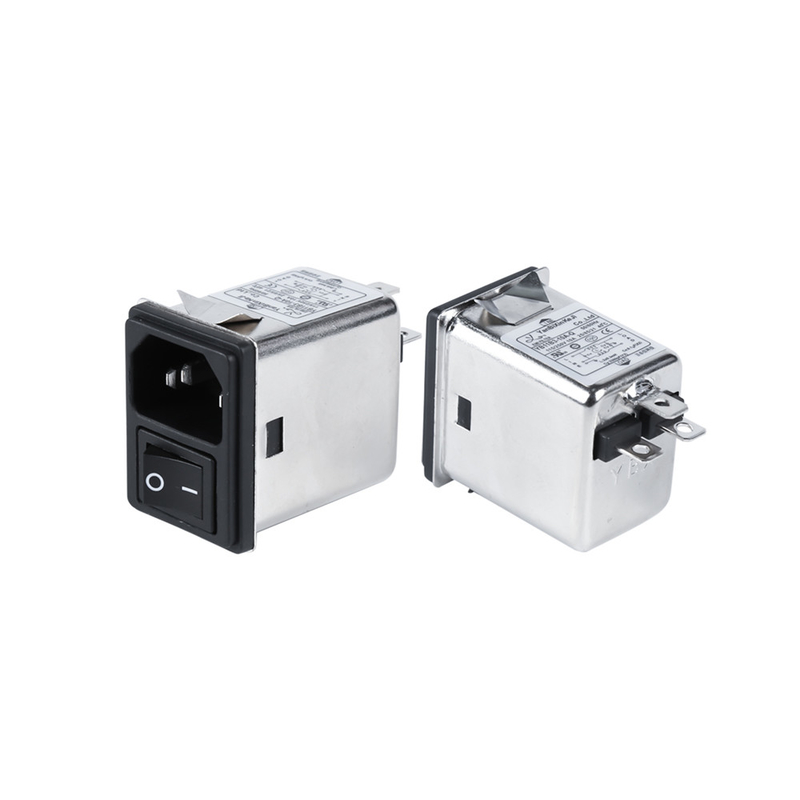

The product pictures:

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 0

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 1

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 2



Technical Specification:



Item EMI Power Filter
Model EMI Power Filter YB-B3
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 125VAC 250VAC
Rated Current 1A 3A 6A 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.3uA Max
MOQ Negotiable
Price Negotiable
Lead Time 5~15 weekday





Features:



(1) Versions to 10A are available with 1 pole rocker switch



(2) There are a variety of parts and combinations to meet different customer's EMC tests



(3) Customized products according to customer's requirements



Typical Applications:



1.Portable electrical and electronic equipment;



2.Medical equipment;



3.Test and measurement equipment;



4.Small and medium-sized machines and household equipment



5.Single-phase power supply,switch-mode power supply



Rule of Nomination:



YB    11     B3   -   10A   -    Q         (  R  5  G  )

            ¦         ¦              ¦             ¦                    ¦ ¦ ¦

       circuit  case   current  connection  optional



Tabulates:

Model No. Rated Current
@40°C

Terminal Options*

Bleeder resistor (optional)
G
Leakage current 250V/50Hz Electrical Schematic

Rated Voltage(V) Operating Frequency(Hz)


YB11B3-1A 1A Q S - - -













<0.8mA

Fig.1













115/250V













50/60Hz

YB11B3-2A 2A Q S - - - Fig.1
YB11B3-3A 3A Q S - - - Fig.1
YB11B3-4A 4A Q S - - - Fig.1
YB11B3-6A 6A Q S - - - Fig.1
YB11B3-8A 8A Q S - - - Fig.1
YB11B3-10A 10A Q S - - - Fig.1
YB11B4-1A 1A Q S - - - Fig.1
YB11B4-2A 2A Q S - - - Fig.1
YB11B4-3A 3A Q S - - - Fig.1
YB11B4-4A 4A Q S - - - Fig.1
YB11B4-6A 6A Q S - - - Fig.1
YB11B4-8A 8A Q S - - - Fig.1
YB11B4-10A 10A Q S - - - Fig.1



IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 3



Medical Type Tabulates:

Model No. Rated Current
@40°C

Terminal Options

Bleeder resistor(optional) Medical equipment


G
Leakage current 250V/50Hz Electrical Schematic

Rated Voltage(V) Operating Frequency(Hz)


YB11B3-1A-x(R5) 1A Q S - 1 5 -















<5μA

Fig.3















115/250V















50/60Hz

YB11B3-2A-x(R5) 2A Q S - 1 5 - Fig.3
YB11B3-3A-x(R5) 3A Q S - 1 5 - Fig.3
YB11B3-4A-x(R5) 4A Q S - 1 5 - Fig.3
YB11B3-6A-x(R5) 6A Q S - 1 5 - Fig.3
YB11B3-8A-x(R5) 8A Q S - 1 5 - Fig.3
YB11B3-10A-x(R5) 10A Q S - 1 5 - Fig.3
YB11B4-1A-x(R5) 1A Q S - 1 5 - Fig.3
YB11B4-2A-x(R5) 2A Q S - 1 5 - Fig.3
YB11B4-3A-x(R5) 3A Q S - 1 5 - Fig.3
YB11B4-4A-x(R5) 4A Q S - 1 5 - Fig.3
YB11B4-6A-x(R5) 6A Q S - 1 5 - Fig.3
YB11B4-8A-x(R5) 8A Q S - 1 5 - Fig.3
YB11B4-10A-x(R5) 10A Q S - 1 5 - Fig.3

IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 4*Q: Fast-on 6.35x0.8mm         IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 5 S: solder 4.0x0.8mm         IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 6 W: UL1015 18awg

Electrical schematic:



IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 7

                            Fig.1



IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 8

                            Fig.3



Mechanical Dimension(Unit: mm)



IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 9




Case A B C D E F G H I J K
B3/B4 52 28 39.5 30   39 13 11 12.5   6.35*0.8
Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15



Insertion loss table(In 50ohm system according to IEC/CISPR No.17)



                      Common mode                                                           -------- differential mode



                           1A                                                                                             3A

 IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 10                                   IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 11



                           6A                                                                                              8A

  IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 12                                  IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 13

                                                                                                                                                                                                                                                                10A

  IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch 14

Packaging

Power Line Filter: CTN/192pcs

N/G W.: 12/13.5KG

Measures:0.565*0.285*0.225m



Shipment

---Shipping terms: DHL, UPS, FedEx, TNT, EMS, or the carrier.

---Port is Shenzhen or as requests.
