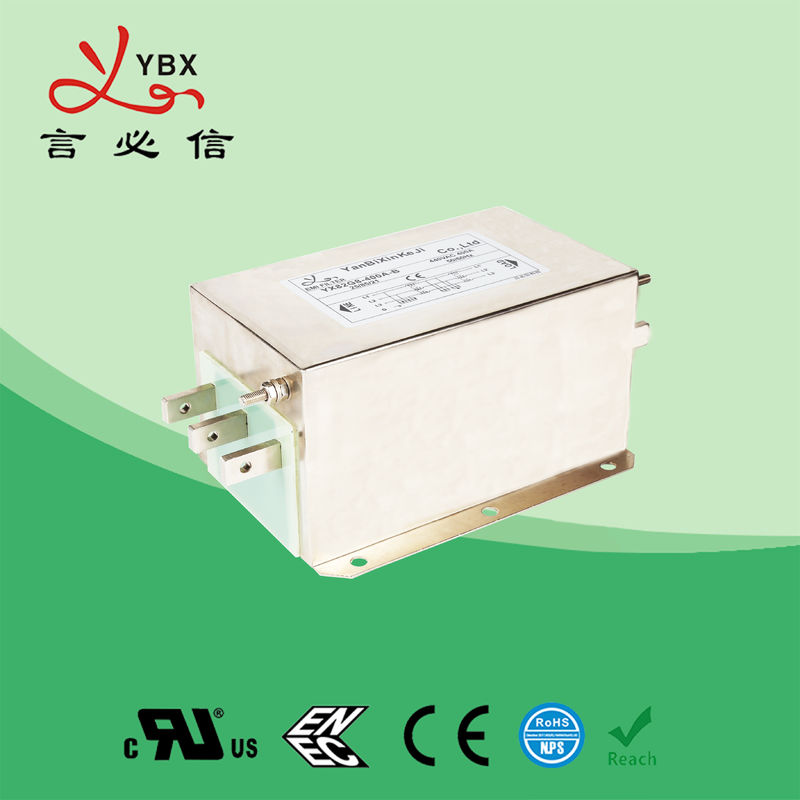

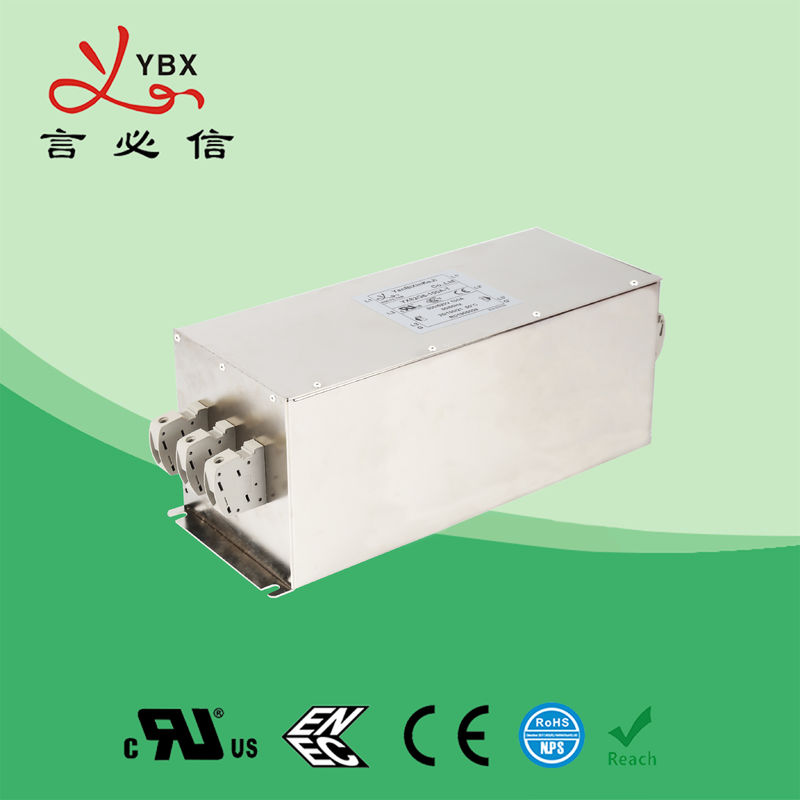

Low Pass Inverter EMI Filter , EMI RFI Noise Filter CE Certification

Low Pass Inverter EMI Filter , EMI RFI Noise Filter CE Certification

power inverter noise filter

inverter rfi filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, ENEC, CE, ROHS

Model Number:

YX84G6-200A-SL

Contact Us

Request A Quote
Product Details
Name:
YX84G6-200A-SL
Brand Name:
YBX
Package:
Paper Box
Case:
Metal Case
OEM:
Available
Transfer Function:
Low Pass
Warranty Period:
6 Years
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Product Description

EMI RFI Power Low Pass Inverter Emi Filter for Most Brands of Converters



Technical Specification:



Item Power line Filter
Model Power line Filter YX-G
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Rated Current 1~1200A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 5pcs
Price USD3.8~88.8/Meter
Lead Time 5~20 weekday



Features:



-- With a three-stage filtering design, special materials can guarantee the high impedance characteristics in wide frequency range;



-- Assure the smooth operation of other electronic devices in the vicinity, and solve the interference problems of inverter;



-- Copper bar terminals applied for versions above 250A to keep pace with international standard, easy and safe connection;



-- Customized products according to customer's requirements



Typical Applications:



1. Suitable for most brands of inverters



2. Servo motor



3. UPS/SMPS



4. Industrial electronic equipment by using frequency conversion principle



Rule of Nomination:



YX    84    G1    -    3A    -     Q

            ¦        ¦               ¦              ¦

     circuit  case     current connection



Tabulates:

Model No. Rated Current
@40°C

Terminal Options*

Leakage current 440V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YX84G1-3A 3A - S T









<5.0mA

Fig.1



























250/440V



























50/60Hz

YX84G2-6A 6A - S T Fig.1
YX84G2-10A 10A - S T Fig.1
YX84G2-15A 15A - S T Fig.1
YX84G3-20A 20A - S T Fig.1
YX84G3-25A 25A - S T Fig.1
YX84G3-30A 30A - S T Fig.1
YX84G5-30A 30A - S T Fig.1
YX84G5-40A 40A - S T Fig.1
YX84G5-50A 50A - S T Fig.1
YX84G4-50A 50A - S T <7.0mA Fig.1
YX84G4-60A 60A - S T Fig.1
YX84G4-80A 80A - S T Fig.1
YX84G6-100A 100A - S T



<10.0mA

Fig.1
YX84G6-120A 120A - S T Fig.1
YX84G6-150A 150A - S T Fig.1
YX84G6-180A 180A - S T Fig.1
YX84G6-200A 200A - S T Fig.1
YX84G8-300A 300A B - T







<20.0mA

Fig.1
YX84G8-400A 400A B - T Fig.1
YX84G8-630A 630A B - T Fig.1
YX84G9-800A 800A B - T Fig.1
YX83G9-1000A 1000A B - T Fig.1
YX83G9-1200A 1200A B - T Fig.1



  T: Terminal block

Electrical schematic:

Low Pass Inverter EMI Filter , EMI RFI Noise Filter CE Certification 0



                         Fig.1



Mechanical Dimension(Unit: mm)



Low Pass Inverter EMI Filter , EMI RFI Noise Filter CE Certification 1




Case G1 G2 G3 G5 G6 G8 G9 Tolerances
A 72 98 120 150 260 290 350 ±1
B 65 80 100 105 170 170 205 ±1
C 39 40 50 60 100 155 162 ±1
D 75 95 115 120 196 195 230 ±0.15
E 85 105 130 135 220 220 255 ±1
F 35 50 50 55 85 100 124 ±0.5
G 22 20 28 35 65 75 67 ±0.5
H   4.5*6.5 4*6 4*6 8*12 12 12 ±0.15
I 45 50 60 90 172 228 290 ±0.15
J M4 M4 M4 M4/M6 M8 M8 M8
K M4/M6 M4/M6 M4/M6 M6/M8 M10 20 30 ±0.15
L           8 8 ±0.15
M           380 448 ±2
N





Insertion loss table(In 50ohm system according IEC/CISPR No.17)

           Common mode                            -------- differential mode

                              6/10A                                                                                   20A

Low Pass Inverter EMI Filter , EMI RFI Noise Filter CE Certification 2                              Low Pass Inverter EMI Filter , EMI RFI Noise Filter CE Certification 3



                            30A                                                                                        50A

 Low Pass Inverter EMI Filter , EMI RFI Noise Filter CE Certification 4                              Low Pass Inverter EMI Filter , EMI RFI Noise Filter CE Certification 5



                           100A                                                                                        200A

 Low Pass Inverter EMI Filter , EMI RFI Noise Filter CE Certification 6                                Low Pass Inverter EMI Filter , EMI RFI Noise Filter CE Certification 7
