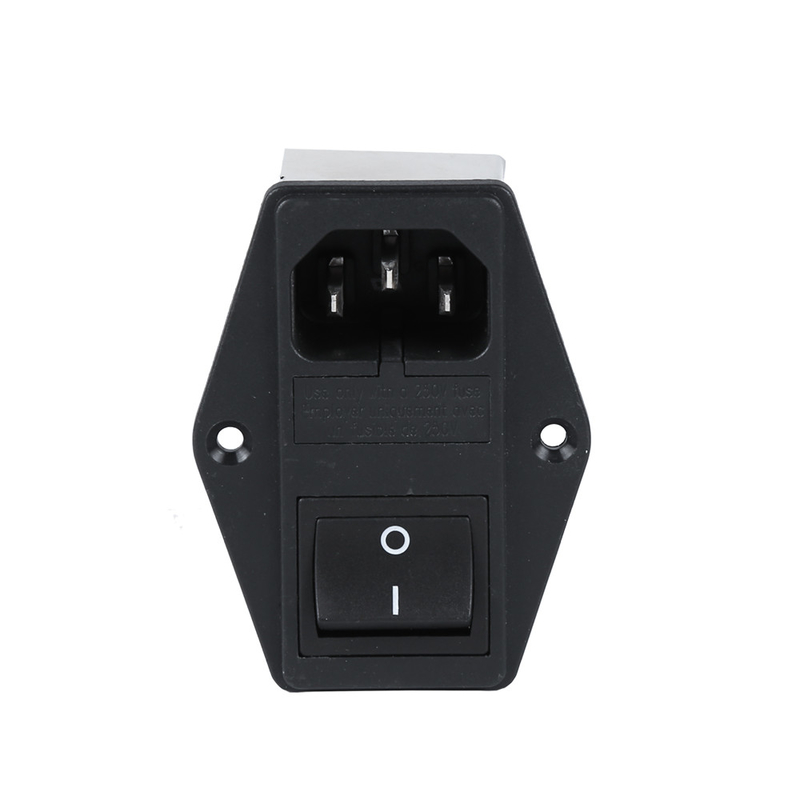

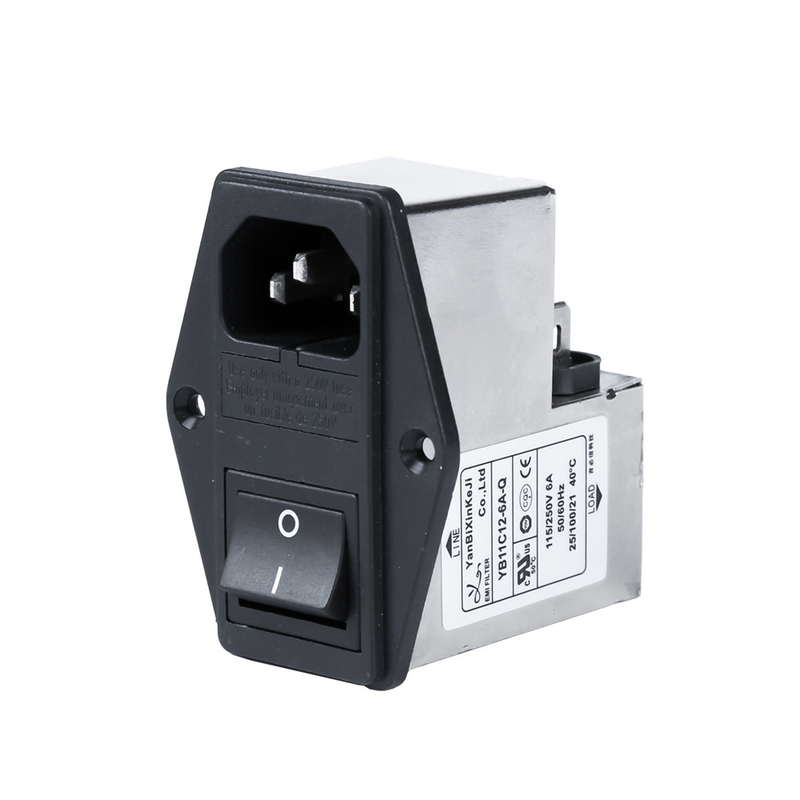

Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch

Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch
Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch

Large Image :  Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch

Product Details:
Place of Origin: China
Brand Name: YBX
Certification: cUL, TUV, CQC, CE, ROHS
Model Number: YB11C12-10A-Q
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 56.5*28.5*22.5cm
Delivery Time: 20-25 days
Payment Terms: T/T, L/C
Supply Ability: 10000 Piece/Pieces per Month

Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch

Description
Item: YB11C12-10A-Q Rated Current: 1A-10A
Rated Voltage: 115V Operating Frequency: 50/60HZ
Line To Line: 1450DVC Port: Shenzhen
High Light:

inline power filter

,

emi emc filter

1A-10A, 120, 250VAC Inline EMI Filter With Fuse And Switch Emi Suppression Filters



Technical Specification:



Item IEC Filter
Model IEC Filter YB-A
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 100pcs
Price USD1~9.8/Meter
Lead Time 5~15 weekday



Features:



1. High performance and high attenuation power filters with IEC 320 socket



2.  (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing



3. There are a variety of parts and combinations to meet different customer's EMC tests



4.  Customized products according to customer's requirements



Typical Applications:



--  Specially designed for LCD and PDP TV,medical applications,general electrical appliances



--  Medical equipment



--  Test and measurement equipment



--  Small and medium-sized machines and household equipment





Rule of Nomination:



YB   11    C11      -    10A   -    Q          ( R  5  G )

           ¦        ¦                  ¦             ¦                ¦    ¦    ¦

    circuit   case     current  connection optional



C9/C11: one Fuse



C10/12: Two Fuses



Tabulates:

Model No. Rated Current
@40°C

Terminal Options*

Bleeder resistor

(optional)


G
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB11C11-1A 1A Q S - - -















<0.8mA

Fig.1















115/250V















50/60Hz

YB11C11-2A 2A Q S - - - Fig.1
YB11C11-3A 3A Q S - - - Fig.1
YB11C11-4A 4A Q S - - - Fig.1
YB11C11-6A 6A Q S - - - Fig.1
YB11C11-8A 8A Q S - - - Fig.1
YB11C11-10A 10A Q S - - - Fig.1
YB11C12-1A 1A Q S - - - Fig.1
YB11C12-2A 2A Q S - - - Fig.1
YB11C12-3A 3A Q S - - - Fig.1
YB11C12-4A 4A Q S - - - Fig.1
YB11C12-6A 6A Q S - - - Fig.1
YB11C12-8A 8A Q S - - - Fig.1
YB11C12-10A 10A Q S - - - Fig.1





Medical type Tabulates:

Model No. Rated Current
@40°C
Terminal Options

Bleeder resistor

(optional)

Medical equipment
5

G
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)




YB11C11-1A-x(R5) 1A Q S - 1 5 -















<5μA

Fig.2















115/250V















50/60Hz

YB11C11-2A-x(R5) 2A Q S - 1 5 - Fig.2
YB11C11-3A-x(R5) 3A Q S - 1 5 - Fig.2
YB11C11-4A-x(R5) 4A Q S - 1 5 - Fig.2
YB11C11-6A-x(R5) 6A Q S - 1 5 - Fig.2
YB11C11-8A-x(R5) 8A Q S - 1 5 - Fig.2
YB11C11-10A-x(R5) 10A Q S - 1 5 - Fig.2
YB11C12-1A-x(R5) 1A Q S - 1 5 - Fig.2
YB11C12-2A-x(R5) 2A Q S - 1 5 - Fig.2
YB11C12-3A-x(R5) 3A Q S - 1 5 - Fig.2
YB11C12-4A-x(R5) 4A Q S - 1 5 - Fig.2
YB11C12-6A-x(R5) 6A Q S - 1 5 - Fig.2
YB11C12-8A-x(R5) 8A Q S - 1 5 - Fig.2
YB11C12-10A-x(R5) 10A Q S - 1 5 - Fig.2





Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 0*Q: Fast-on 6.35x0.8mm             Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 1  S: solder 4.0x0.8mm        Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 2 W: UL1015 18awg



Electrical schematic:



Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 3

                        Fig.1







Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 4

                        Fig.2



Mechanical Dimension(Unit: mm)

Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 5



Case A B C D E F G H I J K
C11/C12 54 62 29 50 40 68 15.5 11   3.7 6.35*0.8
Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15







Insertion loss table(In 50ohm system according IEC/CISPR No.17)



                     Common mode                              -------- differential mode



                               1A                                                                  3A

  Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 6        Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 7



                                6A                                                                   8A

  Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 8         Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 9



                               10A                                                                 15A

   Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 10         Yanbixin 1A-10A 120 250VAC EMI Suppression Filter With Fuse And Switch 11
