1A-8A 220VAC Power Enrty Module Filter IEC C12 Inlet EMI Filter For Power Switch
Features:
1. High performance and high attenuation power filters with IEC 320 socket
2. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing
3. There are a variety of parts and combinations to meet different customer's EMC tests
4. Customized products according to customer's requirements
Typical Applications:
-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
YB11C12-8A-Q EMI Filter Specification:
| Item | Power Entry Module Filter |
| Model | YB11C12-8A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150KHz-30MHz |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ |
100pcs |
Naming Rule:
| YB | 11 | C12 | - | 8A | - | Q |
| | | | | | | | | | | ||
| Single Phase | Circuit | Dimension | Current | Output Connection | ||
| 11:11 circuit | C12 | 6A :6 amp | Q:fast-on tab 250 | |||
| 8A :8 amp | W:wire | |||||
| 10A :10 amp | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11C12 | C12 | 1 | Fast-on terminal |
| YB11C12 | C12 | 3 | |
| YB11C12 | C12 | 6 | Wire |
| YB11C12 | C12 | 8 | |
| YB11C12 | C12 | 10 |
Solder Lug Terminals |
Electrical Schematic:
Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | |||||||||||||||
| C11/C12 | 54 | 62 | 29 | 50 | 40 | 68 | 15.5 | 11 | 3.7 | 6.35*0.8 | ||||||||||||||||
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 | |||||||||||||||

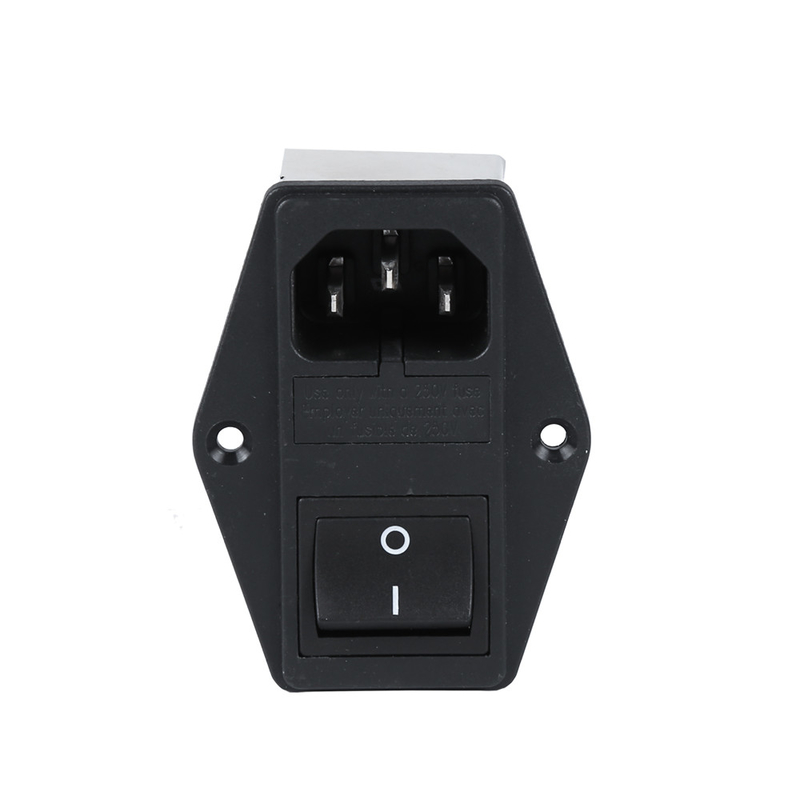

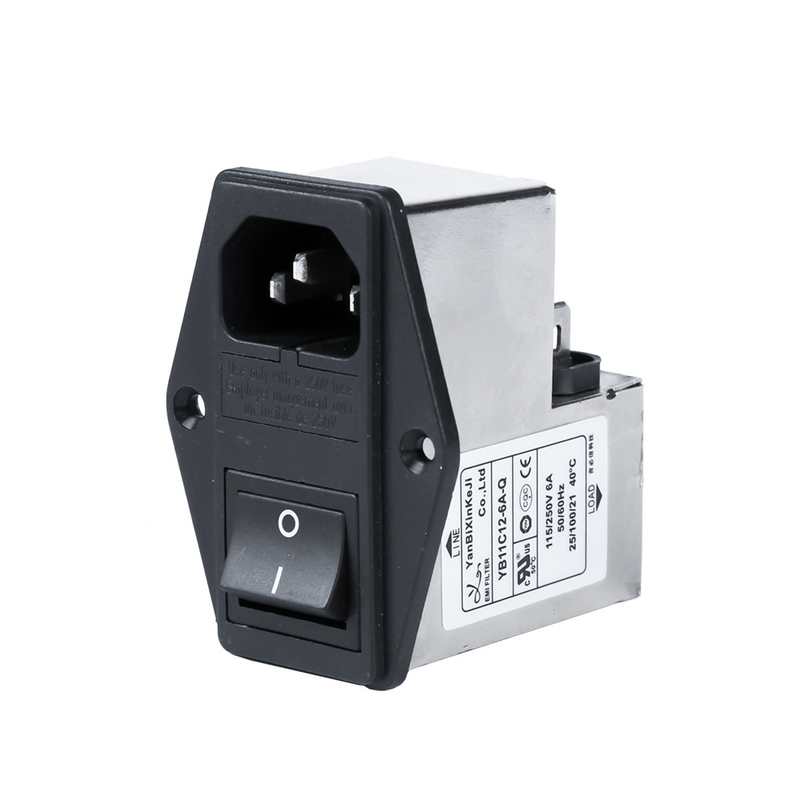

YB11C12-8A-Q IEC Inlet Filter:
