Universal IEC Inlet EMI Filter Solder Lug Terminal Shrapnel Three In One Filter
IEC Inlet EMI Filter:
YB12C5-6A-Q is the IEC Inlet EMI Filter with switch, socket and fuse.Solder lug terminal and snap-in vertically integrates an IEC inlet type and filter with noise suppression in a slim form factor.The current rated can be offered up to 15 amps and the rated voltage is 115/250vac.
Feature Of IEC Inlet Filter
< Offer in snap-in mounting type with optional vertical & horizontal
< Snap-in installation design, simple and quick,
< Power entry model filters with an IEC inlet, a mains filter with dual-fuse and rocker switch.
< The choice of integrated earth line choke is also available.
< Low leakage current version upon requested.
< Custom-specific versions are available on request.
Typical Applications:
1. Portable electrical and electronic equipment
2. Medical equipment
3. Test and measurement equipment
4. Small and medium-sized machines and household equipment
Technical Specification:
| Item | IEC EMI Filter |
| Model | IEC Filter YB12C5-6A-Q(R) |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
Naming Rule:
| YB | 12 | C5 | - | 6A | - | Q |
| ∣ | ∣ | ∣ | ∣ | ∣ | ||
| Our brand | Circuit | Dimension | Current | Output Connection | ||
| 12:12 circuit | C5 | 1A :1 amp | Q:Solder Lug Terminal | |||
| 4A :4 amp | ||||||
| C5: One Fuse | 6A :6 amp | |||||
| C6: Two Fuses | 8A:8 amp | |||||
| 10A:10 amp |
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB12C5-1A | C5 | 1 | Solder Lug Terminal |
| YB12C5-3A | C5 | 3 | |
| YB12C5-6A | C5 | 6 | |
| YB12C5-8A | C5 | 8 | |
| YB12C5-10A | C5 | 10 |
*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

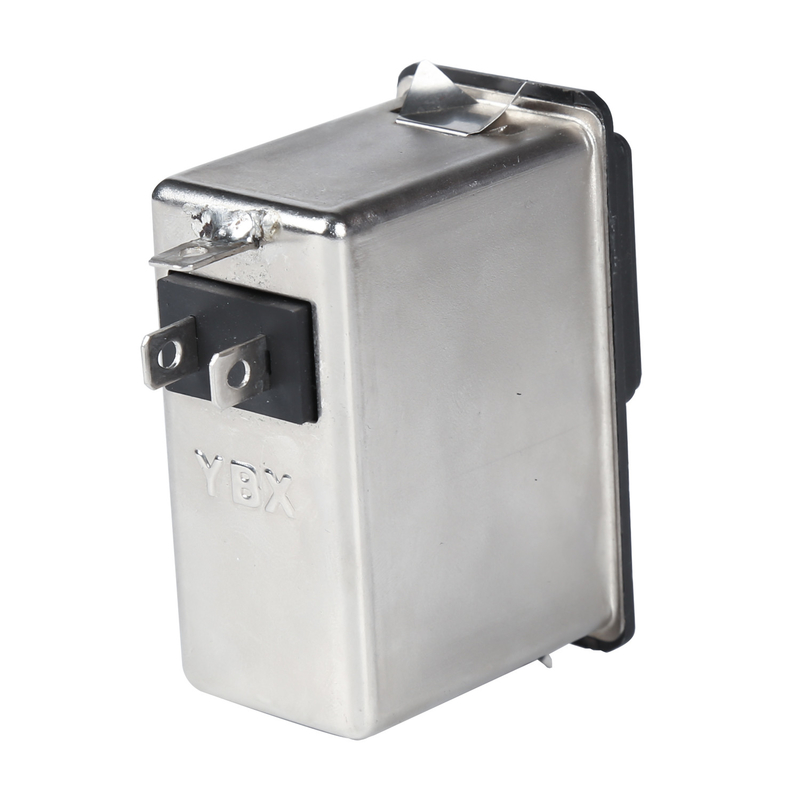

YB12C5-6A-Q(R) Picture:
Electrical Schematic:
Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | |||||||||||||||
| C5/C6 | 62 | 61 | 29.5 | 65.5 | 32 | 11 | 11 | 19 | 6.35*0.8 | |||||||||||||||||
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 | |||||||||||||||
