Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch

Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch

2250VDC Ac Inlet Filter

60dB Ac Inlet Filter

0.8mA Ac Inlet Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH

Model Number:

YB12C9-4A-Q(R)

Contact Us

Request A Quote
Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch
Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch
Product Details
TYPE:
YB12C9-4A-Q(R)
Rated Voltage Max.::
250VAC,50/60Hz
Operating Frequency::
DC To 400Hz
Rated Currents::
1~10A@40°C，50°C(UL/CUL)
L-N::
250VDC(with Lamp)
L/N-G::
4000VAC(R5 Type)
Inrush Current::
72A
Protection Level::
IP40 According To IEC 60529
Flammability Corresponding To::
UL 94V-0
Transfer Function:
Low Pass
Payment & Shipping Terms
Minimum Order Quantity
1000PCS
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
10-20 days
Payment Terms
T/T
Supply Ability
500000 Piece/Pieces per Month
RELATED PRODUCTS
Good price YB11A5-6A-Q(R) IEC C13 Inlet EMI Filter 115V 250V Socket Type Power Filter online Video

YB11A5-6A-Q(R) IEC C13 Inlet EMI Filter 115V 250V Socket Type Power Filter

Get Best Price
Good price Yanbixin High Quality A13 IEC Inlet Filter 1A~20A Socket EMI Filter For Data Equipment online Video

Yanbixin High Quality A13 IEC Inlet Filter 1A~20A Socket EMI Filter For Data Equipment

Get Best Price
Good price YBX IEC Inlet EMI Filter 220V AC EMC Noise Filter 1A 3A 6A 10A For Electric Equipment online Video

YBX IEC Inlet EMI Filter 220V AC EMC Noise Filter 1A 3A 6A 10A For Electric Equipment

Get Best Price
Good price IEC 60529 Power Entry Module Filter EMI Noise Filter With Socket Switch And Fuse online Video

IEC 60529 Power Entry Module Filter EMI Noise Filter With Socket Switch And Fuse

Get Best Price
Contact Us
+86 15220189175
Krystal@ybx-emc.com
86-755-27147101
Contact Now
Product Description

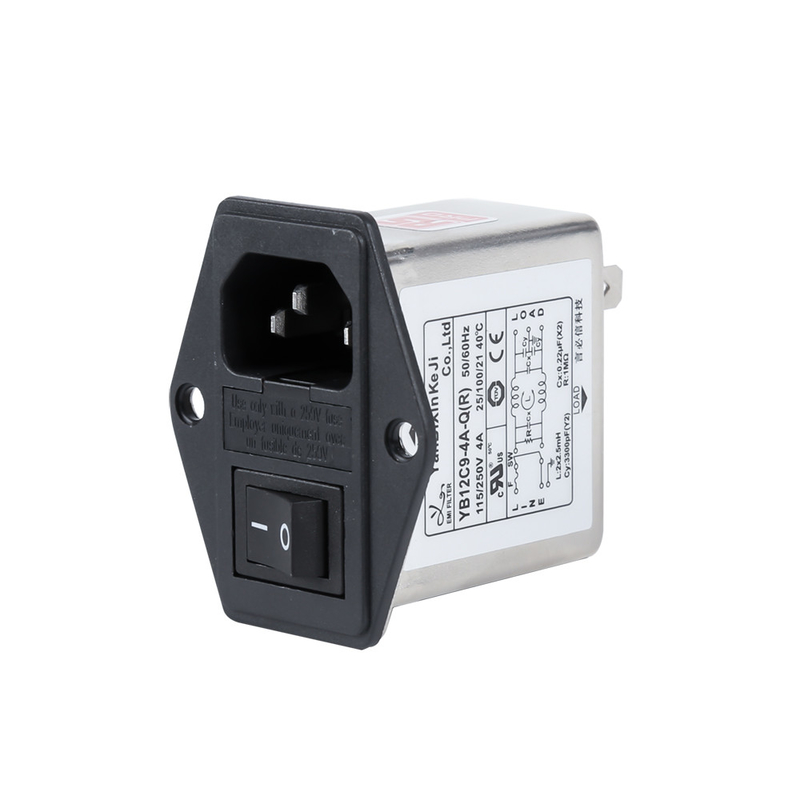

Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch



Filtered Power Entry Modules with Fuse and Switch EMI EMC Filters



Typical Applications of EMI filter:



-- Portable electrical and electronic equipment



-- Medical equipment



-- Test and measurement equipment



-- Small and medium-sized machines and household equipment





Technical Specification of EMI filter:



Item IEC Filter
Model IEC Filter YB-C
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60dB~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1A~10A
Environmental Temperature 40°C
Temperature Range 25 / 100 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 100pcs
Price Negotiable
Lead Time 5~15 weekday



Features of EMI filter:



1. 2-pole rocker switch



2. Rated currents up to 10A



3. Single or dual-fuse holder



Rule of Nominationof EMI filter:



YB 11 C9 - 4A - Q ( R 5 G )

¦ ¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional



C9: One Fuse

C10: Two Fuses



Tabulates of EMI filter:

Model No. Rated Current
@40°C
 		 Terminal Options* Bleeder resistor(optional)
G		 Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V)  Operating Frequency(Hz)

Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 0 Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 1 Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 2
YB11C9-1A 1A Q S - - - <0.8mA Fig.1 115/250V 50/60Hz
YB11C9-2A 2A Q S - - - Fig.1
YB11C9-3A 3A Q S - - - Fig.1
YB11C9-4A 4A Q S - - - Fig.1
YB11C9-6A 6A Q S - - - Fig.1
YB11C9-8A 8A Q S - - - Fig.1
YB11C9-10A 10A Q S - - - Fig.1
YB11C10-1A 1A Q S - - - Fig.1
YB11C10-2A 2A Q S - - - Fig.1
YB11C10-3A 3A Q S - - - Fig.1
YB11C10-4A 4A Q S - - - Fig.1
YB11C10-6A 6A Q S - - - Fig.1
YB11C10-8A 8A Q S - - - Fig.1
YB11C10-10A 10A Q S - - - Fig.1





Medical type Tabulates of EMI filter:

Model No. Rated Current
@40°C		 Terminal Options Bleeder resistor(optional (MΩ) Medical equipment
5
G		 Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V)  Operating Frequency(Hz)

Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 3 Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 4 Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 2
YB11C9-1A-x(R5) 1A Q S - 1 5 - <5μA Fig.2 115/250V 50/60Hz
YB11C9-2A-x(R5) 2A Q S - 1 5 - Fig.2
YB11C9-3A-x(R5) 3A Q S - 1 5 - Fig.2
YB11C9-4A-x(R5) 4A Q S - 1 5 - Fig.2
YB11C9-6A-x(R5) 6A Q S - 1 5 - Fig.2
YB11C9-8A-x(R5) 8A Q S - 1 5 - Fig.2
YB11C9-10A-x(R5) 10A Q S - 1 5 - Fig.2
YB11C10-1A-x(R5) 1A Q S - 1 5 - Fig.2
YB11C10-2A-x(R5) 2A Q S - 1 5 - Fig.2
YB11C10-3A-x(R5) 3A Q S - 1 5 - Fig.2
YB11C10-4A-x(R5) 4A Q S - 1 5 - Fig.2
YB11C10-6A-x(R5) 6A Q S - 1 5 - Fig.2
YB11C10-8A-x(R5) 8A Q S - 1 5 - Fig.2
YB11C10-10A-x(R5) 10A Q S - 1 5 - Fig.2





Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 6*Q: Fast-on 6.35x0.8mm Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 7 S: solder 4.0x0.8mm Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 8 W: UL1015 18awg



Electrical schematic of EMI filter:

Fig.1

Standard type

Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 9





Fig.2

R5 type



Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 10

Fig.3

Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 11



Mechanical Dimension(Unit: mm)





Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 12

Case A B C D E F G H I J K
C9/C10 58 48 29 50 40 53 11 11 17 3.3 6.35*0.8
Tolerances
公差		 ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15

Insertion loss table(In 50ohm system according IEC/CISPR No.17)



Common mode -------- differential mode



                      1A

                                                                                          3A

Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 13 Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 14



                          6A

                                                                                             8A

Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 15 Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 16



                         10A

Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch 17
