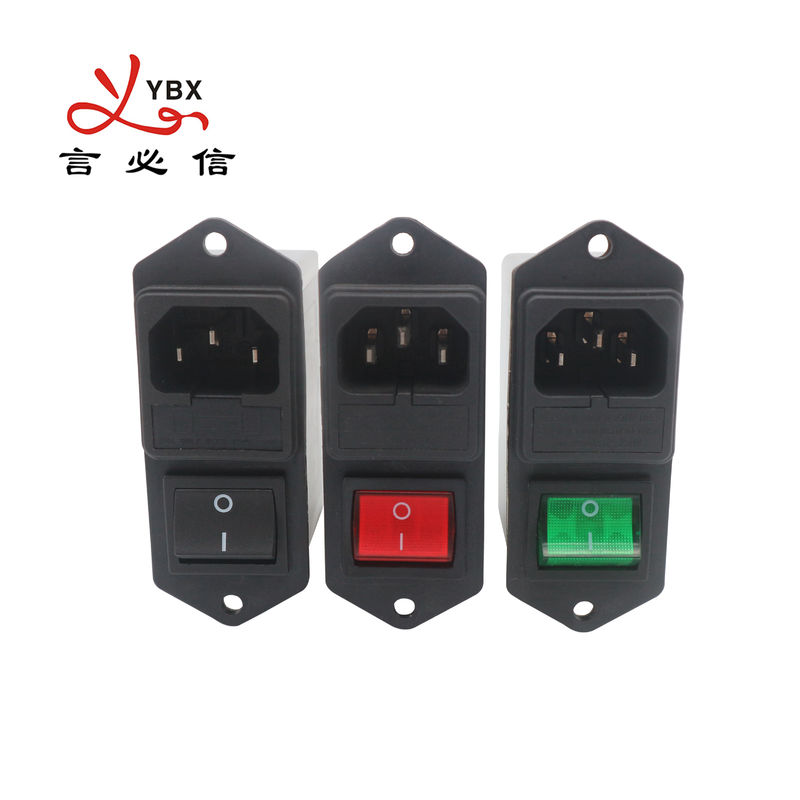

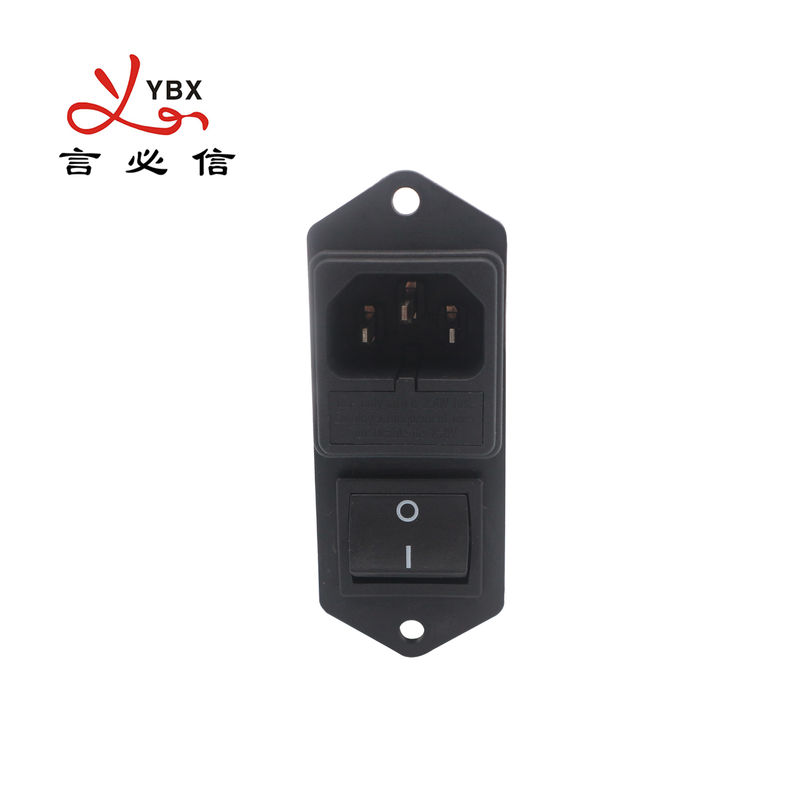

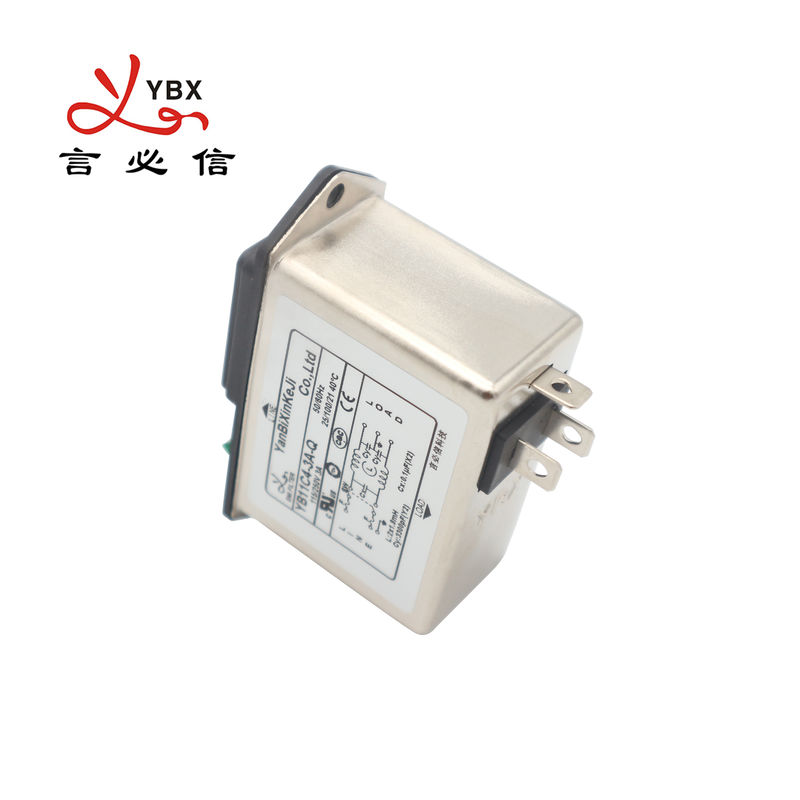

Three In One Socket EMI Filter 1A~10A Power Entry Module Filter For Medical Equipment

Single Phase Socket Low Pass 90dB 250VDC Plug-In RFI Filter

Filtered Power Entry Modules with Fuse and Switch EMI EMC Filters

Features:

1. With the single or double fuse

2. Bipolar switch

3. With very small size

4. Customized products according to customer's requirements

Typical Applications:

-- Portable electrical and electronic equipment

-- Medical equipment

-- Test and measurement equipment

-- Small and medium-sized machines and household equipment

-- Single-phase power supply,switch-mode power supply

Rule of Nomination:

YB11    C3  -  10A   -    Q         ( R 5 G )

     ¦ ¦     ¦ ¦       ¦              ¦                   ¦

circuit case current connection optional

C3: Fixed top-bottom, One Fuse

C4: Fixed top-bottom, Two Fuses

Tabulates:

Rated Current @40°C Terminal Options* Bleeder resistor(optional) G Leakage current 250V/50Hz Electrical Schematic   Rated Voltage(V)  Operating Frequency(Hz) Model No. YB11C3-1A 1A Q S - - - <0.8mA Fig.1 115/250V 50/60Hz YB11C3-2A 2A Q S - - - Fig.1 YB11C3-3A 3A Q S - - - Fig.1 YB11C3-4A 4A Q S - - - Fig.1 YB11C3-6A 6A Q S - - - Fig.1 YB11C3-8A 8A Q S - - - Fig.1 YB11C3-10A 10A Q S - - - Fig.1 YB11C4-1A 1A Q S - - - Fig.1 YB11C4-2A 2A Q S - - - Fig.1 YB11C4-3A 3A Q S - - - Fig.1 YB11C4-4A 4A Q S - - - Fig.1 YB11C4-6A 6A Q S - - - Fig.1 YB11C4-8A 8A Q S - - - Fig.1 YB11C4-10A 10A Q S - - - Fig.1

Medical type Tabulates:

Rated Current @40°C Terminal Options   Bleeder resistor (optional)R(MΩ) Medical equipment 5 G Leakage current 250V/50Hz Electrical Schematic   Rated Voltage(V)  Operating Frequency(Hz) Model No. YB11C3-1A-x(R5) 1A Q S - 1 5 - <5μA Fig.2 115/250V 50/60Hz YB11C3-2A-x(R5) 2A Q S - 1 5 - Fig.2 YB11C3-3A-x(R5) 3A Q S - 1 5 - Fig.2 YB11C3-4A-x(R5) 4A Q S - 1 5 - Fig.2 YB11C3-6A-x(R5) 6A Q S - 1 5 - Fig.2 YB11C3-8A-x(R5) 8A Q S - 1 5 - Fig.2 YB11C3-10A-x(R5) 10A Q S - 1 5 - Fig.2 YB11C4-1A-x(R5) 1A Q S - 1 5 - Fig.2 YB11C4-2A-x(R5) 2A Q S - 1 5 - Fig.2 YB11C4-3A-x(R5) 3A Q S - 1 5 - Fig.2 YB11C4-4A-x(R5) 4A Q S - 1 5 - Fig.2 YB11C4-6A-x(R5) 6A Q S - 1 5 - Fig.2 YB11C4-8A-x(R5) 8A Q S - 1 5 - Fig.2 YB11C4-10A-x(R5) 10A Q S - 1 5 - Fig.2

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Mechanical Dimension(Unit: mm)

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

                      —— Common Mode                       -------  Differential Mode

                               1A                                                            3A                                                            6A

                               8A                                                          10A
