Place of Origin:
China
Brand Name:
YBX
Certification:
cUL, TUV, CQC, CE, ROHS, ISO9001
Model Number:
YB12D3-20A-S（R）
Contact Us

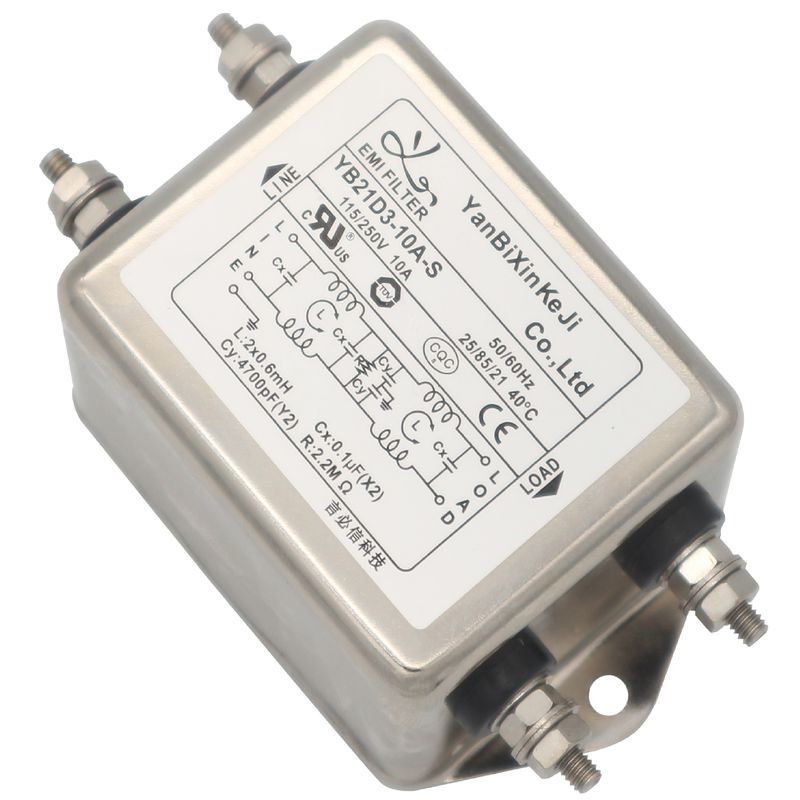

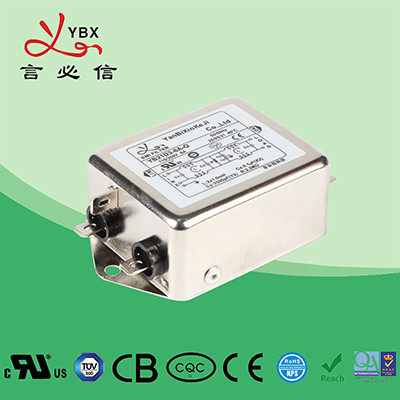

110v 220v Single Phase RFI Filter For Cooling Conditioner Equipment
110v 220v 1-20A EMI EMC Filters for Heating and cooling conditioner equipment
Technical Specification:
| Item | Power line EMI Filter |
| Model | YB12D3-20A-S(R) |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~30A |
| Environmental Temperature | 40°C |
| Temperature Range | -25℃~+85℃ |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 0.4mA/115V,60HZ; 0.8mA/250V, 50HZ |
| MOQ | Negotiated |
| Price | Negotiated |
| Lead Time | 15~20 workdays |
Features:
-- The compact size can be applied to various situations.
-- Two YB12 filters are also available as two-stage filters(YB35) in a noisy environment
-- There are a variety of parts and combinations to meet different customer's EMC tests.
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Datacom equipment
-- Office automation equipment
Rule of Nomination:
YB 12 D3 - 20A - S ( R 5 )
¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
S::Screw
Q: fast on

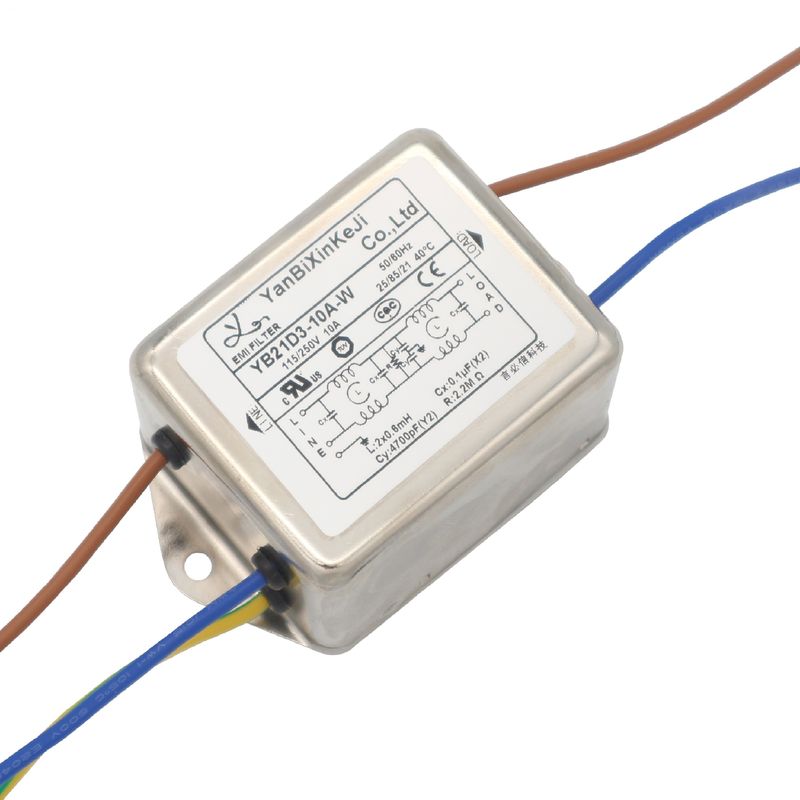

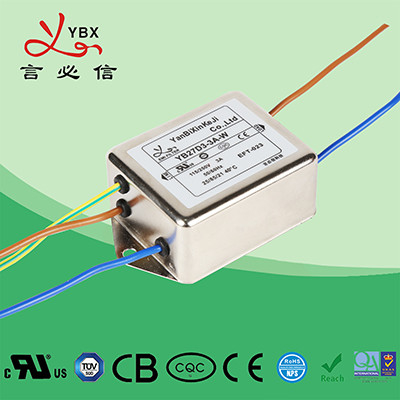

W: wire-lead
*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg
Electrical schematic:
Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode ---------------- differential mode
10A 20A
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T, L/C
---Please remember to leave the correct contact information for delivery.
Packaging
Power Line Filter: CTN/80pcs
N/G W.: 14/15.3KG
Measures:0.565*0.285*0.205m
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
---Port is Shenzhen or as requests.
Our Advantage:
1, We are a listed company, NO；667344, brand guarantee, reliable quality
2, We have UL, cUL, TUV, CE, CB, CQC, ROHS, ISO9001, REACH certification to ensure the product quality
3, We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.
4, We supply free EMC rectification technical support and free samples
5, Automation technology, scale production, excellent price
6, Good service, fast delivery!
7, After-sales service: free replacement within three months, free maintenance within 6 years, life-long maintenance.
8, We have a professional R&D team and cooperate with the top scientific research laboratory
FAQ:
Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase RFI filter, house appliance noise filter, Medical equipment filter, inverter/converter EMC filter, etc.
Q: How is the quality of your product?
A: All our products have pass UL, TUV, CE, ROHS, ISO9001 approval. which ensures the quality of the product.
Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are supplied before-sale
Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.
Q: What facilities do you have?
A: We have our own laboratory and production base to establish large-scale production.
Q: What the delivery time for 1000pcs of EMI FILTER?
A: Normally 15-20 days, but we can coordinate for a better delivery time if it is urgent.
|
|
|
|
