50HZ 60HZ 220V 8A 10A Two Stage Emi Emc Filters For Ac Power Line

Place of Origin China
Brand Name YBX
Certification cUL,TUV,CQC,CE,ROHS, ISO9001
Model Number Y22D1-8A-W
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details carton: 56.5*28.5*22.5cm
Delivery Time 15-20 days
Supply Ability 150000 Piece/Pieces per Month
Product Details
Rated Voltage Max 115V/250VAC,50/60Hz Operating Frequency DC To 400Hz
Rated Currents 3A, 6A, 8A,10A, 15A L-N 1450VDC
L/N-G 2000VAC/2250VDC Climatic Category -25°C~+85°C(25/85/21)
Flammability Corresponding To UL 94V-0 Design Corresponding To UL, CE, TUV, ROHS, ISO9001 Approval
Material Hardware
High Light

Two Stage Emi Emc Filters

,

Emc Filters For Ac Power Line

,

220V Emi Emc Filters

Leave a Message
Product Description

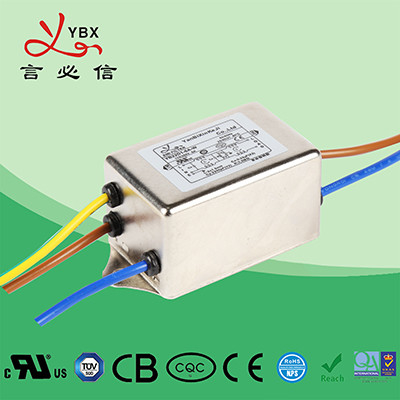

50HZ 60HZ 220V 8A 10A Two Stage Emi Emc Filters For Ac Power Line



220V 8A 10A two-stage AC power line EMI EMC Filter with good attenuation 50HZ/60HZ



Technical Specification:



Item Power line Filter
Model YB22D1-8A-W
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 8A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/50HZ 0.8mA ,115VAC/60HZ 0.4mA
MOQ Negotiable
Price Negotiable
Lead Time 20~25 days



Features:



-- YB22 has designed two-stage filtering, with good differential and common-mode attenuation.



-- Various terminal options allow you to select.



-- There are a variety of parts and combinations to meet different customer's EMC tests



-- Customized products according to customer's requirements



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Datacom equipment



-- Office automation equipment



Rule of Nomination:



YB 22       D1-         8A -         W/Q        ( R 5 )

       ¦           ¦              ¦               ¦                ¦

circuit     case     current  connection optional





50HZ 60HZ 220V 8A 10A Two Stage Emi Emc Filters For Ac Power Line 0*Q: Fast-on 6.35x0.8mm 50HZ 60HZ 220V 8A 10A Two Stage Emi Emc Filters For Ac Power Line 1S: Screw lug 50HZ 60HZ 220V 8A 10A Two Stage Emi Emc Filters For Ac Power Line 2W: UL1015 18awg



Electrical schematic:





Fig.1  Standard type

50HZ 60HZ 220V 8A 10A Two Stage Emi Emc Filters For Ac Power Line 3



Fig. 2  R5 type



50HZ 60HZ 220V 8A 10A Two Stage Emi Emc Filters For Ac Power Line 4

Mechanical Dimension(Unit: mm)



50HZ 60HZ 220V 8A 10A Two Stage Emi Emc Filters For Ac Power Line 5
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)



50HZ 60HZ 220V 8A 10A Two Stage Emi Emc Filters For Ac Power Line 6

 Packaging:

Power Line Filter: CTN/150pcs

N/G W.: 14.5/16.6KG

Measures:0.565*0.285*0.225m



Shipment:

---Shipping terms: DHL, UPS, FedEx, TNT, EMS

---Port is Shenzhen or as requests.



Our Advantages:

1. Customized: We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2. Listed company: National high-tech enterprises, brand assurance, reliable quality, and

we have the relevant product certifications.

3. Rectification test: We cooperate with top scientific research laboratories to provide free

EMC rectification technical support, samples; and free conduction test.

4. Scale production: Automation technology, scale production, great price, excellent, service,

fast delivery! Free replacement within three months, free maintenance within six years,

life-long maintenance!

5. Certificates: We have got cUL, UL, TUV, CE, CQC, ROHS, ISO9001 approval.

6. Free sample and free EMC rectification can be supplied as your requirement.

7. We can custom products as your requirement, supply OEM and ODM services.
