Place of Origin:
China
Brand Name:
YBX
Certification:
UL, TUV, CE, ROHS, CQC
Model Number:
YB11C2-10A-Q
Contact Us

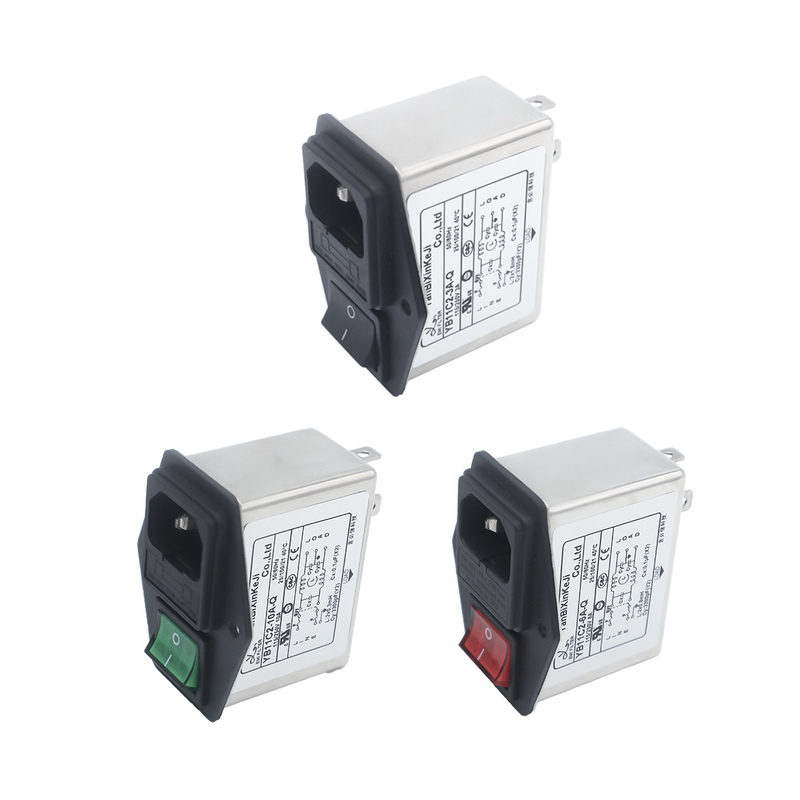

Dual Fuse 220V 10A IEC Inlet Filter Power Entry Module Filter For Audio Equipment
Power Entry Module Filter
Item | Power line IEC socket plug-in EMI Filter |
Model | YB11C2-10A-Q(R5) |
Transfer Function | Low Pass |
Package Type | Surface Mount |
Nominal Center Frequency | 10K-30MHZ |
Insertion Loss | 60~90dB |
Input Impedance | 50Ω |
Rated Voltage | 115V/250V |
Rated Current | 1A, 3A, 6A, 10A |
Environmental Temperature | 40°C |
Temperature Range | 25 / 085 / 21 |
Operating Frequency | 50/60HZ |
Line to Line | 1450VDC |
Line to Ground | 2250VDC |
Maximum Leakage Current | 115VAC/60HZ 0.5uA Max |
MOQ | Negotiable |
Price | Negotiable |
Lead Time | 5~15 weekday |
IEC inlet filters YB-C series:
Electrical schematic:
Standard type
Medical type- R5 type
Product Features:
Typical Applications:
Rule of Nomination:
YB 11 C2 -10A -Q (R 5 G) C1---Single fuse
| | | | | | |
circuit case current output option option option C2---Dual fuse
Q: quick-on
Mechanical Dimension:(Unit: mm)
Insertion loss table(In 50ohm system according to IEC/CISPR No.17):
3A 6A 10A
Sample
-- Sample Fee: Negotiate
-- Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T, L/C
---Please remember to leave the correct contact information for delivery.
Packaging
Power Line Filter: CTN/96pcs
N/G W.: 0.092/0.106KG/pcs
Measures:0.565*0.285*0.225m
Shipment
---Shipping terms: DHL, UPS, FedEx, TNT, EMS
---Port is Shenzhen or as requests.
Factory Pictures:
Our certifications and patents:
Our Advantages:
RFQ:
Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase RFI filter, house appliance noise filter, Medical equipment filter, inver/converter EMC filter, etc.
Q: How is the quality of your product?
A: All our products have pass UL, TUV, CE, ROHS, ISO9001 approval. which ensures the quality of the product.
Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are supplied before-sale
Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.
Q: What facilities do you have?
A: We have our own laboratory and production base to establish large-scale production.
Q: What the delivery time for 1000pcs of EMI FILTER?
A: Normally 15-20 days, but we can coordinate for a better delivery time if it is urgent.
