YB-B Series 10A IEC Inlet Filter With Switch EMI Noise Filter For Electronic Equipment
IEC Inlet Filter With Switch:
YB11B3-6A-Q is a IEC Inlet Filter with switch. It is a compact and easy to install filter that plugs directly into an AC power outlet. Our design standards are in accordance with IEC60601. IEC Standard inlets allow the use of one common input socket to accomodate differing international power cord designs. Using the IEC input ensures that regardless what electrical system it is, there is a standard power cord to fit.
Product Parameters:
| Product name | IEC Socket EMI Filter |
| Model | YB11B3-10A-Q |
| Rated Current | 1A-10A |
| Rated Voltage | 110VAC/250VAC |
| Frequency | 50/60HZ |
| Test Voltage | 1450VDC(line to line) ,2250VAC (line to ground) |
| Insulation Resistance | 50Ω |
| Transfer Function | Low pass |
| Temperature Range | -25°C~+85°C |
| Customization | MOQ≥3000 pcs can be customized |
| Warranty | 180 Days |
Naming Rule:
| YB | 11 | B3 | - | 10A | - | Q |
| | | | | | | | | | | ||
| Single Phase | Circuit | Dimension | Current | Output Connection | ||
| 11:11 circuit | B3 | 6A :6 amp | Q:fast-on tab 250 | |||
| 8A :8 amp | W:wire | |||||
| 10A :10 amp | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg
IEC Inlet Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11B3 | B3 | 1 | Fast-on terminal |
| YB11B3 | B3 | 3 | |
| YB11B3 | B3 | 6 | Wire |
| YB11B3 | B3 | 8 | |
| YB11B3 | B3 | 10 | Solder Lug Terminals |

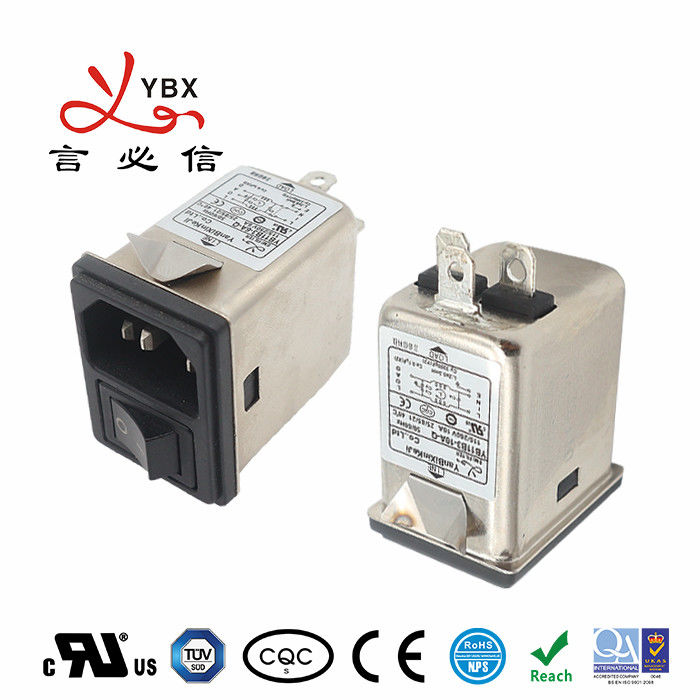

YB11B3-10A-Q Product Picture:
--Home appliances
--Medical equipment
--Lighting equipment
--Communication equipment
Physical Dimensions:
1. Customized:We have a professional R&D team; our aims is we won't let customers spend any extra money.
2. Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.
3. Rectification test: We cooperate with top scientific research laboratories to provide free EMC rectification technical support, samples; and free conduction test.
4. Scale production:Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement within three months, free maintenance within six years, life-long maintenance!
Why Choose Us:
1. After years of efforts of the company's personnel, products successively obtained the cUL,
TUV, CQC, CE, ROSH certifications.
2. We have a professional R&D team; our aim is we won't let customers spend any extra money!
3. National high-tech enterprises, brand assurance, reliable quality, and we have the relevant
Product certifications.
4. We cooperate with top scientific research laboratories to provide free EMC rectification technical
Support, samples; and free conduction test.
5. Automation technology, scale production, great price, excellent, service, fast delivery! Free replacement
Within three months, free maintenance within six years, lifelong maintenance!
FAQ:
Q1: Do you support custom products?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
Q2: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 15 years of production experience.
Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.
Q5: What certifications do you have for your products?
A: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
