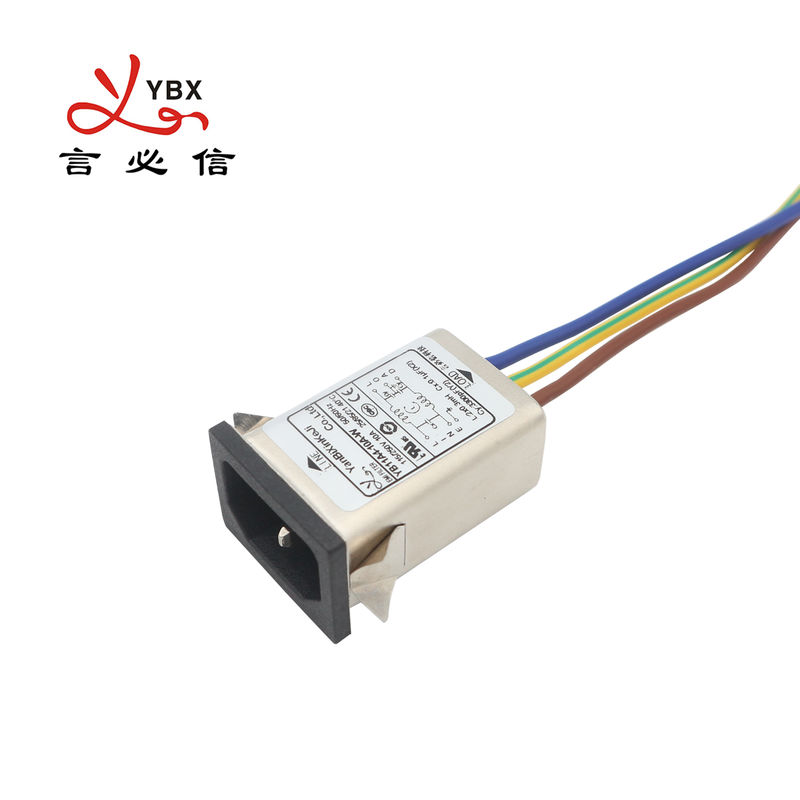

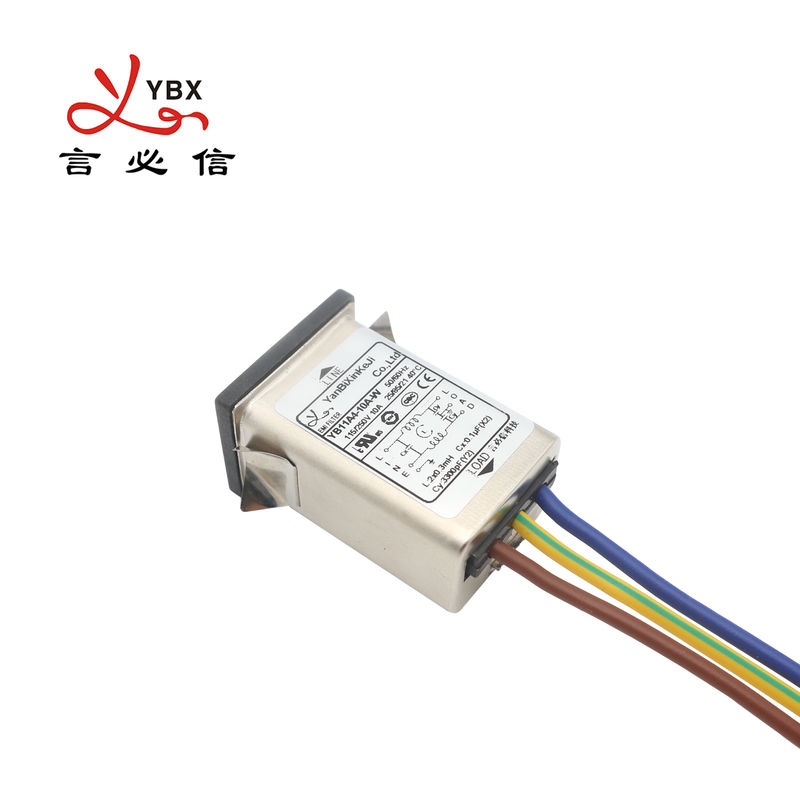

10A 220V Power Line Filter IEC Inlet EMI Filter With Socket For Home Appliance

10A 220V Power Line Filter IEC Inlet EMI Filter With Socket For Home Appliance

emi power line filter

power line filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB11A4-10A-Q

Contact Us

Request A Quote
Product Details
PN:
YB11A4-10A-Q
Rated Voltage:
115V/250V
Current:
1A 3A 6A 8A 10A 15A
Environmental Temperature:
40°C
Port:
SHENZHEN
Line To Line:
1450VDC
Line To Ground:
2000VAC
Approval:
ISO9001:2008 CUL TUV CQC CE ROHS
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
15-25 days
Payment Terms
L/C, T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

10A 220V Power Line Filter IEC Inlet EMI Filter With Socket For Home Appliance



Technical Specification:



Item YB-A IEC Inlet EMI Filter
Model YB11A4-10A-W
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115VAC/250VAC
Rated Current 1A 3A 6A 8A 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.2mA Max
MOQ 500pcs
Price USD1~2/Meter
Lead Time 5~15 weekday



Features:



-- Excellent performance/compact structure;



-- High performance and high attenuation power filters with IEC 320 socket;



-- (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing;



-- There are a variety of parts and combinations to meet different customer's EMC tests.



Typical Applications:



-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances;



-- Medical equipment;



-- Test and measurement equipment;



-- Small and medium-sized machines and household equipment



Rule of Nomination:



YB-----11-------A4------10A---------Q-----------(  R  5  G  )

              ¦             ¦              ¦                 ¦                    ¦    ¦    ¦

         circuit     case     current  connection         optional



Tabulates:



Model No. Rated Current
@40°C

Terminal Options Bleeder resistor (optional)     G (optional) Leakage current 250V/50Hz Electrical Schematic

Rated Voltage(V) Operating Frequency(Hz)


YB11A3-1A 1A Q S W - -















<0.8mA

Fig.1















115/250V















50/60Hz

YB11A3-2A 2A Q S W - - Fig.1
YB11A3-3A 3A Q S W - - Fig.1
YB11A3-4A 4A Q S W - - Fig.1
YB11A3-6A 6A Q S W - - Fig.1
YB11A3-8A 8A Q S W - - Fig.1
YB11A3-10A 10A Q S W - - Fig.1
YB11A3-15A 15A Q S W - - Fig.1
YB11A4-1A 1A Q S W - - Fig.1
YB11A4-2A 2A Q S W - - Fig.1
YB11A4-3A 3A Q S W - - Fig.1
YB11A4-4A 4A Q S W - - Fig.1
YB11A4-6A 6A Q S W - - Fig.1
YB11A4-8A 8A Q S W - - Fig.1
YB11A4-10A 10A Q S W - - Fig.1
YB11A4-15A 15A Q S W - - Fig.1


Electrical Schematic:



10A 220V Power Line Filter IEC Inlet EMI Filter With Socket For Home Appliance 0

                  Fig.1



10A 220V Power Line Filter IEC Inlet EMI Filter With Socket For Home Appliance 1

                  Fig.2



Mechanical Dimension(Unit: mm)



10A 220V Power Line Filter IEC Inlet EMI Filter With Socket For Home Appliance 2



Case A B C D E F G H I J K
A3 56 28.5 21 31 24   12.7 11.8 13.5 3.2 6.3*0.8
A4 56 28.5 21 31 24   12.7 11.8 13.5 3.2 6.3*0.8
 Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



10A 220V Power Line Filter IEC Inlet EMI Filter With Socket For Home Appliance 3
