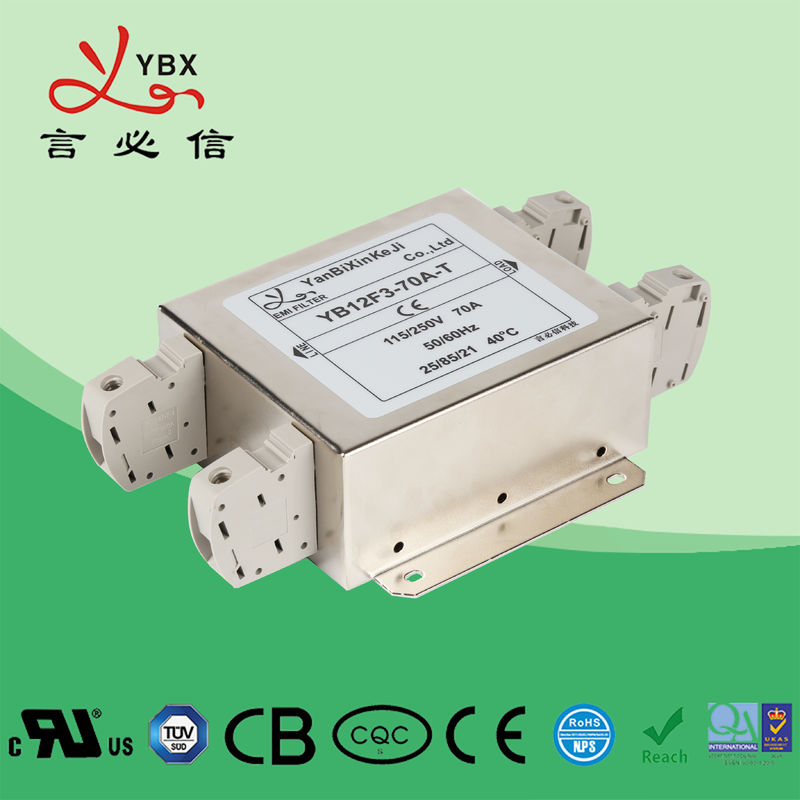

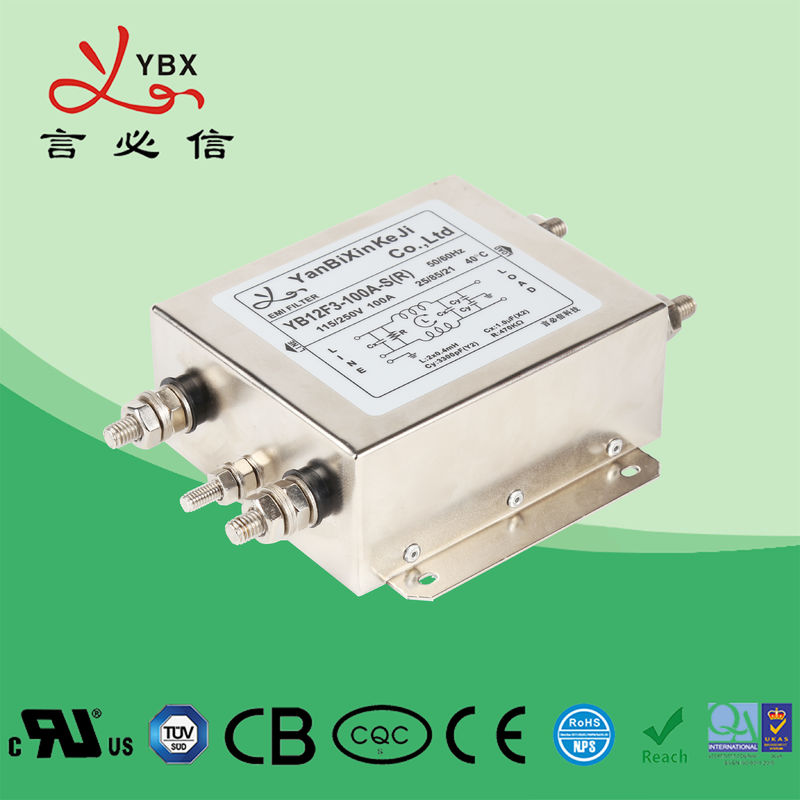

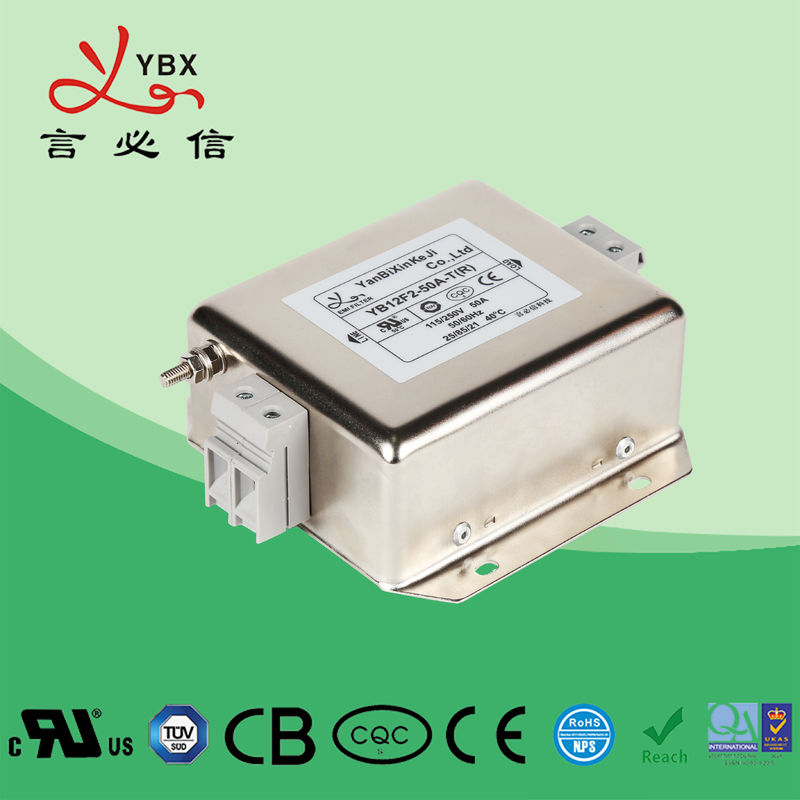

Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C

Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C

ac power line noise filter

ac power supply filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB41F2-20A-T

Contact Us

Request A Quote
Product Details
Item:
YB41F2-20A-T
Rated Current:
1A-50A
Case:
Metal
Line To Line:
1450DVC
Certificate:
ISO9001 CUL TUV CQC CE ROHS
Port:
Shenzhen, China
Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Product Description

250, 440, 480VAC 20A Noise EMC Passive Power Three Phase Output Inverter Filter



Technical Specification:



Item Power line Filter
Model Power line Filter YB-D/F
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~50A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 50pcs
Price USD1.65~18.8/Meter
Lead Time 5~15 weekday



Features:



-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device



-- Various terminal options allow you to select



-- There are a variety of parts and combinations to meet different customer's EMC tests.



-- Customized products according to customer's requirements.



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Building automation



-- Office automation and datacom equipment



Rule of Nomination:



YB    24    E4   -   10A    -     Q            (  5  )

            ¦        ¦               ¦              ¦                   ¦ ¦

     circuit  case     current connection optional



Tabulates:

Model No. Rated Current
@40°C
Terminal Options* Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB41D3-1A 1A Q S W













<1.0mA

Fig.1













115/250V













50/60Hz

YB41D3-2A 2A Q S W Fig.1
YB41D4-3A 3A Q S W Fig.1
YB41D4-4A 4A Q S W Fig.1
YB41D4-6A 6A Q S W Fig.1
YB41D5-8A 8A Q S W Fig.1
YB41D5-10A 10A Q S W Fig.1
YB41D5-15A 15A Q S W Fig.1
YB41D6-10A 10A Q S W Fig.1
YB41D6-15A 15A Q S - Fig.1
YB41F2-20A 20A Q S T Fig.1
YB41F2-25A 25A - S T Fig.1
YB41F3-30A 30A - S T Fig.1







Medical Type Tabulates:

Model No. Rated Current
@40°C

Terminal Options Medical equipment
5
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB41D3-1A-x(5) 1A Q S W 5











<5μA

Fig.2











115/250V











50/60Hz

YB41D3-2A-x(5) 2A Q S W 5 Fig.2
YB41D4-3A-x(5) 3A Q S W 5 Fig.2
YB41D4-4A-x(5) 4A Q S W 5 Fig.2
YB41D4-6A-x(5) 6A Q S W 5 Fig.2
YB41D5-8A-x(5) 8A Q S W 5 Fig.2
YB41D5-10A-x(5) 10A Q S W 5 Fig.2
YB41D5-15A-x(5) 15A Q S W 5 Fig.2
YB41D6-10A-x(5) 10A Q S W 5 Fig.2
YB41D6-15A-x(5) 15A Q S - 5 Fig.2
YB41F2-20A-x(5) 20A Q S T 5 Fig.2

Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C 0*Q: Fast-on 6.35x0.8mm            Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C 1  S: Screw lug           Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C 2 T: Terminal block



Electrical schematic:



Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C 3

                                        Fig.1





Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C 4

                                     Fig.2





Mechanical Dimension(Unit: mm)



Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C 5



Case D3 D4 D5 D6 F2 F3 Tolerances
A 63 63 73 94 98 150 ±1
B 51 51 56 55 80 105 ±1
C 29 38 45 45 41 60 ±1
D 75 75 87 104 95 120 ±0.15
E 85 85 98 118 50 80 ±1
F 25 27 30 30 50 60 ±0.5
G 10 15.5 16 15 24 35 ±0.5
H 5 4.5 4.5 4.5*6 4.2 4*6 ±0.15
I         4.2*6.2 4*6 ±0.15
J         M4/M6 M4/M6
K 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 ±0.15
L         50 60 ±2







Insertion loss table(In 50ohm system according IEC/CISPR No.17)

                                 Common mode                            -------- differential mode



                                   1A

     Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C 6



                                 10A                                                                                  15A

    Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C 7                          Three Phase Emi Filter Rated Current 1-50A Environmental Temperature 40°C 8
