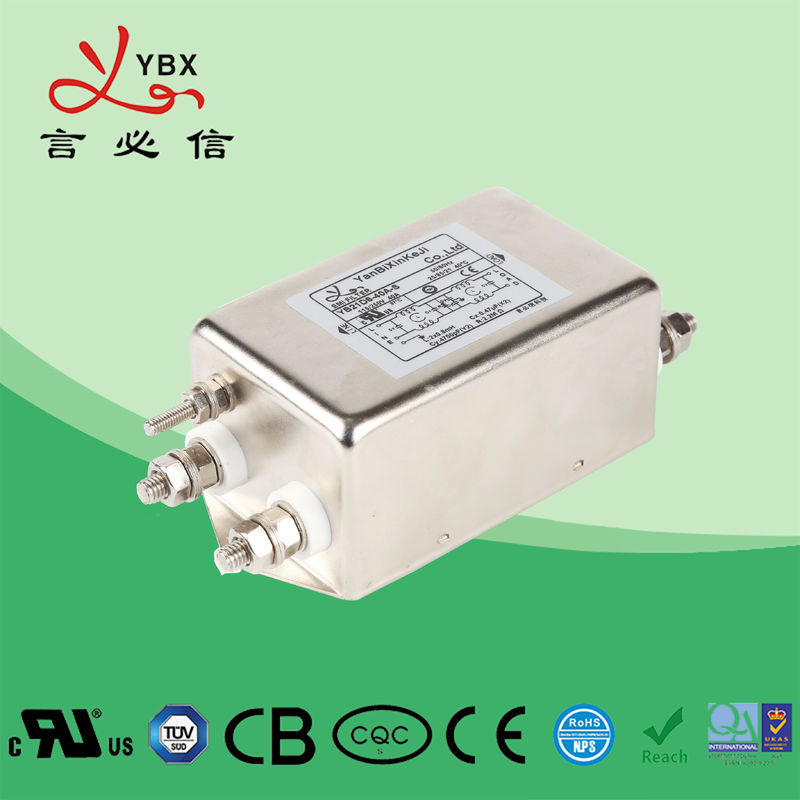

15A AC Power Noise Filter Excellent Differential Common Mode Attenuation

15A AC Power Noise Filter Excellent Differential Common Mode Attenuation

ac power line noise filter

ac power supply filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB42D6-15A-Q

Contact Us

Request A Quote
Product Details
Item:
YB42D6-15A-Q
Rated Current:
1A-30A
Case:
Metal Case
Brand:
YANBIXIN
Certificate:
ISO9001 CUL TUV CQC CE ROHS
Port:
SHENZHEN
Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Product Description

15A AC Power Noise Filter With Excellent Differential And Common Mode Attenuation



Technical Specification:



Item Power line Filter
Model Power line Filter YB-D/F
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~50A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 50pcs
Price USD3~21.8/Meter
Lead Time 5~15 weekday



Features:



-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device



-- Various terminal options allow you to select



-- There are a variety of parts and combinations to meet different customer's EMC tests.



-- Customized products according to customer's requirements.



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Building automation



-- Office automation and datacom equipment



Rule of Nomination:



YB    42    D3   -   10A    -     Q            (  5  )

            ¦        ¦               ¦              ¦                   ¦ ¦

     circuit  case     current connection optional



Tabulates:



Model No. Rated Current
@40°C
Terminal Options* Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB42D3-1A 1A Q S W













<1.0mA

Fig.1













115/250V













50/60Hz

YB42D3-2A 2A Q S W Fig.1
YB42D4-3A 3A Q S W Fig.1
YB42D4-4A 4A Q S W Fig.1
YB42D4-6A 6A Q S W Fig.1
YB42D5-8A 8A Q S W Fig.1
YB42D5-10A 10A Q S W Fig.1
YB42D5-15A 15A Q S W Fig.1
YB42D6-10A 10A Q S W Fig.1
YB42D6-15A 15A Q S - Fig.1
YB42F2-20A 20A Q S T Fig.1
YB42F2-25A 25A - S T Fig.1
YB42F3-30A 30A - S T Fig.1



Medical Type Tabulates:

Model No. Rated Current
@40°C
Terminal Options Medical equipment
5
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB42D3-1A-x(5) 1A Q S W 5









<5μA

Fig.2









115/250V









50/60Hz

YB42D3-2A-x(5) 2A Q S W 5 Fig.2
YB42D4-3A-x(5) 3A Q S W 5 Fig.2
YB42D4-4A-x(5) 4A Q S W 5 Fig.2
YB42D4-6A-x(5) 6A Q S W 5 Fig.2
YB42D5-8A-x(5) 8A Q S W 5 Fig.2
YB42D5-10A-x(5) 10A Q S W 5 Fig.2
YB42D5-15A-x(5) 15A Q S W 5 Fig.2
YB42D6-10A-x(5) 10A Q S W 5 Fig.2
YB42D6-15A-x(5) 15A Q S - 5 Fig.2
YB42F2-20A-x(5) 20A Q S - 5 Fig.2

15A AC Power Noise Filter Excellent Differential Common Mode Attenuation 0*Q: Fast-on 6.35x0.8mm            15A AC Power Noise Filter Excellent Differential Common Mode Attenuation 1  S: Screw lug           15A AC Power Noise Filter Excellent Differential Common Mode Attenuation 2 W: UL1015 18awg



Electrical schematic:



15A AC Power Noise Filter Excellent Differential Common Mode Attenuation 3

                                        Fig.1





15A AC Power Noise Filter Excellent Differential Common Mode Attenuation 4

                                     Fig.2





Mechanical Dimension(Unit: mm)



15A AC Power Noise Filter Excellent Differential Common Mode Attenuation 5




Case D3 D4 D5 D6 F2 F3 Tolerances
A 63 63 73 94 98 150 ±1
B 51 51 56 55 80 105 ±1
C 29 38 45 45 41 60 ±1
D 75 75 87 104 95 120 ±0.15
E 85 85 98 118 50 80 ±1
F 25 27 30 30 50 60 ±0.5
G 10 15.5 16 15 24 35 ±0.5
H 5 4.5 4.5 4.5*6 4.2 4*6 ±0.15
I         4.2*6.2 4*6 ±0.15
J         M4/M6 M4/M6
K 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 ±0.15
L         50 60 ±2







Insertion loss table(In 50ohm system according IEC/CISPR No.17)

                                 Common mode                            -------- differential mode



                                   1A

     15A AC Power Noise Filter Excellent Differential Common Mode Attenuation 6



                                 10A                                                                                  15A

    15A AC Power Noise Filter Excellent Differential Common Mode Attenuation 7                          15A AC Power Noise Filter Excellent Differential Common Mode Attenuation 8
