10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet

10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet

ac power line filter

ac power supply filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB42F1-10A-S

Contact Us

Request A Quote
Product Details
Item:
YB42F1-10A-S
Rated Current:
1A-20A
Case:
Metal Case
Brand:
YANBIXIN
Certificate:
ISO9001 CUL TUV CQC CE ROHS
Port:
SHENZHEN
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
15-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Product Description

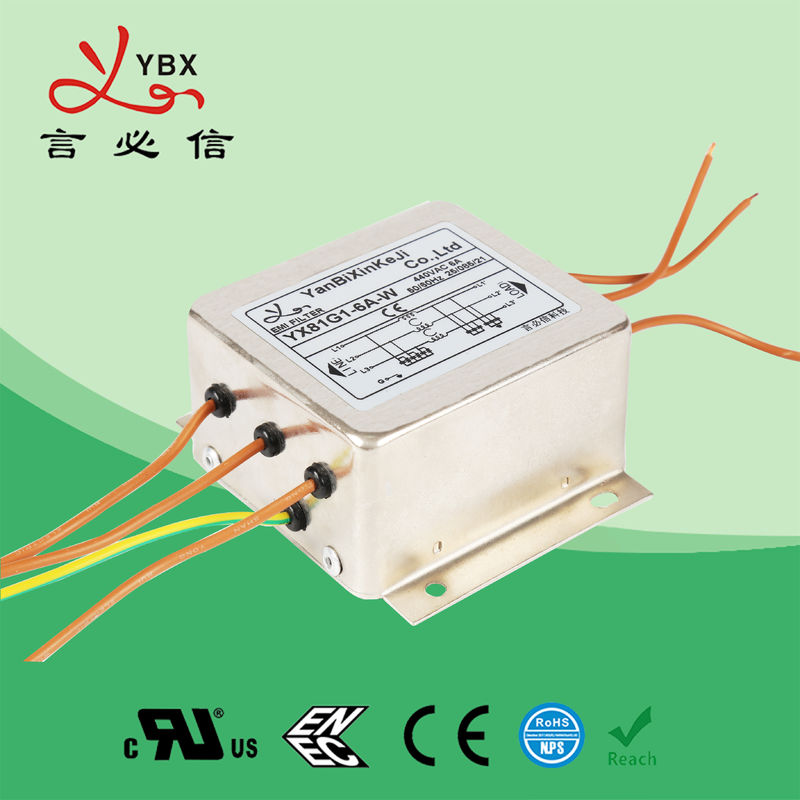

Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet​



Technical Specification:



Item Power line Filter
Model Power line Filter YB-D/F
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 8A,10A, 15A,20A,30A, 40A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ Negotiable
Price Negotiable
Lead Time 5~15 weekday



Features:



--  Using multi-stage filter circuit, with excellent common mode and differential mode noise suppression, general purpose power line filter with fast-on/stud/wire terminals



--  Standard filters are a practical solution, which can helping you to pass EMI



--  There are a variety of parts and combinations to meet different customer's EMC tests



--  Customized products according to customer's requirements.



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Building automation



-- Office automation and datacom equipment



-- Various noisy applications requiring high filter performance



Rule of Nomination:



YB    42    D3   -   10A    -     Q            (  5  )

            ¦        ¦               ¦              ¦                   ¦ ¦

     circuit  case     current connection optional



Tabulates:



Model No. Rated Current
@40°C
Terminal Options* Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB42D3-1A 1A Q S W













<1.0mA

Fig.1













115/250V













50/60Hz

YB42D3-2A 2A Q S W Fig.1
YB42D4-3A 3A Q S W Fig.1
YB42D4-4A 4A Q S W Fig.1
YB42D4-6A 6A Q S W Fig.1
YB42D5-8A 8A Q S W Fig.1
YB42D5-10A 10A Q S W Fig.1
YB42D5-15A 15A Q S W Fig.1
YB42D6-10A 10A Q S W Fig.1
YB42D6-15A 15A Q S - Fig.1
YB42F2-20A 20A Q S T Fig.1
YB42F2-25A 25A - S T Fig.1
YB42F3-30A 30A - S T Fig.1



Medical Type Tabulates:

Model No. Rated Current
@40°C
Terminal Options Medical equipment
5
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB42D3-1A-x(5) 1A Q S W 5









<5μA

Fig.2









115/250V









50/60Hz

YB42D3-2A-x(5) 2A Q S W 5 Fig.2
YB42D4-3A-x(5) 3A Q S W 5 Fig.2
YB42D4-4A-x(5) 4A Q S W 5 Fig.2
YB42D4-6A-x(5) 6A Q S W 5 Fig.2
YB42D5-8A-x(5) 8A Q S W 5 Fig.2
YB42D5-10A-x(5) 10A Q S W 5 Fig.2
YB42D5-15A-x(5) 15A Q S W 5 Fig.2
YB42D6-10A-x(5) 10A Q S W 5 Fig.2
YB42D6-15A-x(5) 15A Q S - 5 Fig.2
YB42F2-20A-x(5) 20A Q S - 5 Fig.2

10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 0*Q: Fast-on 6.35x0.8mm            10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 1  S: Screw lug           10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 2 W: UL1015 18awg



Electrical schematic:

                                Fig.1  Standard type

10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 3



                               Fig.2   Medical type



10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 4





Mechanical Dimension(Unit: mm)



10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 5




Case D3 D4 D5 D6 F2 F3 Tolerances
A 63 63 73 94 98 150 ±1
B 51 51 56 55 80 105 ±1
C 29 38 45 45 41 60 ±1
D 75 75 87 104 95 120 ±0.15
E 85 85 98 118 50 80 ±1
F 25 27 30 30 50 60 ±0.5
G 10 15.5 16 15 24 35 ±0.5
H 5 4.5 4.5 4.5*6 4.2 4*6 ±0.15
I         4.2*6.2 4*6 ±0.15
J         M4/M6 M4/M6
K 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 ±0.15
L         50 60 ±2







Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

                                 Common mode                            -------- differential mode

10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 6



10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 7

10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 810 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 9



The packing pictures:

10 ampere Enhanced performance EMC EMI AC Power Line Noise Filter three Stage with high attenuation For Control Cabinet 10



FAQ:

Q: What are the main products of your company?

A: IEC inlet socket EMI filter, single-phase filter, Three-phase RFI filter, house appliance noise filter, Medical equipment filter, inverter/converter EMC filter, etc.



Q: What is the function of your product EMC/EMI/noise filter?

A: The function of power line filters is to filter the electromagnetic interference, ensuring that your equipment is working properly without interference with each other



Q: Are your products belong to high-quality

A: Yes, our products have passed UL, TUV, CE, ROHS, CQC approval. our customers like Hisense, Foxconn recognize our products well.



Q: What are services available for pre-batch orders?

A: Free samples and EMC technical rectification services are supplied before-sale



Q: What are services available after-sale?

A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.



Q: Do you supply OEM/ODM services?

A:  Yes, we can do OEM/ODM only if you meet our MOQ request for OEM/ODM customers



Q: Can you provide Research and development New product service?

A:  Yes, Our R&D team can custom product as your requirement.
