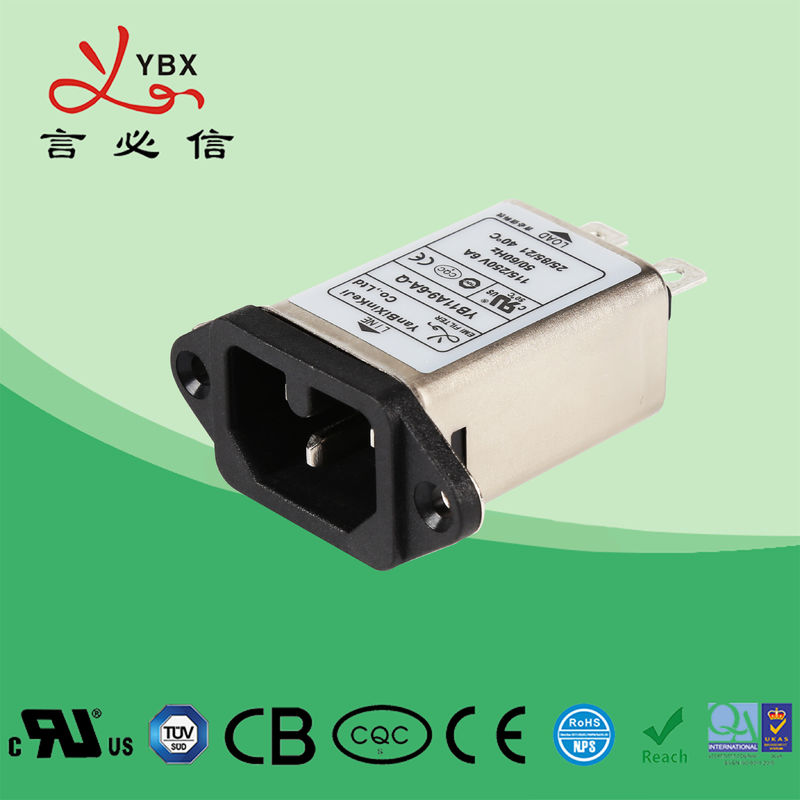

Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter

Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter
Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter

Large Image :  Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter

Product Details:
Place of Origin: China
Brand Name: YBX
Certification: cUL, TUV, CQC, CE, ROHS
Model Number: YB11A9-10A-Q
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 56.5*28.5*22.5cm
Delivery Time: 20-25 days
Payment Terms: T/T, L/C
Supply Ability: 10000 Piece/Pieces per Month

Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter

Description
Item: YB11A9-10A-Q Rated Current: 1A-10A
Rated Voltage: 115V Operating Frequency: 50/60HZ
Line To Line: 1450DVC Port: Shenzhen
High Light:

power entry filter

,

emi emc filter

Electronic 10A Inline EMI Filter YB11A9 Washing Machine Use Emi AC RFI Filters



Technical Specification:



Item IEC Filter
Model IEC Filter YB-A
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 100pcs
Price USD1~5.8/Meter
Lead Time 5~15 weekday



Features:



1.  High performance and high attenuation power filters with IEC 320 socket



2.  (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing



3.  There are a variety of parts and combinations to meet different customer's EMC tests



4.  Customized products according to customer's requirements



Typical Applications:



-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances



-- Medical equipment



-- Test and measurement equipment



-- Small and medium-sized machines and household equipment





Rule of Nomination:



YB   11    A7      -    10A   -    Q          ( R  5  G )

           ¦        ¦                  ¦             ¦                ¦    ¦    ¦

    circuit   case     current  connection optional



Tabulates:

Model No. Rated Current
@40°C
Terminal Options*

Bleeder resistor

(optional)


G
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB11A9-1A 1A Q S W - -







<0.8mA

Fig.1







115/250V







50/60Hz

YB11A9-2A 2A Q S W - - Fig.1
YB11A9-3A 3A Q S W - - Fig.1
YB11A9-4A 4A Q S W - - Fig.1
YB11A9-6A 6A Q S W - - Fig.1
YB11A9-8A 8A Q S W - - Fig.1
YB11A9-10A 10A Q S W - - Fig.1
YB11A9-15A 15A Q S W - - Fig.1



Medical type Tabulates:



Model No. Rated Current
@40°C
Terminal Options

Bleeder resistor

(optional)

Medical equipment
5

G
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB11A9-1A-x(R5) 1A Q S W 1 5 -







<5μA

Fig.2







115/250V







50/60Hz

YB11A9-2A-x(R5) 2A Q S W 1 5 - Fig.2
YB11A9-3A-x(R5) 3A Q S W 1 5 - Fig.2
YB11A9-4A-x(R5) 4A Q S W 1 5 - Fig.2
YB11A9-6A-x(R5) 6A Q S W 1 5 - Fig.2
YB11A9-8A-x(R5) 8A Q S W 1 5 - Fig.2
YB11A9-10A-x(R5) 10A Q S W 1 5 - Fig.2
YB11A9-15A-X(R5) 15A Q S W 1 5 - Fig.2



Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 0*Q: Fast-on 6.35x0.8mm             Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 1  S: solder 4.0x0.8mm        Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 2 W: UL1015 18awg



Electrical schematic:



Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 3

                        Fig.1







Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 4

                        Fig.2



Mechanical Dimension(Unit: mm)



Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 5




Case A B C D E F G H I J K L M N
A9 58 28.5  21    50 40 22.4  12.7 11.8 13.5  3.2 6.35*0.8
Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15 ±1 ±1 ±0.5





Insertion loss table(In 50ohm system according IEC/CISPR No.17)



                     Common mode                              -------- differential mode



                               1A                                                                  3A

  Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 6        Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 7



                                6A                                                                   8A

  Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 8         Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 9



                               10A                                                                 15A

   Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 10         Yanbixin Electronic 10A Inline EMI Filter / Washing Machine EMI AC RFI Filter 11
