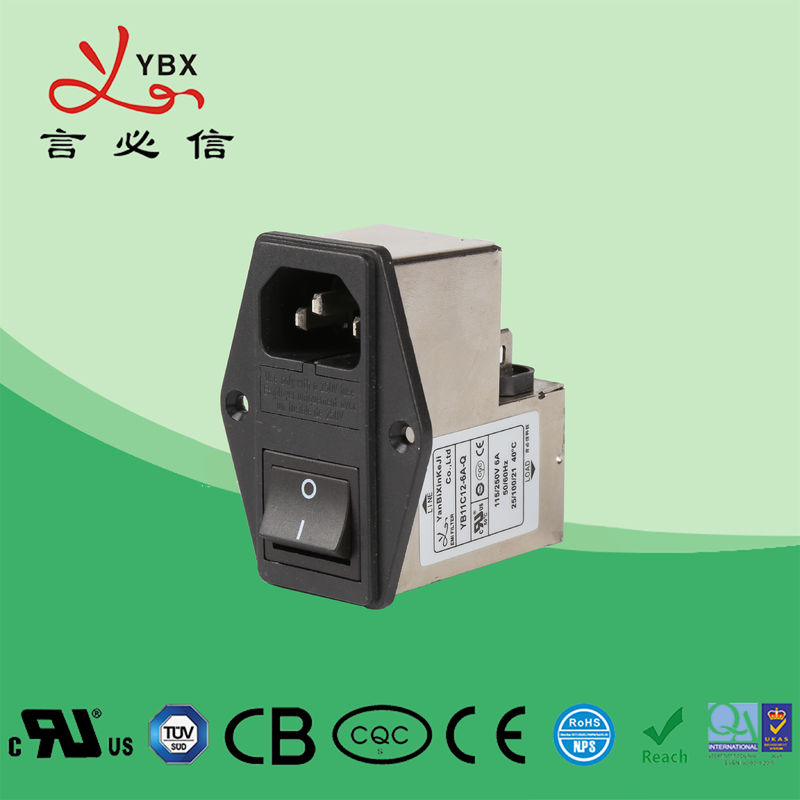

Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC

Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC

power entry filter

emi emc filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB11C12-3A-Q

Contact Us

Request A Quote
Product Details
Item:
YB11C12-3A-Q
Rated Current:
1A-10A
Rated Voltage:
115V
Operating Frequency:
50/60HZ
Line To Line:
1450DVC
Port:
Shenzhen
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month
Product Description

Inline EMI Filter Passive Filter With Socket And Switch 6A 120 250VAC



Technical Specification:



Item IEC Filter
Model IEC Filter YB-C
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 100pcs
Price USD1~9.8/Meter
Lead Time 5~15 weekday



Features:



1. The products have high attenuation, based on chokes with high saturation resistance and excellent thermal behavior



2.  (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing



3. There are a variety of parts and combinations to meet different customer's EMC tests



4.  Customized products according to customer's requirements



Typical Applications:



--  Portable electrical and electronic equipment



--  Medical equipment



--  Test and measurement equipment



--  Small and medium-sized machines and household equipment





Rule of Nomination:



YB   11    C11      -    10A   -    Q          ( R  5  G )

           ¦        ¦                  ¦             ¦                ¦    ¦    ¦

    circuit   case     current  connection optional



C9/C11: one Fuse



C10/12: Two Fuses



Tabulates:

Model No. Rated Current
@40°C

Terminal Options*

Bleeder resistor

(optional)


G
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB11C11-1A 1A Q S - - -















<0.8mA

Fig.1















115/250V















50/60Hz

YB11C11-2A 2A Q S - - - Fig.1
YB11C11-3A 3A Q S - - - Fig.1
YB11C11-4A 4A Q S - - - Fig.1
YB11C11-6A 6A Q S - - - Fig.1
YB11C11-8A 8A Q S - - - Fig.1
YB11C11-10A 10A Q S - - - Fig.1
YB11C12-1A 1A Q S - - - Fig.1
YB11C12-2A 2A Q S - - - Fig.1
YB11C12-3A 3A Q S - - - Fig.1
YB11C12-4A 4A Q S - - - Fig.1
YB11C12-6A 6A Q S - - - Fig.1
YB11C12-8A 8A Q S - - - Fig.1
YB11C12-10A 10A Q S - - - Fig.1





Medical type Tabulates:

Model No. Rated Current
@40°C
Terminal Options

Bleeder resistor

(optional)

Medical equipment
5

G
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)




YB11C11-1A-x(R5) 1A Q S - 1 5 -















<5μA

Fig.2















115/250V















50/60Hz

YB11C11-2A-x(R5) 2A Q S - 1 5 - Fig.2
YB11C11-3A-x(R5) 3A Q S - 1 5 - Fig.2
YB11C11-4A-x(R5) 4A Q S - 1 5 - Fig.2
YB11C11-6A-x(R5) 6A Q S - 1 5 - Fig.2
YB11C11-8A-x(R5) 8A Q S - 1 5 - Fig.2
YB11C11-10A-x(R5) 10A Q S - 1 5 - Fig.2
YB11C12-1A-x(R5) 1A Q S - 1 5 - Fig.2
YB11C12-2A-x(R5) 2A Q S - 1 5 - Fig.2
YB11C12-3A-x(R5) 3A Q S - 1 5 - Fig.2
YB11C12-4A-x(R5) 4A Q S - 1 5 - Fig.2
YB11C12-6A-x(R5) 6A Q S - 1 5 - Fig.2
YB11C12-8A-x(R5) 8A Q S - 1 5 - Fig.2
YB11C12-10A-x(R5) 10A Q S - 1 5 - Fig.2





Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 0*Q: Fast-on 6.35x0.8mm             Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 1  S: solder 4.0x0.8mm        Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 2 W: UL1015 18awg



Electrical schematic:



Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 3

                        Fig.1







Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 4

                        Fig.2



Mechanical Dimension(Unit: mm)

Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 5



Case A B C D E F G H I J K
C11/C12 54 62 29 50 40 68 15.5 11   3.7 6.35*0.8
Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15







Insertion loss table(In 50ohm system according IEC/CISPR No.17)



                     Common mode                              -------- differential mode



                               1A                                                                  3A

  Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 6        Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 7



                                6A                                                                   8A

  Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 8         Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 9



                               10A                                                                 15A

   Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 10         Yanbixin EMI Passive Inline Power Filter With Socket And Switch 6A 120 250VAC 11
