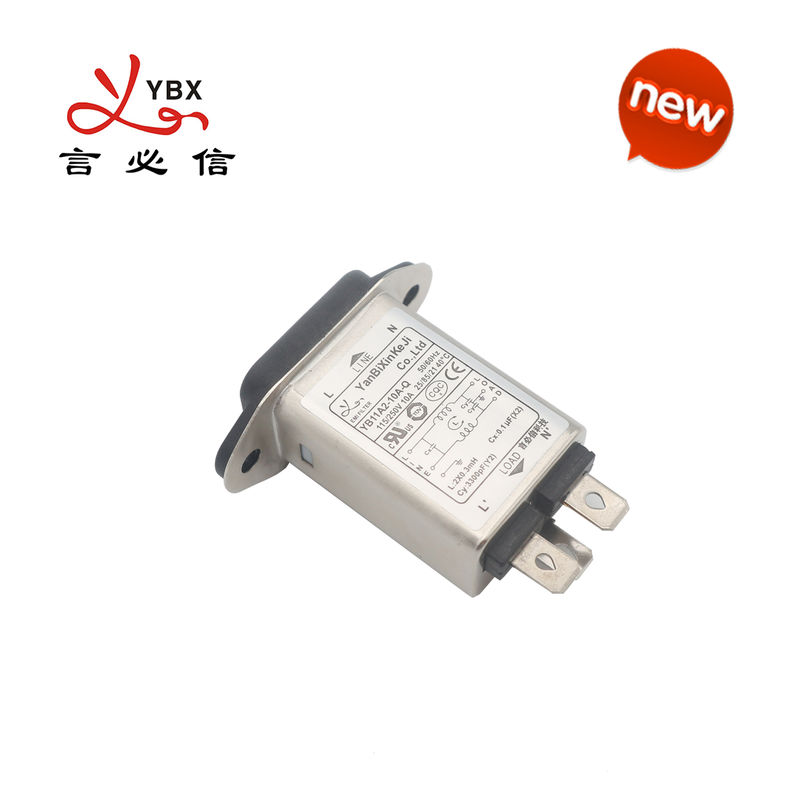

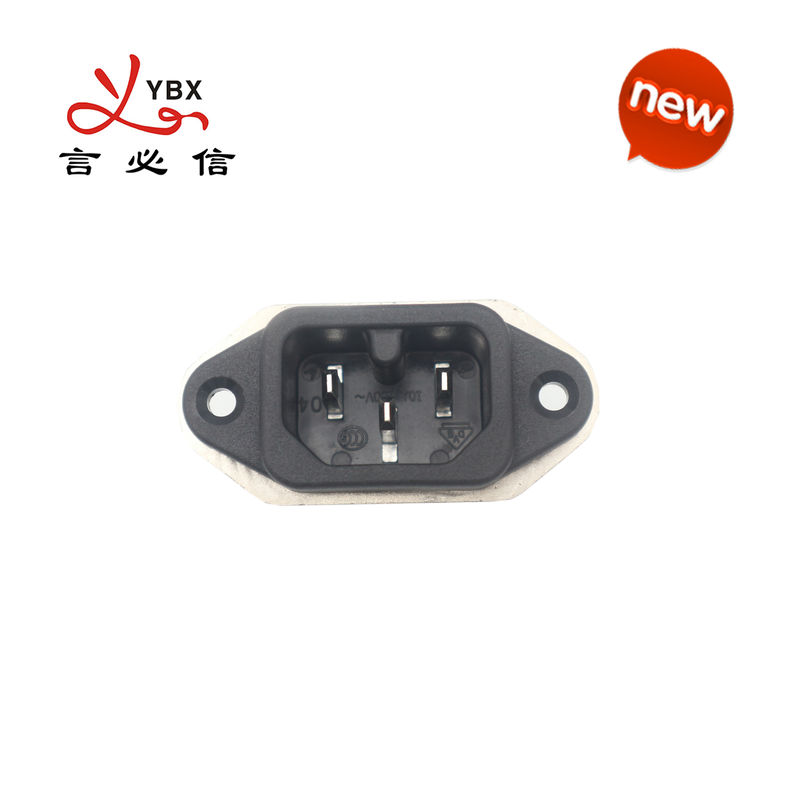

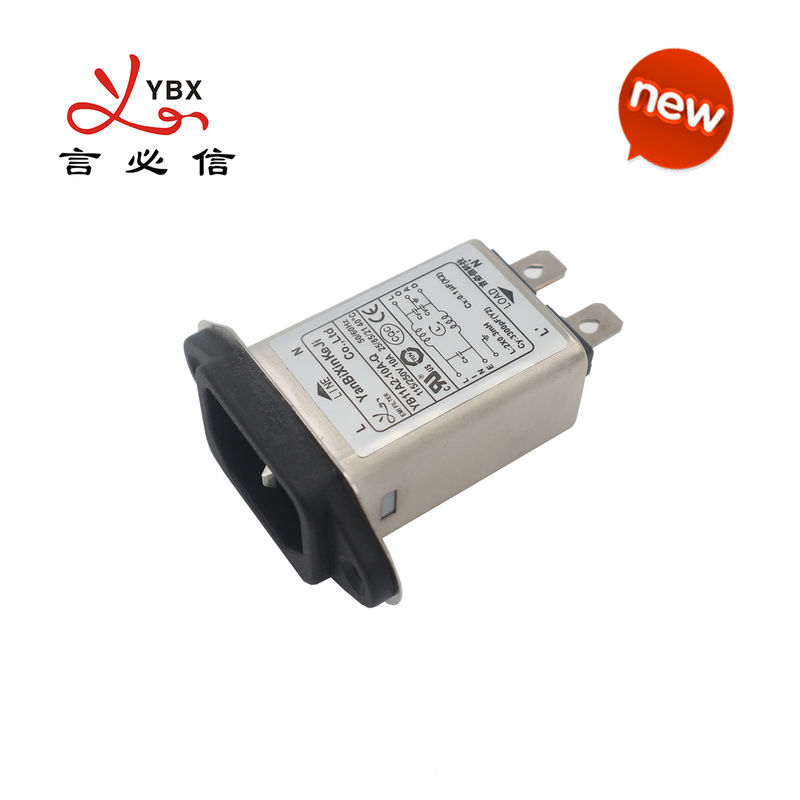

50/60Hz IEC C13 Inlet Filter 1A~10A Socket EMI Noise Filter For Home Appliance

50/60Hz IEC C13 Inlet Filter 1A~10A Socket EMI Noise Filter For Home Appliance

emi power line filter

power line filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB11A2-10A-Q

Contact Us

Request A Quote
Product Details
Product:
IEC 320 Inlet Filter
Current:
1A-15A
Environmental Temperature:
50°C
MOQ:
100pcs
Certificate:
CUL TUV CQC CE ROHS ISO9001
Operating Temperature:
-25℃~+80℃
Insertion Loss:
30-100dB
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month DC 220V General Purpose Noise Filter
Product Description
50/60Hz IEC C13 Inlet Filter 1A~10A Socket EMI Noise Filter For Home Appliance 0
1.YBX offers the widest selection of EMC/EMI filters in the world. Standardized and customer-specific solutions - with full engineering support - help to meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.

2.Deeply cultivated in the EMI filter industry for 15 years, our products have obtained UL,CQC,CE,TUV,ROSH,ISO9001:2015 certification.

3.We have a professional design team and testing instruments, and provide EMC testing for free.

4.The production workshop covers an area of 3,000 square meters, with large-scale production, favorable price, good service and fast delivery.

5.YBX provides free EMI filter samples and a half-year replacement and lifetime warranty.
Product Paramenters
Product name
YB-A Series IEC Inlet Filter
Model
YB11A2-10A-Q
Transfer Function
Low Pass
Package Type
Surface Mount
Nominal Center Frequency
150K-30MHZ
Insertion Loss
60~90dB
Input Impedance
50Ω
Rated Voltage
115V/220V
Rated Current
1A-15A
Environmental Temperature
40°C
Temperature Range
25 / 085 / 21
Operating Frequency
50/60HZ
Line to Line
1450VDC
Line to Ground
2250VDC
Maximum Leakage Current
115VAC/60HZ 0.4mA Max. 250VAC/60HZ 0.8mA Max
MOQ
5pcs
Rule of Nomination:
YB
11
A2
10A
S
|
|
|

|

|
Single Phase
Circuit
Dimension

3A :3 amps

Output connection

11:11 circuit
A2

6A :6 amps

Q: Fast-on terminal




10A :10 amps

W: Wire






S: Solder Lug Terminals
EMI Filter Selection Table:
Model No.
Rated Current
@40°C
Terminal Options*
Bleeder resistor(optional)
Leakage current 250V/50Hz
Electrical Schematic
Rated Voltage(V)
Operating Frequency(Hz)



YB11A1-1A
1A
Q
S
W
-












<0.8mA
Fig.1











115/250V











50/60Hz
YB11A1-2A
2A
Q
S
W
-
Fig.1
YB11A1-3A
3A
Q
S
W
-
Fig.1
YB11A1-4A
4A
Q
S
W
-
Fig.1
YB11A1-6A
6A
Q
S
W
-
Fig.1
YB11A1-8A
8A
Q
S
W
-
Fig.1
YB11A1-10A
10A
Q
S
W
-
Fig.1
YB11A1-15A
15A
Q
S
W
-
Fig.1
YB11A2-1A
1A
Q
S
W
-
Fig.1
YB11A2-2A
2A
Q
S
W
-
Fig.1
YB11A2-3A
3A
Q
S
W
-
Fig.1
YB11A2-4A
4A
Q
S
W
-
Fig.1
YB11A2-6A
6A
Q
S
W
-
Fig.1
YB11A2-8A
8A
Q
S
W
-
Fig.1
YB11A2-10A
10A
Q
S
W
-
Fig.1
YB11A2-15A
15A
Q
S
W
-
Fig.1
50/60Hz IEC C13 Inlet Filter 1A~10A Socket EMI Noise Filter For Home Appliance 1
50/60Hz IEC C13 Inlet Filter 1A~10A Socket EMI Noise Filter For Home Appliance 2

50/60Hz IEC C13 Inlet Filter 1A~10A Socket EMI Noise Filter For Home Appliance 3
50/60Hz IEC C13 Inlet Filter 1A~10A Socket EMI Noise Filter For Home Appliance 4
50/60Hz IEC C13 Inlet Filter 1A~10A Socket EMI Noise Filter For Home Appliance 5
50/60Hz IEC C13 Inlet Filter 1A~10A Socket EMI Noise Filter For Home Appliance 6
Products Catergory
Company Profile



Shenzhen Yanbixin Technology Co., Ltd

Modern electronic products are in line with the miniaturization, high performance, high precision, high reliability, and high reactivity as the goal, so that the distribution density of circuit components is too high, the volume of the circuit is greatly reduced, but the more lightweight circuit becomes, there will be more components crowded in a small space, increasing the opportunity for interference, among which electromagnetic interference and noise is the most troubling. Electromagnetic interference has long been a blind spot in the design of electronic equipment and systems.
At YBX, we are at the forefront of EMI solutions. As electromagnetic specialists, we improve reliable solutions to reduce the complexity faced by our customers, YBX escorts your EMC testing
Shenzhen Yanbixin Technology Co., Ltd. was established in 2008, is a high-tech enterprise that integrates the production of electromagnetic compatibility (EMC) & power filter (EMI FILTER) products. Through the efforts of our staff for many years, our products have obtained cUL/UL, TUV, CQC, CE, CB, ENEC, ROHS, REACH and other certificates. We have also obtained the ISO9001:2015 quality system to ensure the quality of our products.
The company implements the "quality first, integrity-based" principle of doing things, and on the basis of communication and coordination, it does its best to meet the "technology, quality, price, delivery" needs of customers from all walks of life. We look forward to your support to witness our win-win situation.
The company's products have been widely used in many industries and fields; the company is based on professionalism, is keen on innovation, and has technical cooperation with well-known professional colleges in China! The company officially established a Dongguan production base in 2018 to automate large-scale production; and officially established a Dongguan laboratory to provide various customers with EMC technical rectification and services, and have successively solved many customers' technical problems.
Certifications
50/60Hz IEC C13 Inlet Filter 1A~10A Socket EMI Noise Filter For Home Appliance 13
Custom praise
FAQ

Q1:What is your biggest advantage?



A1:We have a professional filter R&D and production team, which has been focusing on filters for 15 years.

Q2:Can you do OEM?

A2:Yes, if your demand can reach the minimum order quantity of OEM.

Q3:How long will your product be delivered?

A3:7-10 working days Delivery time for samples,15-25 working days Delivery time for samples for bulk product.

Q4:Can I go to see your factory or company?

Q4:You are always welcome to visit our factory.

Q5:Do your products have certification?

Q5:Yes, our products have ISO9001:2015, UL, CE, CB, TUV, ROHS certifications.

Q6:How about the after sale support?

A6:We supply three months free replacement,three years free maintenance, life-long maintenance.
