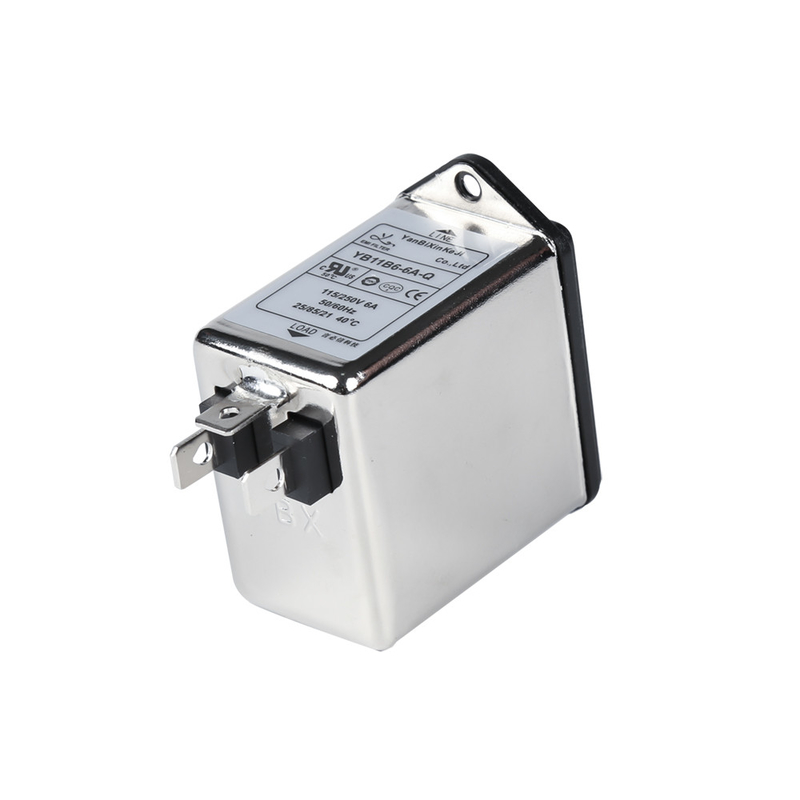

YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter

YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter

250VDC EMI Power Filter

IP40 EMI Power Filter

UL1283 EMI Power Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH

Model Number:

YB11B6-6A-Q

Contact Us

Request A Quote
Product Details
Rated Voltage Max.::
250VAC,50/60Hz
Operating Frequency::
DC To 400Hz
Rated Currents:
1~10A@40°C,50°C(UL/CUL)
L-N::
250VDC(with Lamp)
L/N-G::
2000VAC/2250VDC
L/N-G::
4000VAC(R5 Type)
Inrush Current::
72A
Protection Level::
IP40 According To IEC 60529
Climatic Category::
-25°C~+85°C(25/85/21)
Flammability Corresponding To:
UL 94V-0
Design Corresponding To:
UL1283, CSA C22.2 No.8,IEC/EN 60939, CQC GB 15288/GB 15287-2008
Transfer Function:
Low Pass
Payment & Shipping Terms
Minimum Order Quantity
1000PCS
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
10-20 days
Payment Terms
T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter



YB11B6-6A Fast On IEC Emi Power Filter with Switch for Coffee Equipment



Technical Specification of EMI fiter



Item Emi Power Filter
Model Emi Power Filter YB-B6
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115/250V
Rated Current 1A 3A 6A 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.3uA Max
MOQ 1000pcs
Price Negotiable
Lead Time 5~15 weekday





Typical Applications of EMI fiter



1. Portable electrical and electronic equipment;



2. Medical equipment;



3. Test and measurement equipment;



4. Small and medium-sized machines and household equipment



5. Single-phase power supply,switch-mode power supply



Features of EMI fiter



(1) 2-pole rocker switch



(2) Rated currents up to 10A



(3) Screw fixed on both sides or up-down



(4) Bipolar switch



(5) Special medical equipment (R5) series



(6) Multiple output modes(fast-on,solder and wire)



Rule of Nomination of EMI fiter



YB 11 B6 - 10A - Q ( R 5 G )

¦ ¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional



Tabulates of EMI fiter

Model No. Rated Current
@40°C


Terminal Options* Bleeder resistor(optional)
G
Leakage current 250V/50Hz Electrical Schematic

Rated Voltage(V)  Operating Frequency(Hz)

YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 0 YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 1 YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 2
YB11B6-1A 1A Q S - - - <0.8mA Fig.1 115/250V 50/60Hz
YB11B6-2A 2A Q S - - - Fig.1
YB11B6-3A 3A Q S - - - Fig.1
YB11B6-4A 4A Q S - - - Fig.1
YB11B6-6A 6A Q S - - - Fig.1
YB11B6-8A 8A Q S - - - Fig.1
YB11B6-10A 10A Q S - - - Fig.1





Medical Type Tabulates of EMI fiter

Model No. Rated Current
@40°C


Terminal Options Bleeder resistor(optional)(MΩ) Medical equipment
5

G
Leakage current 250V/50Hz Electrical Schematic

Rated Voltage(V)  Operating Frequency(Hz)

YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 3 YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 4 YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 2
YB11B6-1A-x(R5) 1A Q S - 1 5 - <5μA Fig.3 115/250V 50/60Hz
YB11B6-2A-x(R5) 2A Q S - 1 5 - Fig.3
YB11B6-3A-x(R5) 3A Q S - 1 5 - Fig.3
YB11B6-4A-x(R5) 4A Q S - 1 5 - Fig.3
YB11B6-6A-x(R5) 6A Q S - 1 5 - Fig.3
YB11B6-8A-x(R5) 8A Q S - 1 5 - Fig.3
YB11B6-10A-x(R5) 10A Q S - 1 5 - Fig.3



YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 6*Q: Fast-on 6.35x0.8mm YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 7 S: solder 4.0x0.8mm YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 8 W: UL1015 18awg



Electrical schematic of EMI fiter



Fig.1



Standard type



YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 9



Fig.2



R5 type



YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 10





Fig.3



Lg type

YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 11



Mechanical Dimension(Unit: mm) of EMI fiter



YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 12



Case A B C D E F G H I J K
B6 58 42.5 28.5 60 51 30.5 13 11 12.5 3.5 6.35*0.8
Tolerances
公差
±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15

Insertion loss table(In 50ohm system according IEC/CISPR No.17) of EMI fiter

Common mode -------- differential mode



                                       1A

                                                                                                                                             3A



YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 13 YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 14





                                          6A

                                                                                                                                              8A



YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 15 YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 16



                                         10A



YB-B Series IEC Inlte Filter With Switch 1A 3A 6A 8A EMI Noise Filter 17

Fig.2
