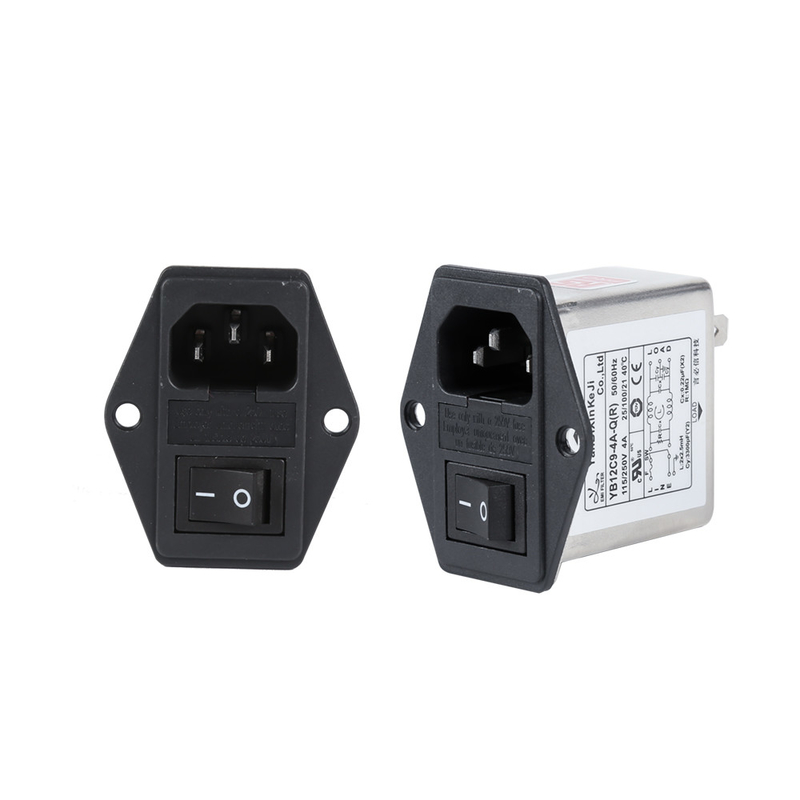

YB12C9-4A-Q Three In One IEC Inlet Filter Power Entry Module Filter

YB12C9-4A-Q Three In One IEC Inlet Filter Power Entry Module Filter

IEC inlet socket 3in1 10A 6A 60dB 250V power entry low pass EMI EMC noise Filter with fuse and switch

Typical Applications of EMI filter:

-- Portable electrical and electronic equipment

-- Medical equipment

-- Test and measurement equipment

-- Small and medium-sized machines and household equipment

Features of EMI filter:

1. 2-pole rocker switch

2. Rated currents up to 10A

3. Single or dual-fuse holder

Rule of Nomination of EMI filter:

YB 11     C9 -   4A -           Q             ( R 5 G )

        ¦       ¦         ¦                ¦                  ¦ ¦ ¦

  circuit case current connection optional

C9:   One Fuse

C10: Two Fuses

Tabulates of EMI filter:

Rated Current @40°C   Terminal Options* Bleeder resistor(optional) G Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V)  Operating Frequency(Hz) Model No. YB11C9-1A 1A Q S - - - <0.8mA Fig.1 115/250V 50/60Hz YB11C9-2A 2A Q S - - - Fig.1 YB11C9-3A 3A Q S - - - Fig.1 YB11C9-4A 4A Q S - - - Fig.1 YB11C9-6A 6A Q S - - - Fig.1 YB11C9-8A 8A Q S - - - Fig.1 YB11C9-10A 10A Q S - - - Fig.1 YB11C10-1A 1A Q S - - - Fig.1 YB11C10-2A 2A Q S - - - Fig.1 YB11C10-3A 3A Q S - - - Fig.1 YB11C10-4A 4A Q S - - - Fig.1 YB11C10-6A 6A Q S - - - Fig.1 YB11C10-8A 8A Q S - - - Fig.1 YB11C10-10A 10A Q S - - - Fig.1

Medical type Tabulates of EMI filter:

Model No. Rated Current @40°C Terminal Options Bleeder resistor(optional (MΩ) Medical equipment 5 G Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V)  Operating Frequency(Hz)   YB11C9-1A-x(R5) 1A Q S - 1 5 - <5μA Fig.2 115/250V 50/60Hz YB11C9-2A-x(R5) 2A Q S - 1 5 - Fig.2 YB11C9-3A-x(R5) 3A Q S - 1 5 - Fig.2 YB11C9-4A-x(R5) 4A Q S - 1 5 - Fig.2 YB11C9-6A-x(R5) 6A Q S - 1 5 - Fig.2 YB11C9-8A-x(R5) 8A Q S - 1 5 - Fig.2 YB11C9-10A-x(R5) 10A Q S - 1 5 - Fig.2 YB11C10-1A-x(R5) 1A Q S - 1 5 - Fig.2 YB11C10-2A-x(R5) 2A Q S - 1 5 - Fig.2 YB11C10-3A-x(R5) 3A Q S - 1 5 - Fig.2 YB11C10-4A-x(R5) 4A Q S - 1 5 - Fig.2 YB11C10-6A-x(R5) 6A Q S - 1 5 - Fig.2 YB11C10-8A-x(R5) 8A Q S - 1 5 - Fig.2 YB11C10-10A-x(R5) 10A Q S - 1 5 - Fig.2

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

An electrical schematic of EMI filter:

Fig.1

                                       Standard type

Fig.2

                                          R5 type

Mechanical Dimension(Unit: mm)

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

Common mode -------- differential mode

                            1A                                                              3A

                            6A                                                              8A

                          10A

The factory pictures

Sample

Sample Fee: Negotiate

Sample Time: 3~5 days

Payment

---Payment terms: Western Union, D/P, T/T,L/C

---Please remember to leave the correct contact information for delivery.

Packaging

Power Line Filter: CTN/96pcs

N/G W.: 9.696/10.83KG

Measures:0.565*0.285*0.225m

FAQ:
Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase RFI filter, house appliance noise filter, Medical equipment filter, inver/converter EMC filter, etc.

Q: How is the quality of your product?
A: All our products have pass UL, TUV, CE, ROHS, ISO9001 approval. which ensures the quality of the product.

Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are supplied before-sale

Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.

Q: What facilities do you have?
A: We have our own laboratory and production base to establish large-scale production.

Q: What the delivery time for 1000pcs of EMI FILTER?
A: Normally 15-20 days, but we can coordinate for a better delivery time if it is urgent.
