Place of Origin:
China
Brand Name:
YBX
Certification:
cUL, TUV, CQC, CE, ROHS
Model Number:
YB16T1-10A-Q
Contact Us
220V 1A~16A Plastic Case EMI Filter Fast-on Terminal Power Filter for Home Appliance
EMI power filters, also called EMI power suppression filters. are an effective way to protect against the harmful impacts of electromagnetic interference. What does an EMI power filter do? When attached to devices or circuits. EMI power filters can suppress electromagnetic noise transmitted through conduction. These filters extract any unwanted current conducted through wiring or cables. while allowing desirable currents to flow freely. So, it is also called an EMI power line filter.
Technical Data Of EMI Filter
| Model no. | YB16T1-10A-Q |
| Rated Voltage Max.: | 115 / 250 VAC |
| Operating frequency: | 50 / 60Hz |
| Rated currents: | 4A |
| Leakage Current: Each line to ground | 115VAC 60Hz |
| 250VAC 50Hz | |
| Hipot Rating : | Line to Ground:2250VDC |
| Line to Line: 500VDC | |
| Climatic category | -25°C~+100°C(25/100/21) |
| Design corresponding to: | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability corresponding to: | UL 94V-0 |
| Package: | Cartons |
Typical Applications
1. Washing machine
2. Refrigerator
3. Vending machine
4. Dishwasher and other white goods
Mechanical Dimension(Unit: mm)

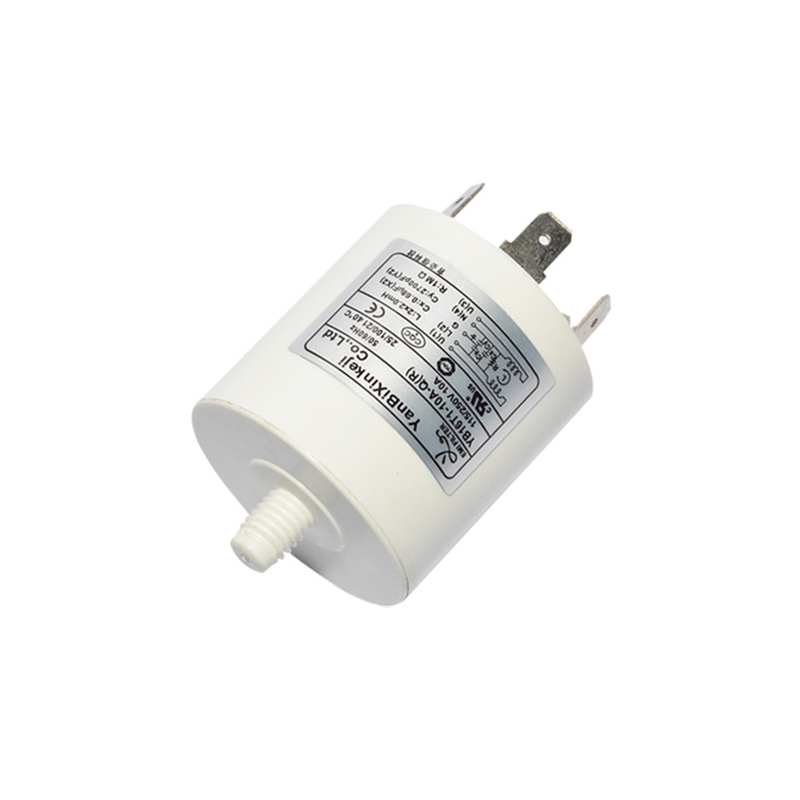

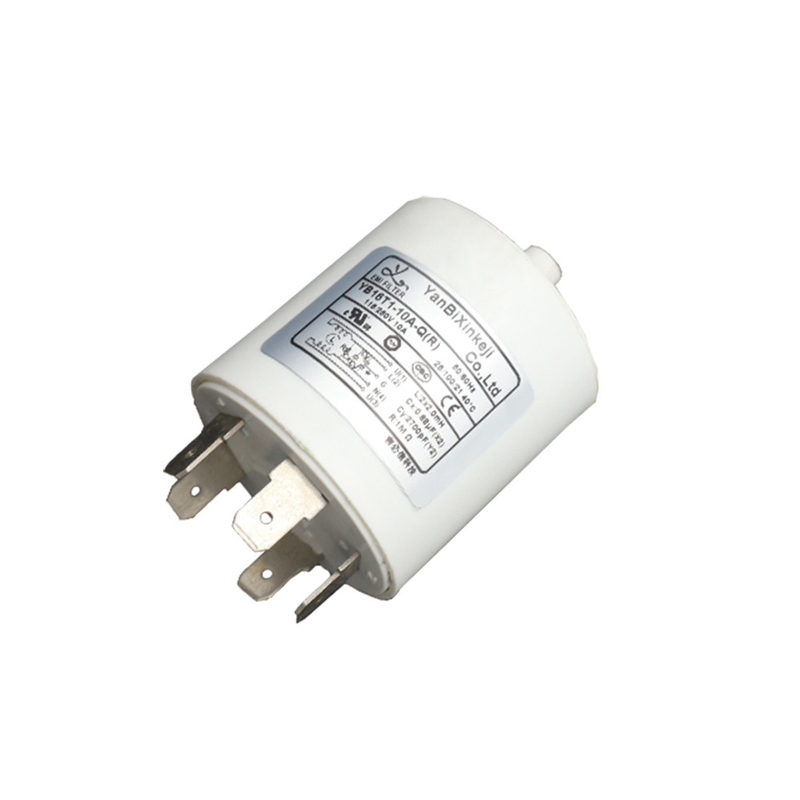

YB16T1-10A-Q(R) EMI Filter Product Picture:
10A 16A
