1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment

1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment

8A Emi Emc Filter

3A Emi Emc Filter

1450VDC emi rfi noise filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, UL, TUV, CQC, CE, ROHS

Model Number:

YB11B3-10A-Q(R)

Contact Us

Request A Quote
Product Details
Item Name:
IEC Inlet Filter With Switch
Input Frequency:
50/60Hz
Current:
1A 3A 6A 8A 10A
Voltage:
115V/250V
Environmental Temperature:
40°C
Line To Line:
1450VDC
Line To Ground:
2000VAC
Working Temperature:
-20℃~+80℃
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
15-25 days
Payment Terms
L/C, T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment



YB-B IEC Inlet Filter:



IEC Inlet Filter Specification:



Item IEC Inlet Filter With Switch
Model YB11B3-10A-Q(R)
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 125VAC 250VAC
Rated Current 1A 3A 6A 8A 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.3uA Max
MOQ 200pcs
Price USD1~2/Meter
Lead Time 5~15 weekday



Features:



1. Excellent performance/compact structure



2. Optional medical versions((R5) type)



3. Quick connect(6.35*0.8mm),solder or wire



4. High performance and high attenuation power filters with IEC 320 socket



5. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing.



6. There are a variety of parts and combinations to meet different customer's EMC tests.



Typical Applications:



-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances.



-- Medical equipment



-- Test and measurement equipment



-- Small and medium-sized machines and household equipment



Rule of Nomination of IEC Inlet Fiter



YB 11 B3 - 10A - Q
| | |   |   |
Single Phase Circuit Dimension   Current   Output Connection
  11:11 circuit B3   6A : 6 amp   Q:fast-on tab 250
        8A : 8 amp   W:wire
        10A :10 amp   S:Solder Lug Terminals

1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment 0*Q: Fast-on 6.35x0.8mm 1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment 1 S: solder 4.0x0.8mm 1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment 2 W: UL1015 18awg



Filter Selection Table:



Part No. Case Rated Currents (A) Output Connections
YB11B3-1A B3 1 Fast-on terminal
YB11B3-3A B3 3

YB11B3-6A

B3 6 Wire
YB11B3-8A B3 8
YB11B3-10A B3 10 Solder Lug Terminals

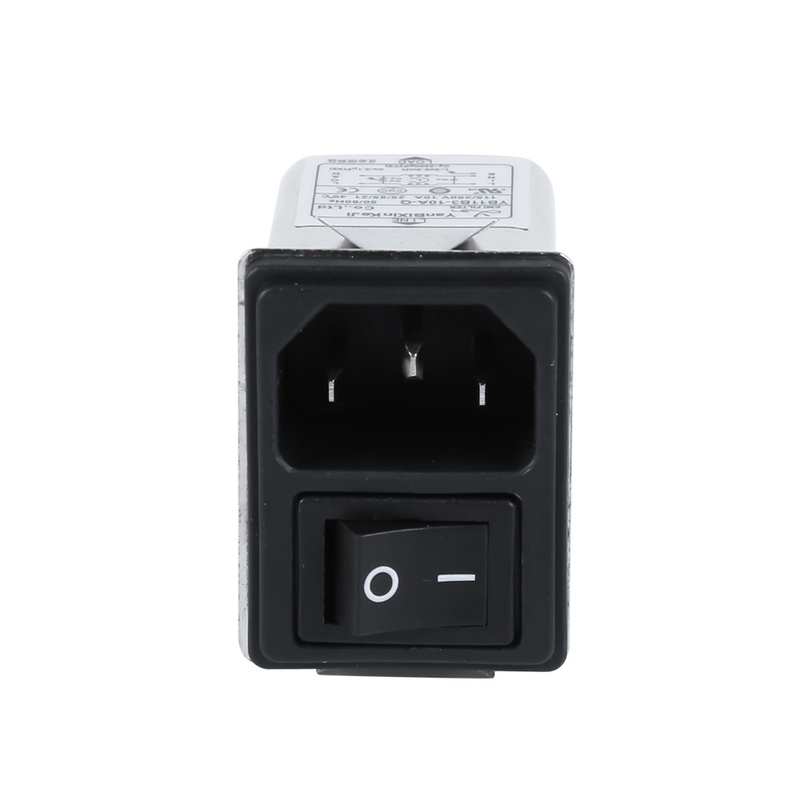

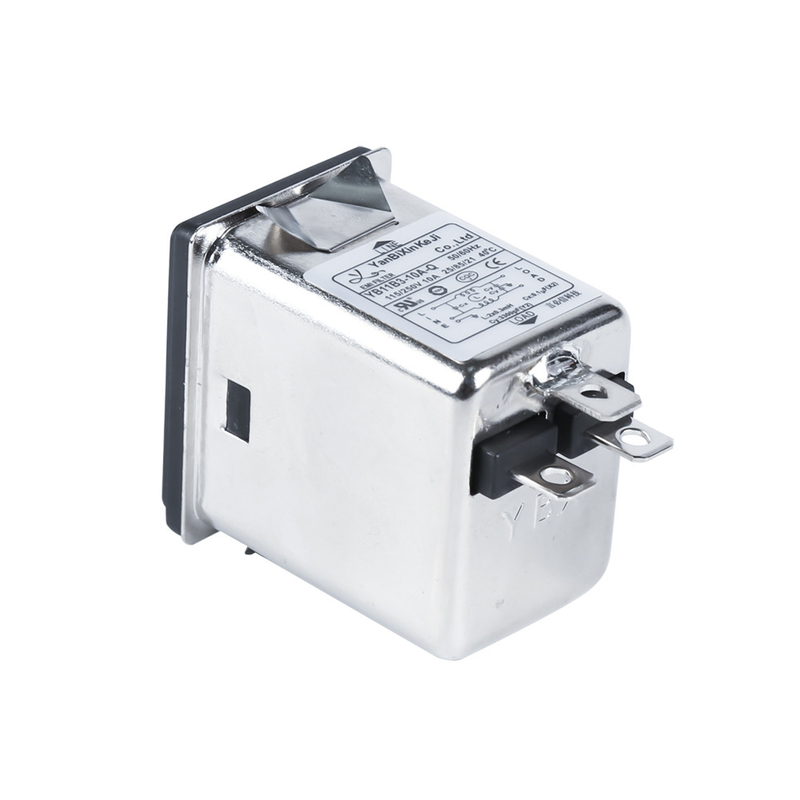

YB11B3-10A-Q(R) Product Picture:



1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment 3



Electrical Schematic:



1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment 4



Mechanical Dimension(Unit: mm)



1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment 51A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment 6



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment 7



Other EMI Filter Series



We have the most complete range of EMI filters, in addition to IEC Inlet Filter and Power Entry Module Filter, we also have single-phase filters, three-phase filters, special EM filters for PC boards and so on, contact us, we have professional technicians to choose the right EMI filters for you, look forward to hearing from.



1A~10A IEC C14 Inlet Filter Plug In AC EMI Filter With Switch For Medical Equipment 8
