IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment

IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment
IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment
IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment

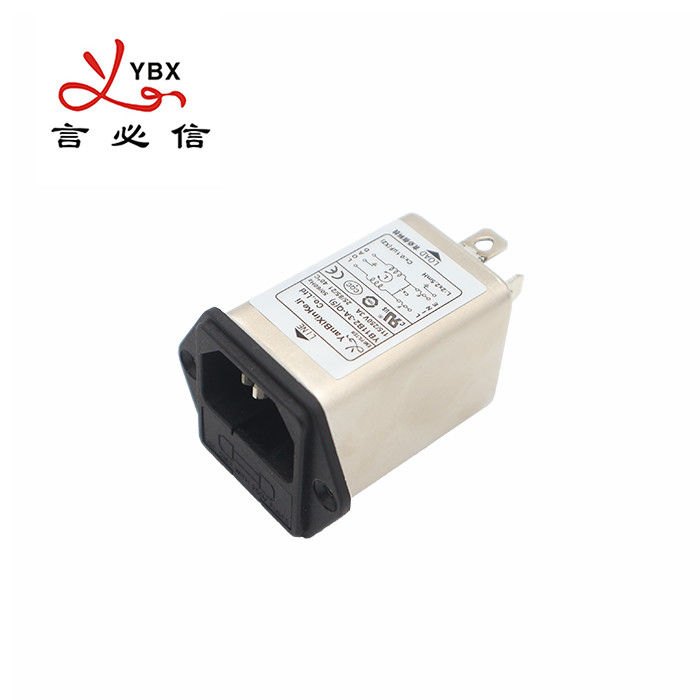

Large Image :  IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment

Product Details:
Place of Origin: China
Brand Name: YBX
Certification: cUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH
Model Number: YB11B6-6A-Q
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 56.5*28.5*22.5cm(one box)
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 500000 Piece/Pieces per Month

IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment

Description
Rated Voltage Max.:: 250VAC,50/60Hz Operating Frequency:: DC To 400Hz
Inrush Current:: 72A Protection Level:: IP40 According To IEC 60529
Flammability Corresponding To: UL 94V-0 Design Corresponding To: UL1283, CSA C22.2 No.8,IEC/EN 60939, CQC GB 15288/GB 15287-2008
High Light:

single phase EMI Power Filter

,

IP40 EMI Power Filter

,

IP40 emi emc filter

Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment



 Description Of EMI Power Filter

Emi filter means the connecter to provide alternating current , make household electrical appliances and portable device for small power. Emi filter is a slot hole or box, using to let the stick or copper prominent power plug inserts, in order to conduct electricity through the plug to the electrical appliances.



Technical Specification of EMI fiter



Item Emi Power Filter
Model Emi Power Filter YB-B6
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115/250V
Rated Current 1A 3A 6A 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.3uA Max
MOQ 1000pcs
Price Negotiable
Lead Time 5~15 weekday





Typical Applications of EMI fiter



1. Portable electrical and electronic equipment;



2. Medical equipment;



3. Test and measurement equipment;



4. Small and medium-sized machines and household equipment



5. Single-phase power supply,switch-mode power supply









Tabulates of EMI fiter

Model No. Rated Current
@40°C


Terminal Options* Bleeder resistor(optional)
G
Leakage current 250V/50Hz Electrical Schematic

Rated Voltage(V)  Operating Frequency(Hz)

IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 0 IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 1 IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 2
YB11B6-1A 1A Q S - - - <0.8mA Fig.1 115/250V 50/60Hz
YB11B6-2A 2A Q S - - - Fig.1
YB11B6-3A 3A Q S - - - Fig.1
YB11B6-4A 4A Q S - - - Fig.1
YB11B6-6A 6A Q S - - - Fig.1
YB11B6-8A 8A Q S - - - Fig.1
YB11B6-10A 10A Q S - - - Fig.1





Medical Type Tabulates of EMI fiter

Model No. Rated Current
@40°C


Terminal Options Bleeder resistor(optional)(MΩ) Medical equipment
5

G
Leakage current 250V/50Hz Electrical Schematic

Rated Voltage(V)  Operating Frequency(Hz)

IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 3 IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 4 IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 2
YB11B6-1A-x(R5) 1A Q S - 1 5 - <5μA Fig.3 115/250V 50/60Hz
YB11B6-2A-x(R5) 2A Q S - 1 5 - Fig.3
YB11B6-3A-x(R5) 3A Q S - 1 5 - Fig.3
YB11B6-4A-x(R5) 4A Q S - 1 5 - Fig.3
YB11B6-6A-x(R5) 6A Q S - 1 5 - Fig.3
YB11B6-8A-x(R5) 8A Q S - 1 5 - Fig.3
YB11B6-10A-x(R5) 10A Q S - 1 5 - Fig.3



IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 6*Q: Fast-on 6.35x0.8mm IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 7 S: solder 4.0x0.8mm IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 8 W: UL1015 18awg



Electrical schematic of EMI fiter



Fig.1



Standard type



IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 9



Fig.2



R5 type



IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 10





Fig.3



Lg type

IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 11



Mechanical Dimension(Unit: mm) of EMI fiter



IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 12



Case A B C D E F G H I J K
B6 58 42.5 28.5 60 51 30.5 13 11 12.5 3.5 6.35*0.8
Tolerances
公差
±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15

Insertion loss table(In 50ohm system according IEC/CISPR No.17) of EMI fiter

Common mode -------- differential mode



                                       1A

                                                                                                                                             3A



IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 13 IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 14





                                          6A

                                                                                                                                              8A



IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 15 IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 16



                                         10A



IP40 Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment 17

Fig.2
