High Performance Low Pass EMI Power Filters 6A 10A Mechanical Equipment

Place of Origin China
Brand Name YBX
Certification CUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH
Model Number YB22D4-10A-S
Minimum Order Quantity 500PCS
Price Negotiable
Packaging Details 56.5*28.5*22.5cm(one box)
Delivery Time 5-8 Work Days
Payment Terms T/T
Supply Ability 500000 Piece/Pieces per Month
Product Details
Product Name Low Pass EMI Filter Insertion Loss 30-100dB
Input Impedance 50ohm Rated Voltage 115/250VAC
Temperature Range -25℃~85℃ Line To Line 500VDC
Line To Ground 2250VDC Nominal Center Frequency 50/60Hz
High Light

High Performance Low Pass EMI Filter

,

6A EMI Power Filters Mechanical Equipment

,

EMI Power Filters 50Hz

Leave a Message
Product Description

High Performance Low Pass EMI Filter 6A 10A Mechanical Equipment Power Filters



1.Product Description



Item Name Low Pass EMI Filter
Model YB22D3-10A-S
Transfer Function Low Pass
Package Type Surface Mount/Bolts Mount
Nominal Center Frequency 150K-30MHZ
Rated Voltage 115V/250V
Rated Current 1~10A
Temperature Range -25℃~+85℃
Operating Frequency 50/60HZ
Line to Line 500VDC
Line to Ground 2250VDC
MOQ 1000pcs
Price Ask customer service
Lead Time 5~20 weekday

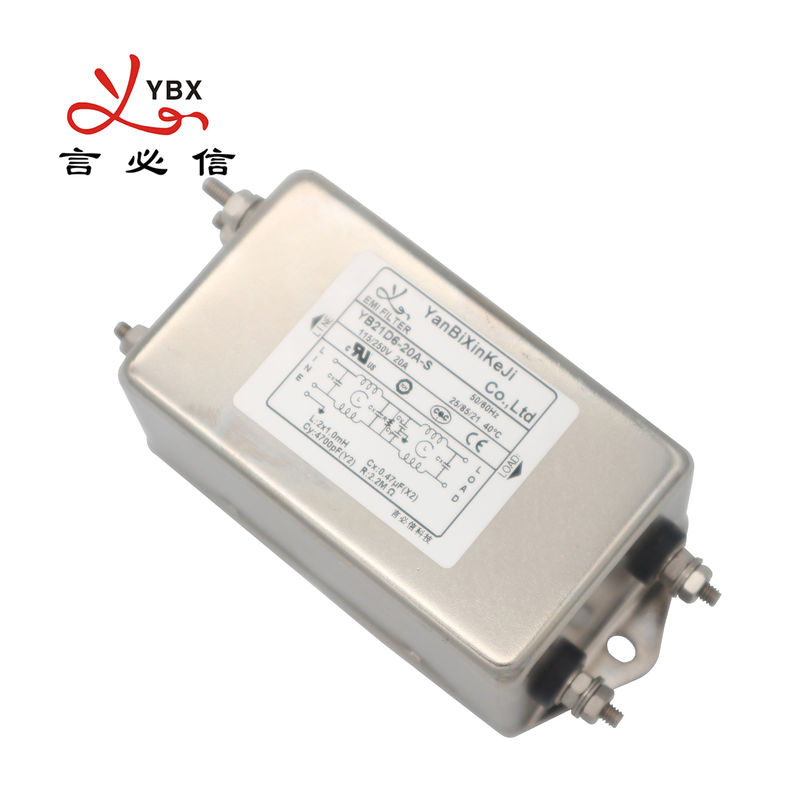

Product picture:



High Performance Low Pass EMI Power Filters 6A 10A Mechanical Equipment 0



Physical Dimensional:



High Performance Low Pass EMI Power Filters 6A 10A Mechanical Equipment 1

High Performance Low Pass EMI Power Filters 6A 10A Mechanical Equipment 2





Electrical schematic:



High Performance Low Pass EMI Power Filters 6A 10A Mechanical Equipment 3



3.Application Field



--LED lighting equipment

--Computer supporting equipment

--Financial equipment

--Testing and measuring instruments

--Household electrical equipment

--Fitness equipment



High Performance Low Pass EMI Power Filters 6A 10A Mechanical Equipment 4



4.About us



Shenzhen Yanbixin Technology Co., Ltd. is a national high-tech enterprise integrating electromagnetic compatibility (EMC)& EMI FILTER product research and development, production and sales.



After more than 10 years of efforts, the products have been CUL/UL, TUV, CQC, CE, CB, ENEC, ROHS, REACH and other certifications and patents, many products, complete specifications, in order to ensure quality, in strict accordance with the GJB9001C-2017 military standard system standard production.



Products are divided into AC, DC, military, harmonic, pulse group, signal and other specifications of filters; In medical, home appliances, elevators, sports equipment, instrumentation, automation equipment, Internet of Things equipment, communication equipment, new energy vehicles, high-speed rail, aircraft, ships, security equipment and other industries and fields have been widely used.



High Performance Low Pass EMI Power Filters 6A 10A Mechanical Equipment 5



5.Certification



We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other certifications.



High Performance Low Pass EMI Power Filters 6A 10A Mechanical Equipment 6



6.FAQ



Q1: Do you support custom products?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q2: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 15 years of production experience.

Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.

Q5: What certifications do you have for your products?
A: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
