YB11A1-10A-Q5 Low Pass Single Phase EMI Filter Socket EMI Power Filter

YB11A1-10A-Q5 Low Pass Single Phase EMI Filter Socket EMI Power Filter

Socket EMI Power Filter

Low Pass Single Phase EMI Filter

Single Phase EMI Filter 2250VDC

Place of Origin:

China

Brand Name:

YBX

Certification:

CUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH

Model Number:

YB11A1-10A-Q(5)

Contact Us

Request A Quote
Product Details
Filter Name:
Socket EMI Power Filter
Type:
EMI Filter
Nominal Center Frequency:
50/60Hz
Transfer Function:
Low Pass
Insertion Loss:
50ohm
Rated Voltage:
120/250VAC
Rated Current:
1A~10A
Package Type:
Surface Mount
Payment & Shipping Terms
Minimum Order Quantity
1000PCS
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
5-8 Work Days
Payment Terms
T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

YB11A1-10A-Q(5) Socket EMI Power Filter Low Pass Filter Single Phase Filter



YB11A1-10A-Q5 Low Pass Single Phase EMI Filter Socket EMI Power Filter 0

1.Product Details



Product Name Socket EMI Power Filter
Model YB11A1-10A-Q(5)
Transfer Function Low Pass
Package Type Surface Mount/Bolts Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 30~90dB
Input Impedance 50Ω
Rated Voltage 120V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range -25℃~+85℃
Operating Frequency 50/60HZ
Line to Line 500VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 7mA Max
MOQ 500pcs
Packing of one box 56.5*28.5*22.5cm
Lead Time 5~20 weekday

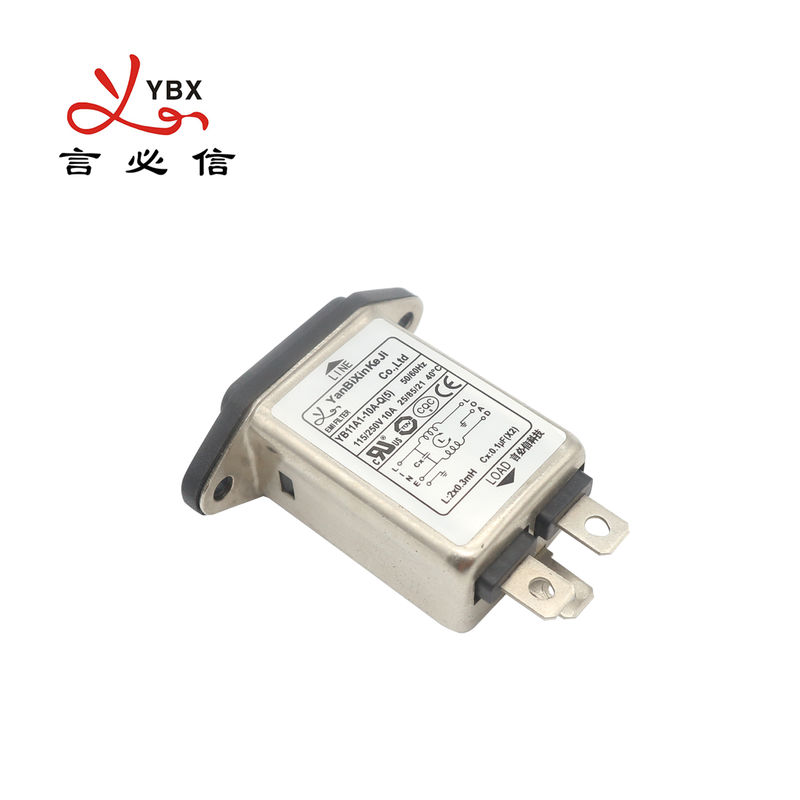

Product Picture:

YB11A1-10A-Q5 Low Pass Single Phase EMI Filter Socket EMI Power Filter 1YB11A1-10A-Q5 Low Pass Single Phase EMI Filter Socket EMI Power Filter 2

Physical Dimensional:



YB11A1-10A-Q5 Low Pass Single Phase EMI Filter Socket EMI Power Filter 3

YB11A1-10A-Q5 Low Pass Single Phase EMI Filter Socket EMI Power Filter 4


Electrical Schematic:

YB11A1-10A-Q5 Low Pass Single Phase EMI Filter Socket EMI Power Filter 5

2.Application Field

--LED lighting equipment
--Computer supporting equipment
--Financial equipment
--Testing and measuring instruments
--Household electrical equipment
--Fitness equipment
--Mechanical and electrical products
--Medical equipment
--Medical beauty instruments
--New energy vehicles

YB11A1-10A-Q5 Low Pass Single Phase EMI Filter Socket EMI Power Filter 6

3.Certification

We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other certifications.

YB11A1-10A-Q5 Low Pass Single Phase EMI Filter Socket EMI Power Filter 7
4. FAQ

Q1: What is the price of the EMI Filter?
A1: The price of the product will be determined by the order quantity and the specific model.


Q2: Are you a factory or a trader?
A2: We are a manufacturer of EMI filters with 15 years of production experience.


Q3: How long is the delivery time?
A3: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.


Q4: How about the payment terms?
A4: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.


Q5: What certifications do you have for your products?
A5: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
