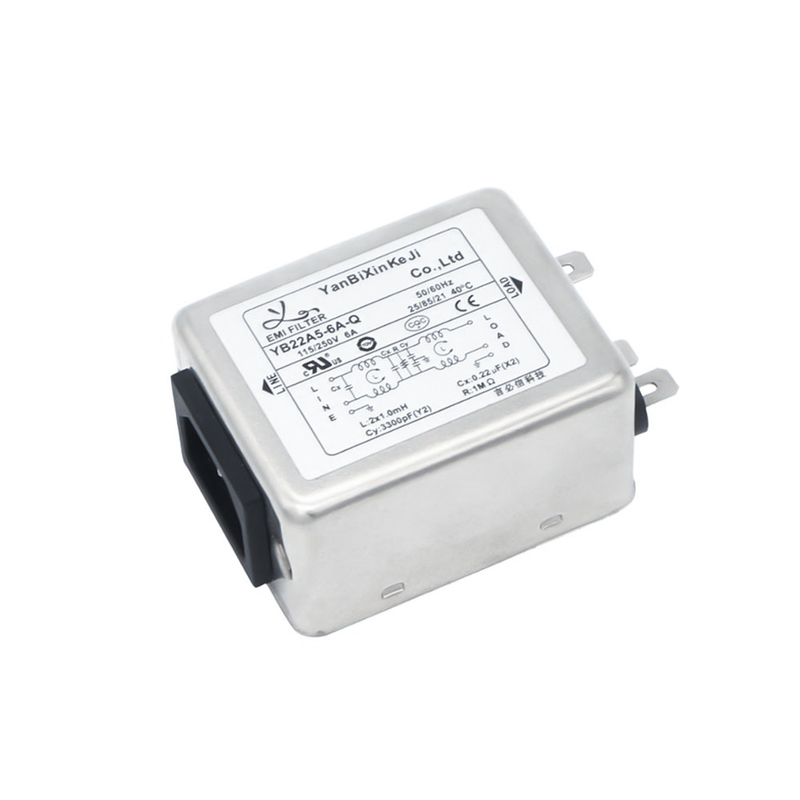

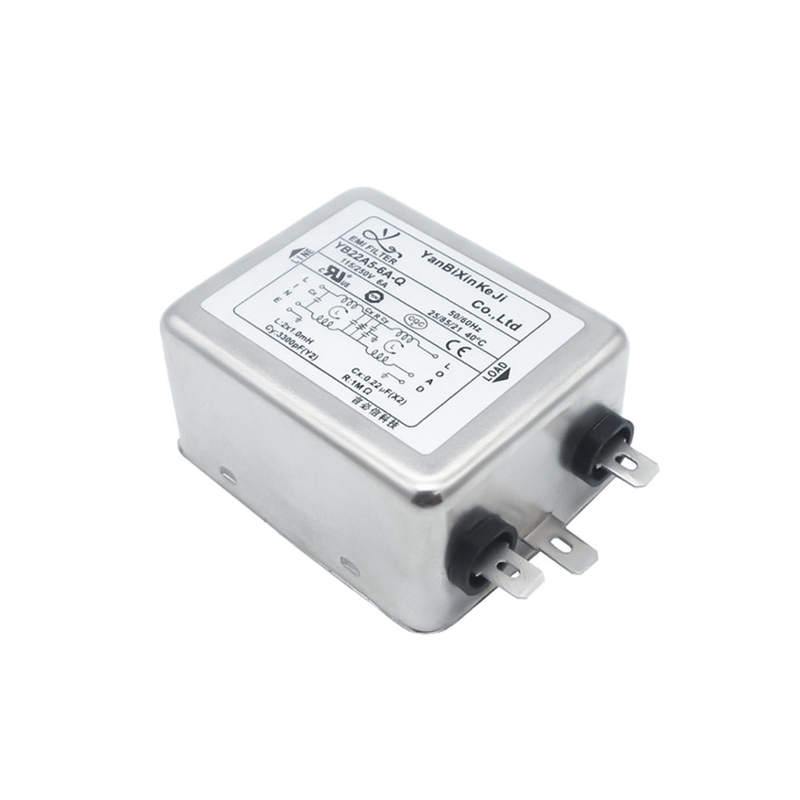

Dual Stage IEC Inlet Filter 220V 6A Single Socket EMI Filter For Power Switch

Dual Stage IEC Inlet Filter 220V 6A Single Socket EMI Filter For Power Switch

Place of Origin:

China

Brand Name:

YBX

Certification:

CUL,TUV,CQC,CE,ROHS,CB

Model Number:

YB22A5-6A-Q(R)

Contact Us

Request A Quote
Product Details
Product Name:
Dual-stage IEC Inlet Filter
Frequency:
50/60Hz
Insulation Resistance:
50MΩ
Rated Voltage:
110V/250V
Rated Current:
1A,3A,6A,8A,10A
Insertion Loss:
30-100dB
Case:
Metal
Package Type:
Surface Mount
Payment & Shipping Terms
Minimum Order Quantity
200PCS
Price
Negotiable
Delivery Time
5-8 Work Days
Payment Terms
T/T, L/C
Supply Ability
500000 Piece/Pieces per Month
Product Description

YB22A5-6A-Q Dual Stage IEC Inlet Filter 220V 6A Single Socket EMI Filter For Power Switch



YB22A5-6A-Q IEC Inlet Filter:



YB11A5-6A-Q is the two-stage IEC inlet filter, reinforced circuit design with excellent filtering effect, single socket, easy and quick installation. Rated voltage: 110V/250V, Rated current: 1A,3A,6A,8A,10A.



Technical Specification:



Item Emi Power Filter
Model YB22A5-6A-Q
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 125VAC 250VAC
Rated Current 1A 3A 6A 8A10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.2mA Max
MOQ 200pcs
Price USD1~2/Meter
Lead Time 5~15 weekday



Features Of IEC Inlet Filter:



1.Excellent performance/compact structure



2.Optional medical versions((R5) type)



3.Quick connect(6.35*0.8mm),solder or wire



4.High performance and high attenuation power filters with IEC 320 socket



5.(R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing.



6.There are a variety of parts and combinations to meet different customer's EMC tests.



Typical Applications:



-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances.



-- Medical equipment



-- Test and measurement equipment



-- Small and medium-sized machines and household equipment



Rule of Nomination:



YB 22 A5 - 6A - Q
| | |   |   |
Single Phase Circuit Dimension   Current   Output Connection
  22 : 22 circuit A5   3A : 3 amp   Q:fast-on tab 250
        6A : 6 amp   W:wire
        8A :8amp   S:Solder Lug Terminals

Dual Stage IEC Inlet Filter 220V 6A Single Socket EMI Filter For Power Switch 0*Q: Fast-on 6.35x0.8mm Dual Stage IEC Inlet Filter 220V 6A Single Socket EMI Filter For Power Switch 1 S: solder 4.0x0.8mm Dual Stage IEC Inlet Filter 220V 6A Single Socket EMI Filter For Power Switch 2 W: UL1015 18awg



Filter Selection Table:



Part No. Case Rated Currents (A) Output Connections
YB22A5 A5 1 Fast-on terminal
YB22A5 A5 3
YB22A5 A5 6 Wire
YB22A5 A5 8
YB22A5 A5 10 Solder Lug Terminals



YB22A5-6A-Q EMI Filter Actual Picture:



Dual Stage IEC Inlet Filter 220V 6A Single Socket EMI Filter For Power Switch 3



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



Dual Stage IEC Inlet Filter 220V 6A Single Socket EMI Filter For Power Switch 4



Measuring Equipment



Before production begins, we test the raw materials in our laboratory to ensure they meet our quality standards, environmental friendliness and safety. Salt spray tester, constant temperature and humidity tester, and pressure tester are some of the testing equipment we use to ensure the quality of our EMI filters from the source.



Dual Stage IEC Inlet Filter 220V 6A Single Socket EMI Filter For Power Switch 5
