YB22D4 Two-stage Singel Phase Filter 250V 15A Ehanced EMI Noise Filter For Electronic Equipment

YB22D4 Two-stage Singel Phase Filter 250V 15A Ehanced EMI Noise Filter For Electronic Equipment

Place of Origin:

China

Brand Name:

YBX

Certification:

CQC UL CB TUV ROHS

Model Number:

YB22D4-15A-S

Contact Us

Request A Quote
Product Details
Product Name:
Two-stage Emi Noise Filter
Rated Current:
3A~30A
Rated Voltage:
115/250VAC
Frequency:
50/60Hz
Input Impedance:
50Ω
Package Type:
Surface Mount
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
5-8 work day
Payment Terms
T/T, L/C
Supply Ability
60000 Pieces/month
Product Description

YB22D4 Two-stage Singel Phase Filter 250V 15A Ehanced EMI Noise Filter For Electronic Equipment



YBX offers the widest selection of EMC/EMI filters in the world. Standardized and customer-specific solutions - with full engineering support - help to meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.



Technical Specification:



Item Single Phase EMI Noise Filter
Model YB22D4-15A-S
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 3~50A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max



Features:



-- Rated currents from 1 to 10A



-- General purpose filtering performance



-- Optional medical versions((R5) type)



-- Customized products according to customer's requirements.



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Datacom equipment



-- Office automation equipment



Filter Selection Table:



Part No. Case Rated Currents (A) Output Connections
YB22D4-3A D4 3 Fast-on terminal
YB22D4-6A D4 6
YB22D4-10A D4 10 M4/M6/M8 Screw
YB22D4-15A D4 15
YB22D4-20A D4 20 Wire



YB22D4 Two-stage Singel Phase Filter 250V 15A Ehanced EMI Noise Filter For Electronic Equipment 0*Q: Fast-on 6.35x0.8mm YB22D4 Two-stage Singel Phase Filter 250V 15A Ehanced EMI Noise Filter For Electronic Equipment 1S: Screw lug YB22D4 Two-stage Singel Phase Filter 250V 15A Ehanced EMI Noise Filter For Electronic Equipment 2W: UL1015 18awg



Tabulates:



Model No. Rated Current
@40°C
Terminal Options* Bleeder resistor(optional) Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)

YB12D1-3A 3A Q - W - <0.8mA Fig.1 115/250V 50/60Hz
YB12D1-6A 6A Q - W - Fig.1
YB12D2-6A 6A Q S W - Fig.1
YB12D2-8A 8A Q S W - Fig.1
YB12D2-10A 10A Q S W - Fig.1
YB12D2-15A 15A Q S - - Fig.1
YB12D2-20A 20A Q S - - Fig.1
YB12D3-10A 10A Q S W - Fig.1
YB12D3-15A 15A Q S - - Fig.1
YB12D3-20A 20A Q S - - Fig.1
YB12D4-30A 30A - S - - Fig.1
YB12D5-30A 30A - S - - Fig.1



Electrical Schematic & Mechanical Dimension(Unit: mm)



YB22D4 Two-stage Singel Phase Filter 250V 15A Ehanced EMI Noise Filter For Electronic Equipment 3

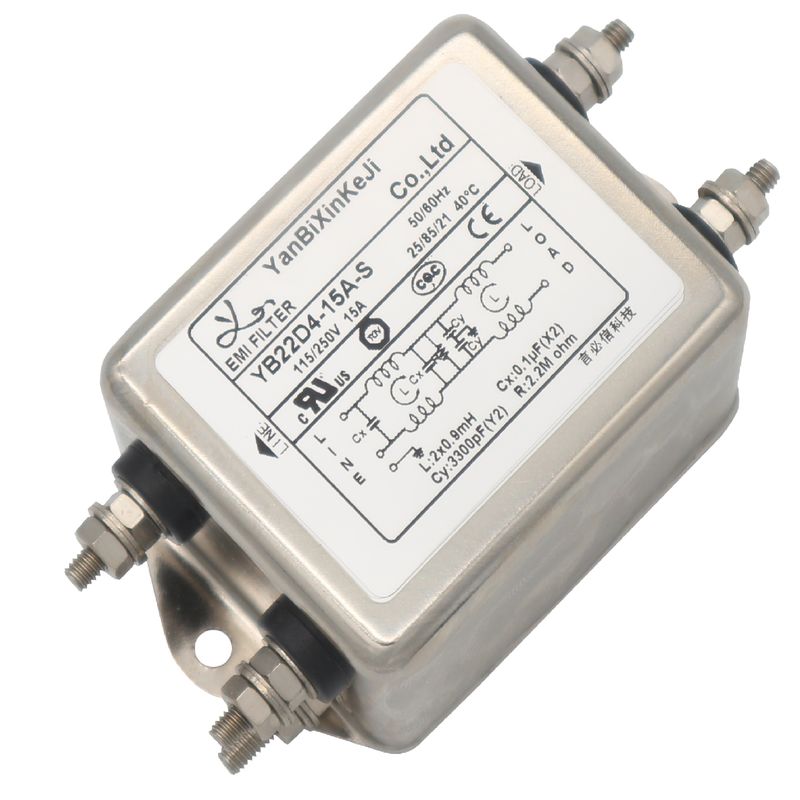

YB22D4-15A-S EMI Filter Picture:



YB22D4 Two-stage Singel Phase Filter 250V 15A Ehanced EMI Noise Filter For Electronic Equipment 4


Insertion loss table(In 50ohm system according IEC/CISPR No.17)



YB22D4 Two-stage Singel Phase Filter 250V 15A Ehanced EMI Noise Filter For Electronic Equipment 5
