220V EMI Filter High Performance Dual-Stage Single Phase Filter For Surgical Equipment
Two-stage Single Phase Filter:
YB22D3-8A-Q is the single phase filter. Excellent high/low frequency noise attenuation with enhanced filtering design. Fast terminal output filter, compact and easy to install. Rated current: 1A~10A, rated voltage: 110V/250V.
Product Parameters:
| Product name | Dual-stage Single Phase Filter |
| Model | YB22D3-8A-Q |
| Rated Current | 1A-10A |
| Rated Voltage | 110VAC/250VAC |
| Frequency | 50/60HZ |
| Test Voltage | 1450VDC(line to line) ,2250VAC (line to ground) |
| Insulation Resistance | 50Ω |
| Transfer Function | Low pass |
| Temperature Range | -25°C~+85°C |
| Customization | MOQ≥3000 pcs can be customized |
| Warranty | 180 Days |
Naming Rule:
| YB | 22 | D3 | - | 8A | - | Q |
| | | | | | | | | | | ||
| Single Phase | Circuit | Dimension | Current | Output Connection | ||
| 22:22 circuit | D3 | 6A :6 amp | Q:fast-on tab 250 | |||
| 8A :8 amp | W:wire | |||||
| 10A :10 amp | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg
Single Phase Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB22D3 | D3 | 1 | Fast-on terminal |
| YB22D3 | D3 | 3 | |
| YB22D3 | D3 | 6 | Wire |
| YB22D3 | D3 | 8 | |
| YB22D3 | D3 | 10 | Solder Lug Terminals |

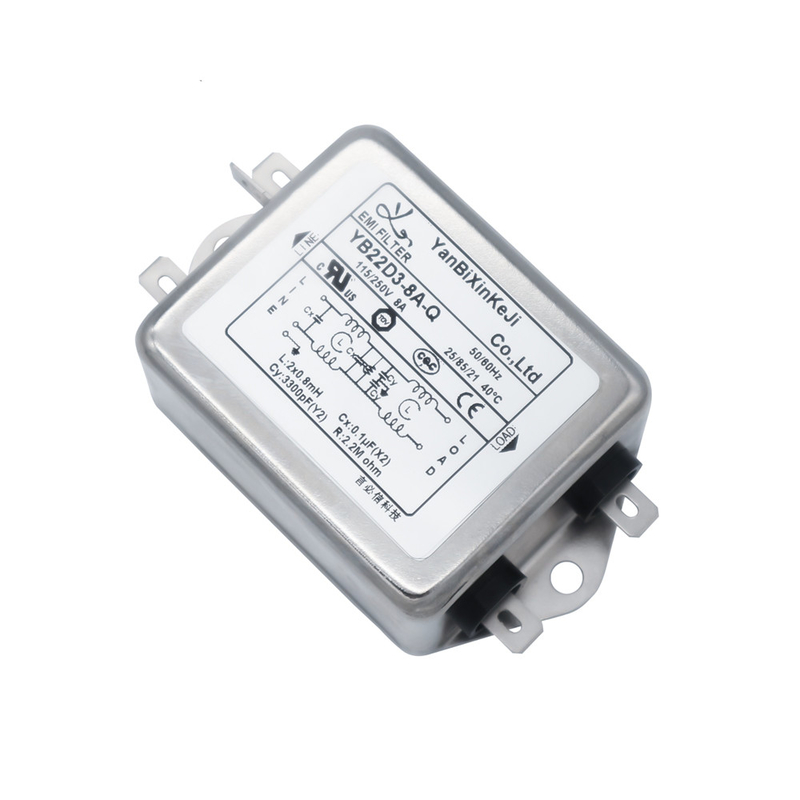

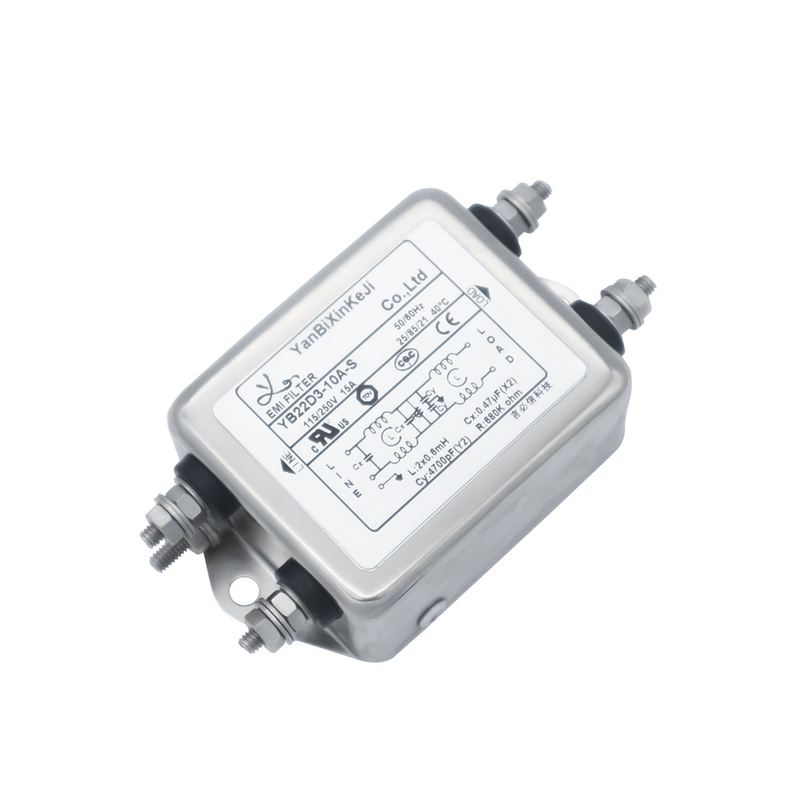

YB22D3-10A-Q Product Picture:
Features Of YB-D Single Phase Filter:
1. High attenuation, broad-band
2. Excellent high/low frequency noise attenuation
3. Designed for enhanced filtering
4. For symmetry and asymmetric interference attenuation
Application Fields:
-- Home appliances
-- Medical equipment
-- Lighting equipment
-- Fitness equipment
-- Communication equipment
Physical Dimension Diagram & Circuit Diagram
1. Customized:We have a professional R&D team; our aims is we won't let customers spend any extra money.
2. Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.
3. Rectification test: We cooperate with top scientific research laboratories to provide free EMC rectification technical support, samples; and free conduction test.
4. Scale production:Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement within three months, free maintenance within six years, life-long maintenance!
